INSTALLATION GUIDE
9dLD Locator, Version D
4.

Mount the 9dLD Box

If 9dLD is mounted higher than 2m, it is critical that the locator is securely and firmly attached
to a wall. No cable entries must be directed downwards.
To attach the locator rear case onto the wall or ceiling, follow the below-mentioned
recommendations:
• Use 4 pieces of pan head screws.
• For all wall (except for plywood and solid wood) use an anchor that is intended for the
material and screw in question. If an anchor is used, the length of the screw must be approx.
10 mm longer than the anchor.
• Make sure that there is a significant increase of the required torque when the screws are
fully engaged.
• Test that the 9dLD is securely attached by firmly pull it from the wall.
When 9dLD box is chosen with internal antenna, recommended mounting height is equal to
carrying height of the handset, about 1.5 m (1.2 - 1.8 m). For mounting with external antennas,
refer to the DECT Location Version C and D, Function Description, TD 92629EN.
It is also recommended to mount the 9dLD box no more than 10 m of cable length from
external antennas, if such are used. This is due to attenuation in cable, appr. 0.8 dB per metre
of cable.
Regardless chosen antenna configuration, the 9dLD box should be mounted where electrical
power is accessible.
1 Open the plastic case by removing the four screws on the cover plate.
2 Fasten the back plate of the case on the desired surface with four screws, see
Figure 2. Mounting dimensions
NOTE: The 9dLD antennas have to be mounted within the coverage area of the
DECT system. See DECT Location Version C and D, Function Description,
TD 92629EN for more information.

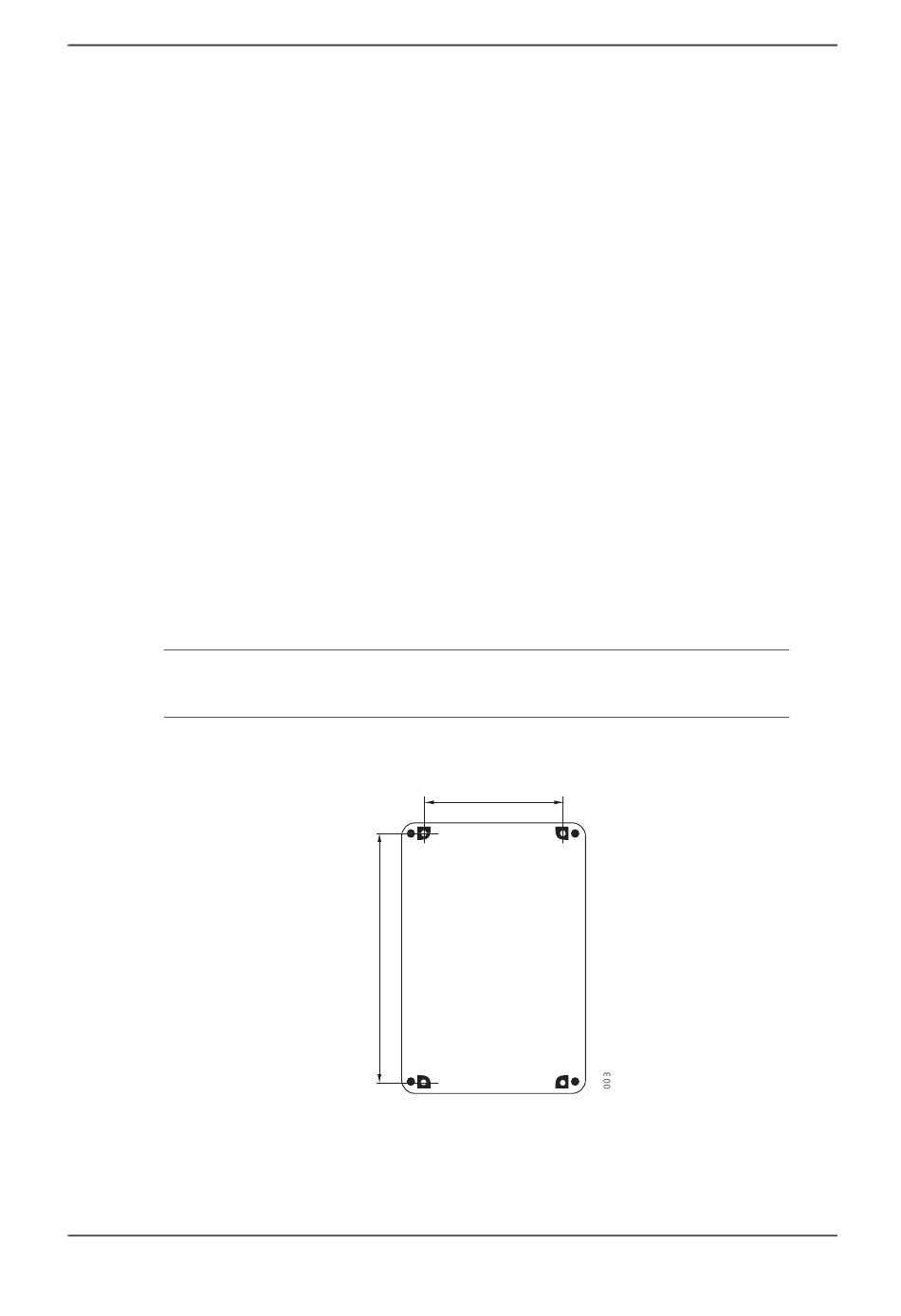

Figure 2. Mounting dimensions
TD 92775EN / 14 December 2020 / Ver. D
on page 5 for mounting dimensions.
90 mm
148 mm
5
