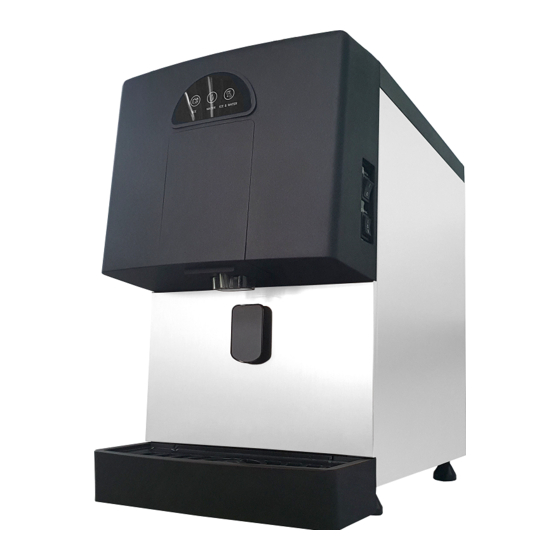

Ice / Water Dispenser
User's Manual
MODEL : ID-0160-AN
※ This machine cannot be used in any other country
where the electric voltage for its power supply is not available.
※ This product is designed for indoor installation.
Please be sure to install it indoors.
※ The external appearance, design, color, and/or components
of this machine may be changed without prior notice for the sake
of the Company's product manufacture.
※ Please read the preparations for safety.
※ For maximum hygiene, be sure to clean and sterilize the product
on a daily basis.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for icetro ID-0160-AN
Summary of Contents for icetro ID-0160-AN
- Page 1 Ice / Water Dispenser User's Manual MODEL : ID-0160-AN ※ This machine cannot be used in any other country where the electric voltage for its power supply is not available. ※ This product is designed for indoor installation. Please be sure to install it indoors.
-
Page 2: Table Of Contents
INDEX 1. Safety Precautions 2. Product Specification 3. Appearance and Size 9~10 11~15 4. How to install 11~12 - The installation place - How to Disassemble the Panel - Connection method for water supply and drainage - About grounding 16~19 5. -
Page 3: Safety Precautions
1. Safety Precautions When there is a risk of causing physical problems such as death or serious injury Warning in the event of improper use. When injury or damage to property such as house or furniture may occur Caution in the event of improper use. SHOULD BE DONE PROHIBITION DO NOT... - Page 4 Warning Do not place heavy objects or containers containing water on the ice maker. ◆ The objects or containers may fall and cause water to leak and the insulation may be weakened, resulting in a fire due to a short circuit. Do not install the product in a humid place or where there is a risk of water splashing.
- Page 5 Warning Disassembly forbidden Do not modify or repair the product yourself. ◆ Ignition or abnormal operation is dangerous and may cause more trouble. Prohibition Do not allow electrical cords or plugs to be pinched or twisted. ◆ The cord or plug may be peeled and there is a risk of fire or electric shock.
- Page 6 Warning Disconnect power plug When not in use for a long time, remove ice and water (to prevent winter frost), and unplug the power cord from the outlet. Disconnect power plug When cleaning dust or replacing parts, unplug the power plug first. ◆...
- Page 7 Caution Caution If there is a risk of slippery water or oil on the floor near the ice maker, please wipe it. ◆ There is a risk of injury if you slip on the ice maker or get hands or feet in the bottom of the side. Hand over When transferring this ice maker to another person, please hand it along with the instruction manual...
-
Page 8: Product Specification
2. Product Specification Specification Category Model ID-0160-AN Ice shape Nugget ※ Maximum capacity Ambient temperature 50℉, 160 lb/day (73kg/day) Water temperature 50℉ Storage capacity 6.2lb (2.8kg) ※ Size (W X D X H) 13.8" X 23.8" X 22.8" - Foot excluded... -
Page 9: Appearance And Size 9~10
3. Appearance and Size Front Rear 13.8"(350mm) 13.8 Display panel Ice exit Water inlet Ice discharge lever Drain outlet Drain box Height-adjustable feet Bottom Upper vent... - Page 10 Left 좌 측 면 Bottom filter 우 측 면 Right Power switch Ice making/wash switch Drain outlet(drain box)
-
Page 11: How To Install 11~15
4. How to install The installation place is like this ... ⊙ Where there is no heat source ... Install in a place where there is no heating device such as ◆ a fireplace or a gas range, and do not install in an area outside the range of 50~100℉. - Page 12 ⊙ Where good ventilation is secured... If the ventilation is poor, the ICE MAKING ◆ ability will decrease. ⊙ Installation is on a flat ... Unstable installation may cause vibration and noise. ◆ (Installed within 1˚) It is recommended to install it on a flat surface because ◆...
-
Page 13: How To Disassemble The Panel
How to Disassemble the Panel 1. Top Panel: Loosen the 2 rear screws, push the top panel back, and lift it up to disassemble. Side Panels: Remove the front drain box and the top panel, loosen the front and rear lower screws, and then spread the bottom left and right, then lift up to separate. -
Page 14: Connection Method For Water Supply And Drainage
Connection method of water supply and drainage [ Connection of water and drainage hoses ] Division Proper water temperature Water pressure Hose to be used ICE MAKING water supply 50~90℉ 20~80psi NPT 3/8" ICE MAKING drainage NPTF 3/4" If the temperature of the ICE MAKING water supply is too high, the amount of ICE MAKING may be reduced, If the water pressure is too low, it may not be possible to freeze. -
Page 15: About Grounding
About grounding ※ Please be sure to ground to prevent electric shock. ⊙ Grounding method - When there is a grounding Grounding POWER terminal terminals OUTLET In case of plugging the icemaker into an power Grounding outlet equipped with a grounding terminal, extra is not needed grounding is unnecessary. ⊙ Grounding method - When there is a grounding terminal Ground wire In case of plugging the icema ker into an p ower... -
Page 16: How To Start The Product 16~19
5. How to start the product ⊙ Water supply hose protection Do not place heavy objects on the water supply hose leading to the water supply, or keep the hose from treading. ⊙ Proper water pressure, water temperature, ambient temperature Water pressure: 20~80psi Please use this ice maker only in the area where water Water temperature: 50~90℉... -
Page 17: Button Operation
Button Operation WATER ICE & WATER ICE button lamp - If you turn on the power, this will always come in first. The initial water subtraction is done three times and then the ICE MAKING operation is proceeded. If you put the cup in the ice exit, you can discharge the ice for the time set in F1. WATER button lamp - Press the button to light up. -
Page 18: Function Button Description (Fnd Display Window)
Function Button Description (FND Display Window) F. 1 (Maximum Discharge Time) ① SOLENOID Maximum operating time adjustment function. ② 3rd, 4th digits: 20 seconds (5 seconds ~ 30 seconds, Set Unit of one second). F. 2 (Complete removal of ice in the reservoir) ①... -
Page 19: Three Drainage Functions
Three Draining Functions (Forced Draining, Automatic Draining, Water Draining) MODE 1) Forced drainage function (Must be implemented to prevent freezing in winter storage. Please also use this function for cleaning the inside.) - Turn on the power switch and press the "DOWN + SET"... -
Page 20: Required Precautions To Prevent Frost
6. Required Actions to prevent frost Water Removal in Water Tank and Evaporator If the ambient temperature falls below 32℉ , water will freeze inside the machine and machine operation will be impossible. If you do not use for a long period of time in winter, be sure to completely remove the ice making water inside the body by following the instructions below. -
Page 21: Maintenance, Repair And Disinfection 21~24
7. Maintenance, repair and disinfection ※ Please keep the product according to the instruction manual and label provided. ● Be sure to have a qualified service technician service the product. ● To reduce the risk of electric shock, do not touch or disassemble the parts of the ice maker. ●... -
Page 22: Cautions For Cleaning The External Panel(Stainless Steel)
Cautions for cleaning the external panel(stainless steel) ※ How to remove rust How to clean rusted parts 1. Rust spots in early stage - Rust spots in early stage mean that the stainless steel itself is not severely affected, thus mild detergent or any commercially available cleaning agent will restore original state. -
Page 23: How To Clean And Disinfect 23~24
How to clean and disinfect ※ The ice maker should be cleaned and disinfected at least twice a year. More frequent cleaning and disinfection may be required. ◆ Make sure to comply with the following. Do not use ammonia-based detergent to prevent damage to the personnel or the ice maker itself. ●... - Page 24 3. Disinfection wash Dilute 10 L of warm water and 400 mL of 5.25% sodium hypochlorite solution (bleach). (※ Dilution ratio may vary depending on the solution manufacturer, please refer to the solution manual). If this is the minimum amount to be used, use more washing solution. ※...
-
Page 25: Circuit Diagram
8. Circuit Diagram... -
Page 26: Error Type
9. Error Type ① When Error occurs, the front use button (ICE-WATER-ICE & WATER) of the door lights alternately to the left and right. Restart after action. ② When the button is lit alternately to the left and right, open the door and press the bottom setting button of the control buttons, Error display will appear. -
Page 27: Before Requesting Service
10. Before Requesting Service Make sure to check the following if the product is operated inappropriately. If the issue persists, contact the local distributor where you purchased the product or the customer service center. Please provide the information on the warranty when you contact us. (Model, serial number, name of distributor, date of purchase and detailed description of issue) Operational status What to check... -
Page 28: Product Warranty
11. Product Warranty Period If you did not receive or lost a warranty card or receipt, or if it is difficult to confirm the date of purchase due to other reasons, the warranty period will be calculated from 6 months after the date of manufacture. - Page 29 MEMO...
