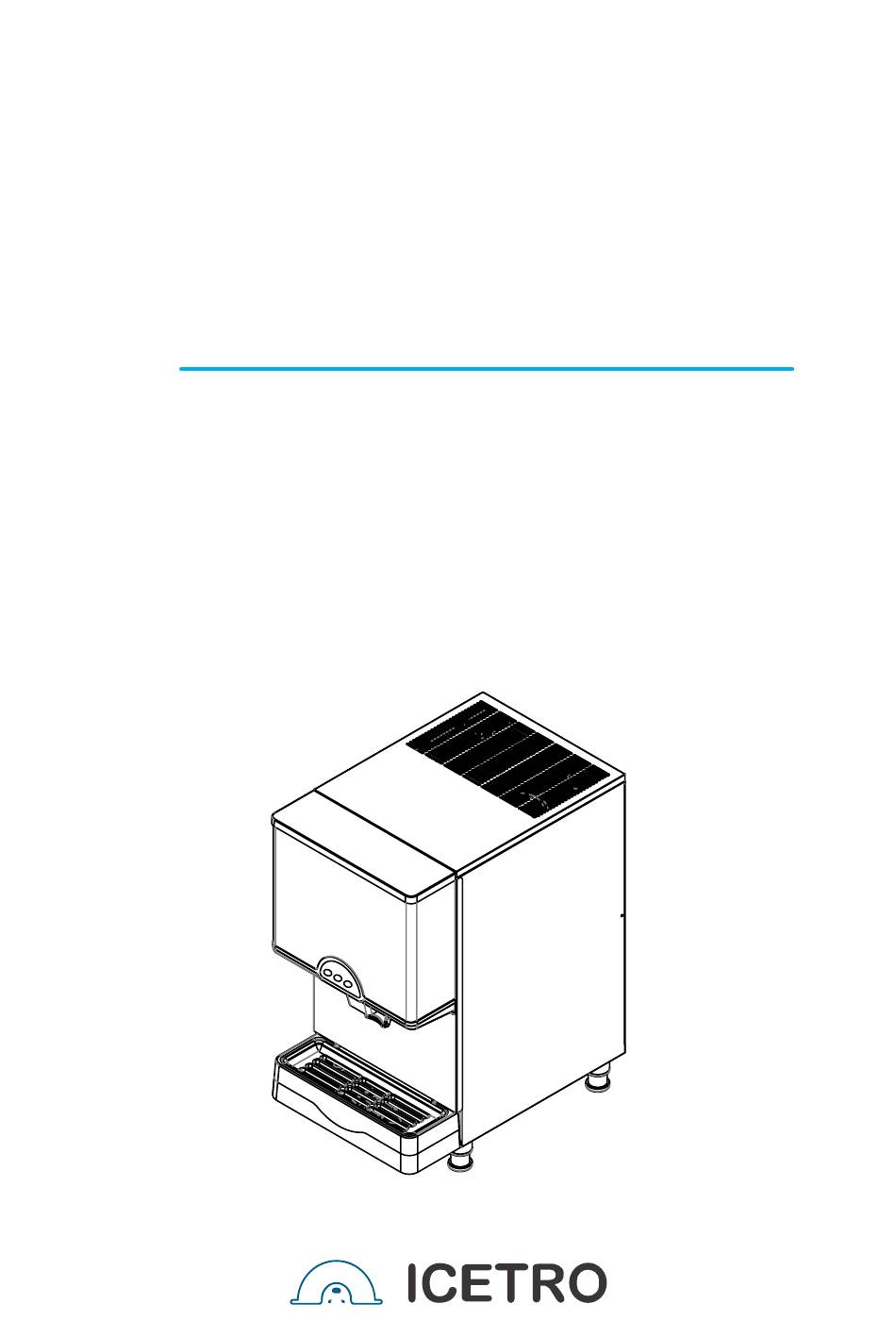

Ice/Water Dispenser
User Manual
MODEL : ID-0300-AN
※ Please check the voltage specification
If the voltage specification is different, it can not be used
※ This product is designed for indoor installation
Please be sure to install it indoors
※ The external appearance, design, color, and/or components
of this machine may be changed without prior notice
※ Please read the preparations for safety
※ Be sure to follow Maintenance Schedule (page 22)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for icetro ID-0300-AN
Summary of Contents for icetro ID-0300-AN
- Page 1 Ice/Water Dispenser User Manual MODEL : ID-0300-AN ※ Please check the voltage specification If the voltage specification is different, it can not be used ※ This product is designed for indoor installation Please be sure to install it indoors ※ The external appearance, design, color, and/or components of this machine may be changed without prior notice ※...
-
Page 2: Table Of Contents
INDEX 1. Safety Precautions 2. Product Specification 3. Appearance and Size 10~11 12~16 4. How to install 12~13 - The installation place - Panel disassembly method - Connection method for water supply and drainage - About grounding 17~20 5. How to start the product - Button operation - Function button description (FND display window) - Three drainage functions... -
Page 3: Safety Precautions
1. Safety Precautions When there is a risk of causing physical problems such as death or serious injury Warning in the event of improper use. When injury or damage to property such as house or furniture may occur Caution in the event of improper use. SHOULD BE DONE PROHIBITION DO NOT... - Page 4 Warning Do not place heavy objects or containers containing water on the ice maker. ◆ The objects or containers may fall and cause water to leak and the insulation may be weakened, resulting in a fire due to a short circuit. Do not install the product in a humid place or where there is a risk of water splashing.
- Page 5 Warning Prohibition Do not bend the power cord severely, or allow it to be pressed by a heavy matter. which can cause damage to the cord. ◆ There is a danger of a current leak, electric shock and/or fire. ◆ Be sure to contact the customer service center if the power cord or plug get peeled or damaged. Do not forcibly apply force or shock to the product.
- Page 6 Warning Disassembly forbidden Do not modify or repair the product yourself. ◆ Ignition or abnormal operation is dangerous and may cause more trouble. Prohibition Do not allow electrical cords or plugs to be pinched or twisted. ◆ The cord or plug may be peeled and there is a risk of fire or electric shock.
- Page 7 Warning Disconnect power plug When not in use for a long time, remove ice and water (to prevent winter frost), and unplug the power cord from the outlet. Disconnect power plug When cleaning dust or replacing parts, unplug the power plug first. ◆...
- Page 8 Caution Caution If there is a risk of slippery water or oil on the floor near the ice maker, please wipe it. ◆ There is a risk of injury if you slip on the ice maker or get hands or feet in the bottom of the side. Hand over When transferring this ice maker to another person, please hand it along with the instruction manual...
-
Page 9: Product Specification
2. Product Specification Specification Category Model ID-0300-AN Ice shape Nugget ※ Maximum capacity (lb / day) Ambient temperature 70 ℉, Water temperature 50 ℉ Storage capacity (lb) ※ Size (W X D X H inch) 16.6 X 25 X 28... -
Page 10: Appearance And Size 10~11
3. Appearance and Size Unit : inch Front Rear 16.6 Display panel Ice exit Ice discharge lever Drain box Height-adjustable feet Bottom Upper vent Water connection NPT 3/8" Filter NPTF 3/4"... - Page 11 Left side Right side 24.9...
-
Page 12: How To Install 12~16
4. How to install The installation place is like this ... ⊙ Where there is no heat source ... Install in a place where there is no heating device such as ◆ a fireplace or a gas range, and do not install in an area outside the range of 50 ~ 100 ℉... - Page 13 ⊙ Where good ventilation is secured... If the ventilation is poor, the ICE MAKING ◆ ability will decrease. ⊙ Installation is on a flat ... An unstable installation may cause vibration and noise ◆ (Installed within 1˚) It is recommended to install it on a flat surface because ◆...
-
Page 14: Panel Disassembly Method
Panel disassembly method 1. Upper panel: Open the front door and lift the upper panel, then the back magnets will be separated and disassembled. Front panel: Remove the lower set screws of the drain box, then loosen the set screws on the top of the front panel and pull out the front panel taking both sides. -
Page 15: Connection Method For Water Supply And Drainage
Connection method of water supply and drainage [ Connection of water and drainage hoses ] Division Proper water temperature Water pressure Hose to be used ICE MAKING water supply 50 ~ 90 ℉ 20-80 psi NPT 3/8" ICE MAKING drainage NPTF 3/4"... -
Page 16: About Grounding
About grounding ※ Please be sure to ground to prevent electric shock. ⊙ Grounding method -When there is a grounding terminal Grounding If you are using an AC outlet with ground AC only terminals terminals, you do not need to ground it separately. outlet Grounding is not... -
Page 17: How To Start The Product 17~20
5. How to start the product ⊙ Water supply hose protection Do not place heavy objects on the water supply hose leading to the water supply, or keep the hose from treading. ⊙ Proper water pressure, water temperature, ambient temperature Water pressure: 10~80 psi Please use this ice maker only in the area where water Water temperature: 50 ~ 90 ℉... -
Page 18: Button Operation
Button Operation WATER ICE & WATER ICE button lamp - If you turn on the power, this will always come in first. The initial water subtraction is done three times and then the ICE MAKING operation proceeds. If you put the cup in the ice exit, you can discharge the ice for the time set in F1. WATER button lamp - Press the button to light up. -
Page 19: Function Button Description (Fnd Display Window)
Function Button Description (FND Display Window) F. 1 (Maximum Discharge Time) ① SOLENOID Maximum operating time adjustment function. ② 3rd, 4th digits: 20 seconds (5 seconds ~ 30 seconds, Set Unit of one second). F. 2 (Complete removal of ice in the reservoir) ①... -
Page 20: Three Drainage Functions
Three Draining Functions (Forced Draining, Automatic Draining, Water Draining) 1) Forced drainage function (Must be implemented to prevent freezing in winter storage. Please also use this function for cleaning the inside.) Power FND display window - Turn on the power switch and press the switch "DOWN + SET"... -
Page 21: Required Precautions To Prevent Frost
6. Required Actions to prevent frost Water Removal in Water Tank and Evaporator If the ambient temperature falls below 32 ℉, water will freeze inside the machine and machine operation will be impossible. If you do not use it for a long period in winter, be sure to completely remove the ice making water inside the body by following the instructions below. -
Page 22: Maintenance, Repair And Sanitization 22~25
7. Maintenance, repair and sanitization ※ Please keep the product according to the instruction manual and label provided. ● Be sure to have a qualified service technician service the product. ● To reduce the risk of electric shock, do not touch or disassemble the parts of the ice maker. ●... -
Page 23: Cautions For Cleaning The External Panel(Stainless Steel)
Cautions for cleaning the external panel(stainless steel) ※ How to remove rust How to clean rusted parts 1. Rust spots in early stage - Rust spots in early stage mean that the stainless steel itself is not severely affected, thus mild detergent or any commercially available cleaning agent will restore original state. -
Page 24: How To Clean And Sanitize 24~25
How to clean and sanitize ※ The ice maker should be cleaned and sanitized at least twice a year. More frequent cleaning and sanitization may be required. ◆ Make sure to comply with the following. Do not use ammonia-based detergent to prevent damage to the personnel or the ice maker itself. ●... - Page 25 1. Sanitization wash Dilute 10 L of warm water and 400 mL of 5.25% sodium hypochlorite solution (bleach). (※ Dilution ratio may vary depending on the solution manufacturer, please refer to the solution manual). If this is the minimum amount to be used, use more washing solution. ※...
-
Page 26: Circuit Diagram
8. Circuit Diagram... -
Page 27: Error Type
9. Error Type ① When Error occurs, the front use button (ICE-WATER-ICE & WATER) of the door lights alternately to the left and right. Restart after action. ② When the button is lit alternately to the left and right, open the door and press the bottom setting button of the control buttons, Error display will appear. -
Page 28: Before Requesting Service
10. Before Requesting Service Make sure to check the following if the product is operated inappropriately. If the issue persists, contact the local distributor where you purchased the product or the customer service center. Please provide the information on the warranty when you contact us. (Model, serial number, name of distributor, date of purchase and detailed description of issue) Operational status What to check... -
Page 29: Product Warranty
11. Product Warranty Period If you did not receive or lost a warranty card or receipt, or if it is difficult to confirm the date of purchase due to other reasons, the warranty period will be calculated from 6 months after the date of manufacture. -
Page 30: Part List
12. Part List ※ Ice Maker Unit Part name Part code GEAR MOTOR DRAIN PAN 318039100 COVER STORAGE BIN 318038800 BASE SHUTE 301179100 COVER IN STORAGE BIN 318038900 ICE GATE 301179200 PACKING COVER STORAGE BIN 303037000 WATER SPOUT 301180500 BUSHING COVER STORAGE BIN 318039200 HOPPER 301177400... - Page 31 ※ Water Reservoir & Cooling Unit Part name Part code CHARGE NIPPLE ASSY 459000400 BKT BASE SHUTTER LEVER 301178400 COMP 3940041000 POM BEARING 310006400 WATER RESERVOIR ASS'Y 470002200 SHAFT SHUTTER LEVER 314043500 WATER VALVE 340029400 FILM MICRO SWITCH 120001500 BKT WATER SOL VALVE 301179800 MICRO SWITCH 355024200...
- Page 32 Online Internet Service & warranty registration; http://www.icetroamerica.com 3 2 4 0 4 3 3 - 0 1...
