Summary of Contents for Whisper Power WhisperTouch WP-TOUCH 5

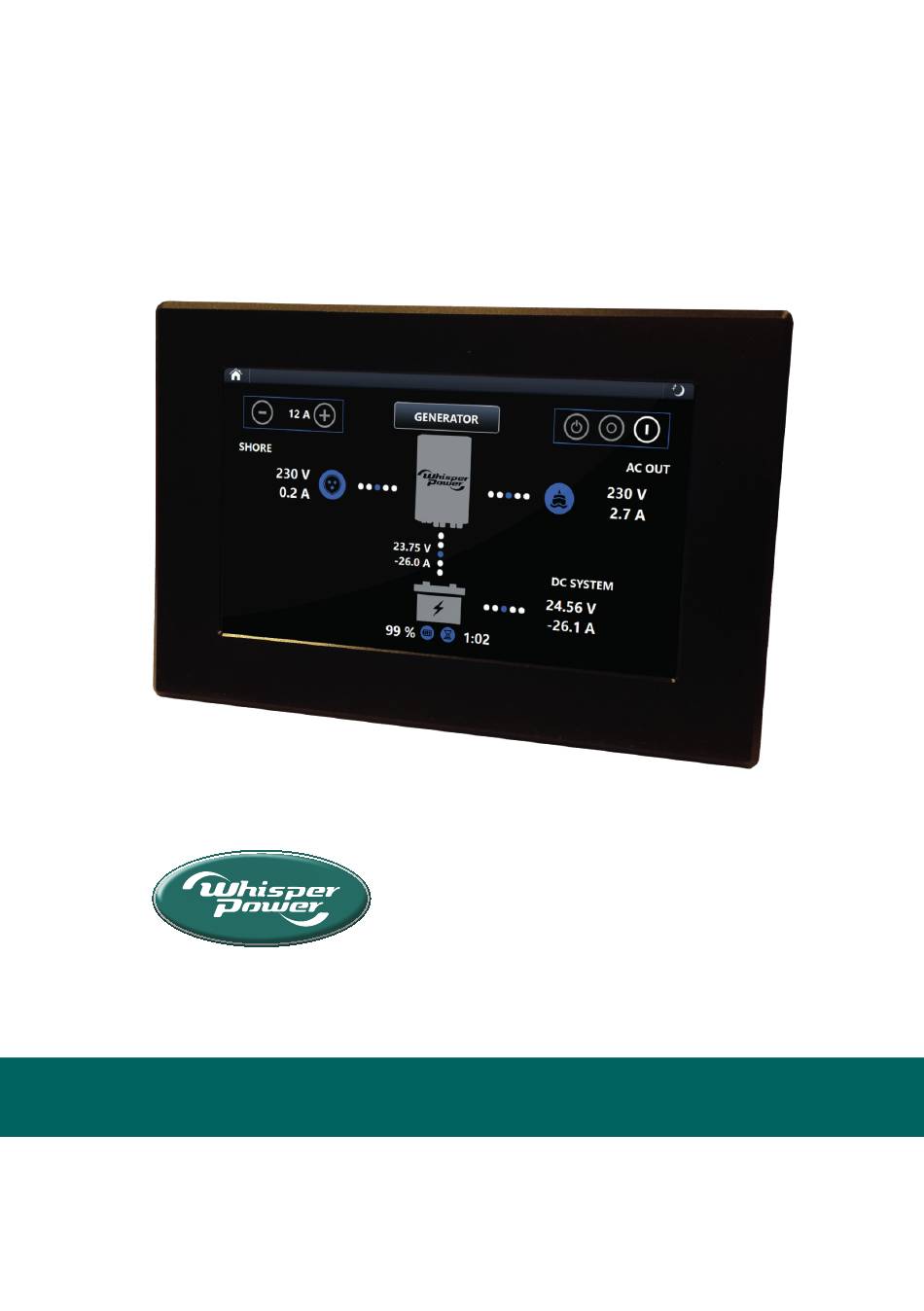

- Page 1 User/Installation Manual Remote Control Panel WhisperTouch E n j o y G r e e n E n e r g y WP 5.0 inch | WP 7.0 inch | WP 10.0 inch whisperpower.com...
- Page 2 WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch...
-
Page 3: Table Of Contents
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Table of Contents Introduction Capabilities Installation 3.1. General Remarks 3.2. List of materials Mounting the WhisperPower Touch Display Connecting the WhisperPower Touch Display 3.5. Connecting equipment 3.5.1 WhisperConnect 3.5.2 WPC-bus 3.5.3 DDC-bus 3.6. -
Page 4: Introduction
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Introduction Congratulations on your purchase of the WhisperPower Touch screen panel, an attractive easy to use touch screen panel to monitor and control those parts of the electrical system of a vessel, yacht, ve- hicle or land based object which are fitted with a WhisperConnect, WPC-bus or DDC-bus connection. -
Page 5: Capabilities
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Capabilities The table below lists which devices are supported by the WhisperPower Touch screen panels. WP-TOUCH 5” WP-TOUCH 5” WP-TOUCH 7” WP-TOUCH PICCOLO/SCALINO SYSTEM PANEL SYSTEM PANEL 10” SYSTEM 4/5 GENVERTER PANEL Art. -
Page 6: Installation
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Installation 3.1. General Remarks Local and/or special regulations may apply depending on the type of installation involved. It is essential that each and every circuit in the electrical system is properly installed by a qualified electrician using all applicable standards. Refer to the wiring diagram for details of electrical connections. CAUTION! Risk of electric shock, personal injury, explosion and/or equipment damage - Do not work on the WhisperPower Touch screen panel or the electrical installation while it is still connected to a power source. - Page 7 WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch WP-TOUCH screen panel full color 7” - System panel - WP-Touch screen panel - 4 Mounting screws with clips - WhisperConnect cable 15 meter - WhisperConnect cable 0,5 meter - 1 WhisperConnect splitter - 2 WhisperConnect terminators - User/installation manual WP-TOUCH screen panel full color 10” - System panel...
-
Page 8: Mounting The Whisperpower Touch Display
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch 3.3 Mounting the WhisperPower Touch Display Create a mounting hole according to the dimension specifications found below. Install the WhisperPower Touch screen panel. Fix the panel with the four clips with screws. Please note the touch screen panel is meant for in-door/interior use. It must be installed in a dry and clean place protected from strong vibrations The touch screen panel must be mounted so as to avoid any contact with acid from the battery, dust, rain, snow or liquids of any type. -
Page 9: Connecting The Whisperpower Touch Display
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch WP-TOUCH 5” WP-TOUCH 5” WP-TOUCH 7” WP-TOUCH PICCOLO/SCALINO SYSTEM PANEL SYSTEM PANEL 10” SYSTEM 4/5 GENVERTER PANEL Art. No. 40280105 40280100 40280101 40280102 External width (W1) 150 mm 150 mm 206 mm 280 mm External length (L1) 110 mm... -
Page 10: Connecting Equipment
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch 3.5. Connecting equipment WARNING! Wrong or improper connections may cause damage to your WhisperPower Touch screen panel or any other equipment connected to the system. Wrong installation is not covered by guarantee. ④... -
Page 11: Wpc-Bus
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch 3.5.2 WPC-bus Devices with WPC-bus can be connected to the touch panel by using a WPC-RS232 interface or WPC-CAN interface. The WPC-RS232 interface connects to the RS232 connection on the touch panel. The WPC-CAN integrates into the WhisperConnect bus. See the manual of the interfaces for more details. -
Page 12: Connection Example
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Connection example WhisperConnect Devices, green cables DC-cube AC-cube Supreme pro * A green te Smart shunt don’t use o WhisperCo then the blac Splitter *Terminator WPC BUS De 7" Touchpanel RS-232 *Terminator Switch Switch set to... - Page 13 WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Lithium Power Plus, Orange cables erminator (specific WhisperPower, other brands) is placed in the last onnect product. If there is a WIB, ck terminator is placed close to the WIB in the orange wiring. Splitter Adapter *Terminator m/f...
-
Page 14: Operation
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Operation The WhisperPower Touch screen panels can be supplied with a classic user interface, pro user interface or piccolo user interface. WP-Touch classic user interface Dark themed touch panel with configurable device layout. Up to two chargers, up to two inverters, up to two battery banks and up to one generator can be used with the touch panel. WP-Touch pro user interface Light themed touch panel with pre-configured device layout. Plug and play capability due to pre-configuration done in our factory. Complete system monitor and control including Solar. - Page 15 WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Press the home button Press the settings button...
- Page 16 WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Press the maintenance button Fill in the password Press the verify button...
-
Page 17: Changing Configuration
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch A message will show when successfully changed user level Press the home button or the back button to return to the main 4.2 Changing configuration WARNING! Improper settings can make the installation inoperable and/or damage the installa- tion. Wrong configuration is not covered by guarantee. The configuration menus become accessible when the user level is set to installer. The main configurations are divided over multiple configuration pages: energy config and generator config. Using these parameters, one can select which devices are connected and monitored on the touch panel. Touch panels with the WP-Touch pro user interface are configured at the factory and cannot be changed by the user. - Page 18 WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Press the home button Press the settings button...
-
Page 19: Troubleshooting
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Press the energy config button to access the energy Press the generator config button to access the generator config parameters Press the home button or the back button to return to the main 4.3 Troubleshooting No visible screen No power – Check power supply and fusing Screen is in standby – Touch the screen to wake it up Device data is not shown Faulty communication installation –... -
Page 20: Technical Specifications
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Technical Specifications SPECIFICATIONS WP-TOUCH screen panel full color 5” - Piccolo/Scalino 4/5 Genverter Input voltage 6-42 VDC Power consumption 100mA to 240 mA Dimensions WhisperTouch 5" (lxw) 110 mm x 150 mm Installation depth WhisperTouch 5"... -
Page 21: Warranty Terms And Conditions
WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch Warranty Terms and Conditions WhisperPower guarantees that the equipment has been built according to the legally applicable standards and specifications. WhisperPower assures the product warranty of the Touch screen panels during two years after purchase, on the condition that all instructions and warnings given in this manual are taken into account during installation and operation. - Page 22 WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch...
- Page 23 WhisperPower Touch Display WP 5.0, 7.0 and 10.0 inch...
- Page 24 E n j o y G r e e n E n e r g y WhisperPower BV Kelvinlaan 82, 9207 JB Drachten The Netherlands www.whisperpower.com sales@whisperpower.com...
