Whisper Power WP-Sine User Manual

USER MANUAL
WP-Sine
InverterControlPanel
Recreational vehicles • Caravans
Pleasure craft • Holiday homes
High frequency sine wave inverter control
IntRoduCtIon
The WP-Sine Inverter Control (remote panel) can be connected
to the WP-Sine Inverter via the Remote port on the AC side panel
to turn the WP-Sine inverter ON or OFF from a more convenient
location. The remote panel also has the ability to be installed on
the wall and into the wall. The WP-Sine Inverter Control Remote
Panel comes with a 6 m communications cable.
Important Safety InformatIon
Misusing or incorrectly connecting the remote panel may damage
the equipment or create hazardous conditions for users. Read the
following safety instructions and pay special attention to all Cau-
tion and Warning statements in your SW Inverter User manual.
WarnIngS
1. All electrical work must be done in accordance with
local, national, and/or international electrical codes.
2. All electrical work must be done by a qualified installer.
3. Before installing or using the remote panel, read all
instructions and cautionary markings located in the
manual, on the WP-Sine unit, and on the batteries.
4. Do not expose the remote panel to rain, snow or
liquids of any type. This product is designed for
indoor mounting only.
5. Use insulated tools to reduce the chance of short circuits
when installing or working with the inverter, or the batteries.
6. Remove all jewelry such as rings, bracelets, necklaces, etc.,
while installing this system. This will greatly reduce the chance
of accidental exposure to live circuits.
7. The WP-Sine contains more than one live circuit (batteries and
AC power). Power may be present at more than one source.
8. The remote panel contains no user-serviceable parts.
Do not attempt to repair this unit.
Failure to follow these safety guidelines may cause personal
injury and/or damage to the remote panel. It may also void
your product warranty

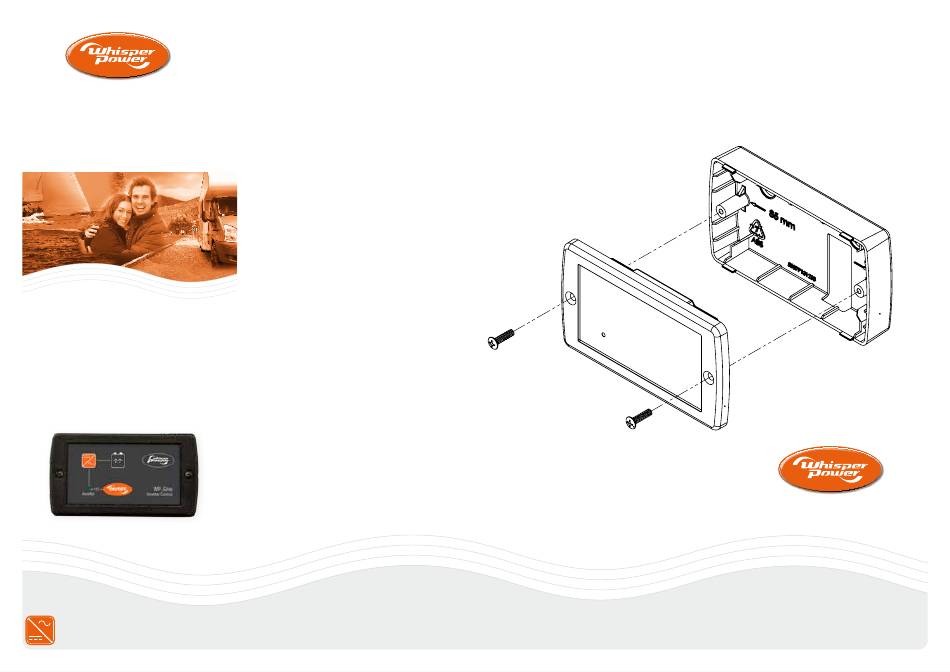

MountIng tHe WP-SIne InveRteR ContRol
Mount the remote panel in a clean, dry environment.
1 2
to install the remote panel:
1. Choose a location that is dry, free from corrosive or explosive
fumes, and appropriate for installing an electronic device.
2. Choose your mounting method, using the mounting dimension
at, back side of this manual, pilot-drill the mounting holes.
Incase of build in method , cut an opening
3. Route the communications cable inside the wall and through
the opening to the WP-Sine inverter.
4. Connect the communications cable to the RJ11 Com
Port on the back of the remote panel.
WhisperPower BV Kelvinlaan 82, 9207 JB Drachten, The Netherlands, Tel: +31 (0) 512 571 550, Fax: +31 (0) 512 571 599, info@whisperpower.com, www.whisperpower.com
5. Position the remote top cover assembly into the opening in
the wall and/or installed back panel secure it with the two
3 4
screws (provided).
8. Make sure to switch the inverter OFF.
9. Plug the communications cable into the remote port
(REM) on the WP-Sine Inverter.
5
