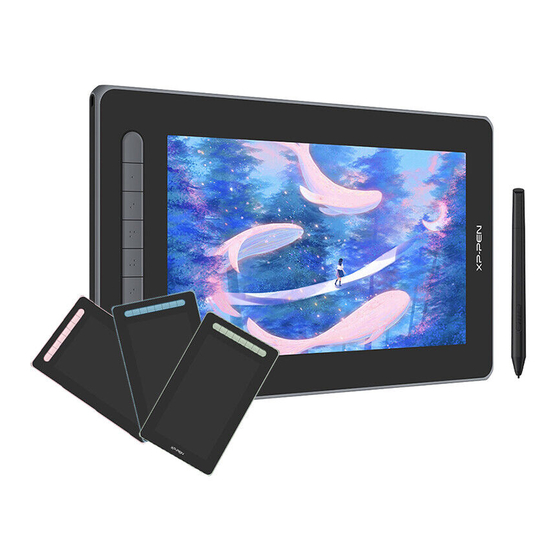

XP-PEN Artist Series User Manual

Drawing display
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
Artist Series Drawing Display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Artist Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XP-PEN Artist Series

Summary of Contents for XP-PEN Artist Series

  • Page 1 User Manual Artist Series Drawing Display...

  • Page 2: Table Of Contents

    Contents 1 Overview 1.1 Product overview 1.2 Accessories 1.3 Connection 1.4 Download and Install the Driver 1.5 Support system 2 Get started with your Drawing Display 2.1 Download 2.2 Installation 2.3 Introduction to driver 2.4 Work area 2.4.1 Screen 2.4.2 Drawing Tablet/Drawing Display 2.5 Application 2.6 Pen settings 2.7 Shortcut keys...

  • Page 3: Overview

    1. Overview 1.1 Product overview 1. Lanyard hole 2. Shortcut keys 3. Work area 4. Power key 5. Indicator light a. Click the power button to turn it on, and the blue light is steady on, and click the power button again to turn b.

  • Page 4: Accessories

    1.2 Accessories * The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. * The power adapter of some models is not included in the package. * All pictures shown are for reference only and may differ from the actual product.
  • Page 5 Normally, the device can be powered on when the black USB-A cable is connected to your computer. A flashing screen of the device may indicate a low power, in which case you are suggested to connect the red USB-A cable to another USB port on your computer or the power adapter.

  • Page 6: Download And Install The Driver

    1. Make sure your Drawing display is connected correctly to the computer. 2. Visit the XPPen website (www.xp-pen.com), click on the Support section and then Download. Choose a product model and download the latest driver according to your computer system.

  • Page 7: Get Started With Your Drawing Display

    Get started with your Drawing Display 2.1 Download Please download the corresponding driver according to your product model from the XPPen official website (https://www.xp-pen.com). 2.2 Installation After downloading is completed, please unzip the folder and operate the “.exe” file (Windows) or “.dmg”...

  • Page 8: Screen

    2.4.1 Screen If multiple monitors are used in duplicate mode (i.e. All monitors display the same picture), the work area of the device will be mapped to all monitors. When the pen moves in the work area, the cursor on all monitors will move at the same time. If multiple monitors are used in extended mode, on the driver interface, select which monitor the device’s work area is mapped to.

  • Page 9: Application

    monitor. (3) Set work area: Use the stylus to click the "upper left corner" position and the "lower right corner" position on the device to select its work area. (4) Customize: Manually enter coordinates in the corresponding input boxes below X, Y, W and H to determine the size of the work area of the device, or use the stylus to drag on the device icon on the driver interface to set the size of the work area.

  • Page 10: Pen Settings

    c. Click the “OK” button at the bottom of the interface, and the application just selected will be added to the application bar. 2.6 Pen settings When the pen is within the range of the work area, it will be automatically added to the driver. Multiple pens can be supported, and each pen can be configured differently.
  • Page 11 to customize functions of the combination key. Mouse control: Set shortcut keys. With the “Keyboard Shift” and “Left Click” selected, shortcut actions are enabled in software that supports such combination key. Keyboard: You may configure keyboard shortcuts here, for example, set it as Alt+A in 3D MAX software, and an alignment tool can be used.

  • Page 12: Shortcut Keys

    Mouse mode： The mouse uses the absolute mode by default. Check this to use the relative mode. After selecting it, you can adjust the speed of the cursor. Absolute coordinate (pen mode): Map the work area to the display area. Relative coordinate (mouse mode): The operation method of this mode is the same as that of a normal mouse.

  • Page 13: Roller/Touch

    2.8 Roller/Touch 2.8.1 Roller Select the function you want to use from the default four groups of functions. You can customize or set this function to invalid. Customize： In the custom settings, you can set KL and KR to corresponding key combinations and custom name them.

  • Page 14: Settings

    Roller mode: The setup steps are the same as the Roller (see 2.8.1 Roller). Mouse mode: Use the touchpad as a mouse. 2.9 Settings Disable shortcut keys: Close functions of all shortcut keys. Disable message: When using the shortcut keys, no prompt message will be displayed at the bottom of the screen. Disable pressure: You will not feel the pressure of the stylus when using the stylus.
  • Page 15 When you need to import & export the changed functions, please click the “OK” button on the left side of the driver interface first to save the configuration. If you need any further assistance, please contact us at: Website : www.xp-pen.com Email: service@xp-pen.com...
