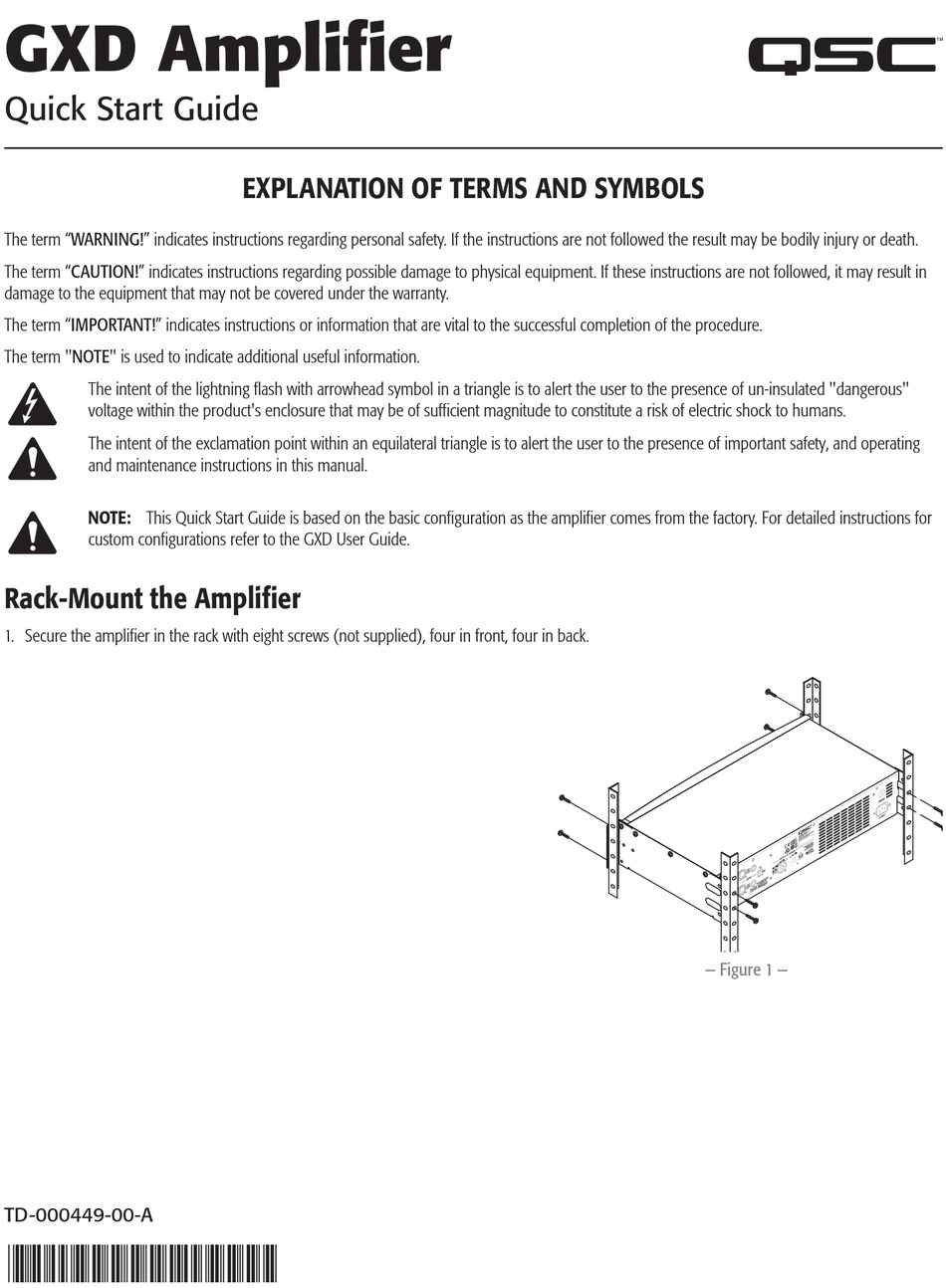

QSC GXD Series Quick Start Manual

GXD Amplifier
Quick Start Guide
The term "WARNING!" indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.
The term "CAUTION!" indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in
damage to the equipment that may not be covered under the warranty.
The term "IMPORTANT!" indicates instructions or information that are vital to the successful completion of the procedure.
The term "NOTE" is used to indicate additional useful information.
The intent of the lightning fl ash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous"
voltage within the product's enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to humans.
The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating
and maintenance instructions in this manual.
NOTE: This Quick Start Guide is based on the basic confi guration as the amplifi er comes from the factory. For detailed instructions for
custom confi gurations refer to the GXD User Guide.
Rack-Mount the Amplifi er
1. Secure the amplifi er in the rack with eight screws (not supplied), four in front, four in back.
TD-000449-00-A
*TD-000449-00*
EXPLANATION OF TERMS AND SYMBOLS
— Figure 1 —
