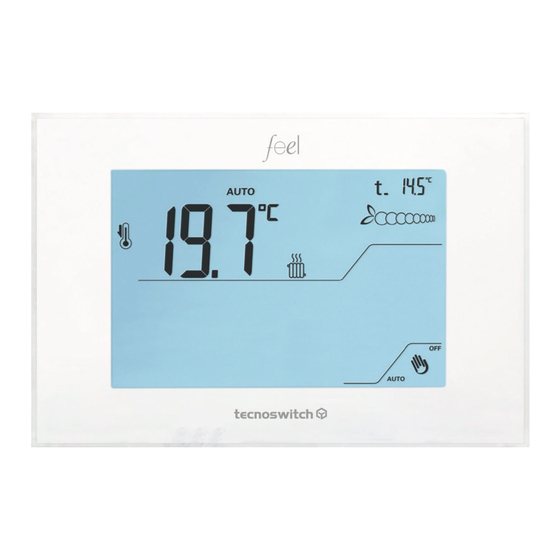

Wall mounted touch thermostat

Advertisement

Quick Links

WALL MOUNTED TOUCH THERMOSTAT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TE035BI and is the answer not in the manual?

Questions and answers

Summary of Contents for tecnoswitch TE035BI

  • Page 1 WALL MOUNTED TOUCH THERMOSTAT...
  • Page 3 WALL MOUNTED TOUCH THERMOSTAT Congratulations for purchasing the TE035BI. To get the maximum performance, please to read carefully all the instructions. The thermostat guarantees the best comfort temperature, thanks to easy programming and intuitive graphics interface. It’s supplied with an in-cell touch display with back-lighting that it is the most advanced of the wall-mounted category.
  • Page 5 KEYS LEGEND Menu Increase Decrease Confirm Scrools the next icon ON/OFF - Manual/Automatic DISPLAY LEGEND Energy consumption savings indicator Set temperature Cooling time Heating Temperature Set Reduction temperature ON Set Comfort temperature ON Frost protection Low batteries Note: When the programmable thermostat is in Stand-by, press to start the backlight.
  • Page 6: Table Of Contents

    Installation Set heating / cooling Set comfort / reduction temperature Function Off Lock setting Temperature setting External probe setting Boiler deadlock Reset Supply battery replacement Technical features Safety warnings...
  • Page 7: Installation

    INSTALLATION The appliance must be installed on a wall at a height of 1,5m off the floor in a suitable position for correctly detecting the ambient temperature. It must not be installed in niches, behind doors and curtains or in areas affected by sources of heat or atmospheric factors. It must be installed on a wall or on 2 and 3 module back boxes, in dry places.
  • Page 8 Pressing the other active keys appear.
  • Page 9 WIRING DIAGRAM RELAY RELAY...
  • Page 10 ASSEMBLY Fig.1A Fig.2A Fig.3A Fig.4A Fig.5A...
  • Page 11 FACTORY SETTING Heating program: Reduction temperature Comfort temperature Cooling Program: Reduction temperature a 28° C Comfort temperature a 24° C Frost protection +5°C settable, active only in heating mode...
  • Page 12: Set Heating / Cooling

    SET. HEATING / COOLING The thermostat can regulate system of: 3.1 HEATING 3.2 COOLING 3.1 HEATING 3.1.1 Start the display by pressing 3.1.2 Press 3.1.3 Press up to position on that it will start to flash. 3.1.4 Press OK to confirm. The display shows ON and .
  • Page 13 3.2.3 Press up to position on that it will start to flash and OFF appears.
  • Page 14 3.2.4 Press OK to confirm. The display shows On and . If it’s not confirmed after 10 seconds it returns to Stand-by. SYSTEM ACTIVATION SIGNALING When the icons are animated, the system is active.
  • Page 15: Set Comfort / Reduction Temperature

    SET COMFORT / REDUCTION TEMPERATURE You can set the Reduction or Comfort temperature in the mode of: 4.1 Heating 4.2 Cooling You can set the temperature between +2 and + 35° C in steps of 0.1 ° C by pressing 4.1 Heating Make sure that the icon is active.
  • Page 16 Fig.8 4.1.4 Press OK. Fig.9 Fig.9...
  • Page 17: Function Off

    4.1.5 Press to set the desired Reduction or Comfort value If it’s not continued after 10 seconds it returns to Stand-by. 4.1.6 Press OK to det the desired temperature. 4.2 Cooling Make sure that the symbol is active. 4.2.1 to set, repeat the steps 4.1.1 a 4.1.6. FUNCTION OFF 5.1 Press for 4 seconds to switch-off thermostat.
  • Page 18 4.1.5 Press to set the desired Reduction or Comfort value If it’s not continued after 10 seconds it returns to Stand-by. 4.1.6 Press OK to det the desired temperature. 4.2 Cooling Make sure that the symbol is active. 4.2.1 to set, repeat the steps 4.1.1 a 4.1.6. FUNCTION OFF 5.1 Press for 4 seconds to switch-off thermostat.
  • Page 19 Fig.10 Fig.11 5.2 Press for 4 seconds to switch-on the thermostat. The display shows ON for 3 seconds. Fig.12 Fig.12...
  • Page 20: Lock Setting

    LOCK SETTING The thermostat is provided with a 3 digit Lock Code. This function locks the display to avoid accidental changes to the settings caused by unintentionelly touching the screen: 6.1 Start display by pressing 6.2 Press and hold simultaneously for 4 seconds up to position on 6.3 After 3 seconds, the first digit on the left will flash so press to set it.
  • Page 21 6.4 Press to move to the other two digits. 6.5 Press to set the other two digits. 6.6 Press OK to confirm the Password. Pressing any key appears. Note: If you do not confirm with OK key within 15 seconds, you return to the previous function without having set the password.
  • Page 22: Temperature Setting

    TEMPERATURE SETTING Moving on icon , you can set these function: 7.1 - ON/OFF TEMPERATURE DIFFERENTIAL; 7.2 - TEMPERATURE IN A PROPORTIONAL WAY; 7.3 - CORRECTION OF MEASURED TEMPERATURE; 7.4 - FROST PROTECTION; 7.5 - ANTI-SEIZE PUMP FUNCTION. The thermostat is supplied with ON-OFF Temperature Regulation with a Thermal Differential set 0.3 °...
  • Page 23 To set temperature differential: 7.1.1 Press 7.1.2 Press 7.1.3 Press up to position on that it will start to flash. Fig.14 Fig.14...
  • Page 24 7.1.4 Press OK to confirm. appears and flashes. ON state appear and flashes. ON state appear and indicates that the on-off regulation is active. 7.1.5 Press OK. 7.1.6 press to set the desired differential value between 0.1 and 1°C. 7.1.7 Press OK to confirm.
  • Page 25 7.2 TEMPERATURE IN A PROPORTIONAL WAY It makes the temperature inside the building more stable. To set it, you have to: 7.2.1 Repeat the steps 7.1.1-7.1.4. Fig.15 7.2.2 Press appears and flashes. The status is OFF. 7.2.3 Press OK to confirm. appears and flashes ( Breath of adjustment range).
  • Page 26 Fig.17 7.2.4 Press to set the desired Breadth value. 7.2.5 Press OK to confirm. tc appears and flashes (System Cycle Time). It can choose between values: 5, 10, 20, 30, 40 minutes. The factory setting is 20 minutes.
  • Page 27 Example: Set Temperature 19.5°C with Breath of adjustment range 1°C. If the ambient temperature is lower than 18.5° C the heating is 100% on; as the ambient temperature approaches the set temperature, the system power decreases. Note: For location with good thermal insulation it is advisable to set small band values. 7.2.6 Press to set desired tc value.
  • Page 28 7.3 CORRECTION OF MEASURED TEMPERATURE If the programmable thermostat is installed close to sources of heat (like heaters, radiators, air conditioners) the measured (current) temperature may not be correct. For this reason it can correct the measured (current) temperature by screen from 0 °C (factory setting) to 3°...
  • Page 29 7.3.4 Press to set the desired correction value between -3 and +3°C. 7.3.5 Press OK ro confirm. 7.4 FROST PROTECTION FUNCTION It’s important to avoid damage caused by too low temperatures. This function works only in the Heating mode. The default temperature is +5°C. If the temperature drops below this value the system starts working.
  • Page 30 Fig.20 Fig.21...
  • Page 31: External Probe Setting

    EXTERNAL PROBE SETTING The thermostat has an input for 10k External probe (not supplied) that works in the range between -10°C and 60°C. the probe is used in these modes: 8.1 - EXTERNAL PROBE ON/OFF 8.2 - ENVIRONMENT PROBE 8.3 - EXTERNAL PROBE 8.4 - UNDERFLOOR PROBE To set the External Temperature Probe, proceed as follows: 8.1 EXTERNAL PROBE ON/OFF...
  • Page 32 Fig.23 Fig.24 8.2 ENVIRONMENT PROBE The plants is regulated on the base of the base of the detected temperature from the external from the external probe only. 8.2.1 Repeat the steps 8.1.1 e 8.1.2 8.2.2 Press up to position on that it will start to flash.
  • Page 33 8.2.3 Press OK to confirm. On appears. From now, the temperature measures by external probe regulates the system. The display shows the temperature measured by the external probe. 8.3 EXTERNAL PROBE It only measures another temperature, for example the external temperature. The system settings do not change.
  • Page 34 8.3.3 Press OK to confirm. On appears. From now on the display will a second temperature. 8.3.4 To display the temperature of the external probe, from standby press then press , ambient temperature appears. Press again appears, temperature measures by the probe. Fig.26...
  • Page 35 8.4 UNDERFLOOR PROBE If the temperature value measured by the underfloor probe exceeds the set temperature, the system is switched off. The temperature regulation is managed by the internal probe. 8.4.1 Repeat the steps 8.1.1 e 8.1.2 8.4.2 Press up to position on that it will start to flash.
  • Page 36 8.4.5 Press OK to confirm. From now if the value detected by the floor probe exceeds the set limit temperature, the system is switched off. Overtemperature protection function. The thermoregulation is managed by the internal thermostat probe. Note. If one of the function is active, all the others will be deactivated automatically.
  • Page 37: Boiler Deadlock

    BOILER DEADLOCK The thermostat detects the absence of temperature variations between the set temperature and the display one. If after 2 hours the displayed temperature has not changed ( variation of +/- 0.5° C ) the programmable thermmostat signals the failure of the system. appear and flash.
  • Page 38: Reset

    10.0 RESET Operating anomalies, interventions or other technical reasons may require the reset of the device and the restore of the factory settings. It restores the factory settings, also deleting any password. 10.1 From stand-by, press 10.2 Press and hold simultaneously for 4 seconds.
  • Page 39: Supply Battery Replacement

    11.0 SUPPLY BATTERY REPLECEMENT When appears, batteries must be replaced within 15 days. We suggest the replacement of Alkaline style batteries at the brginning of each season. Fitting the batteries with the wrong polarity may damage the programmable thermostat. The correct date and time settings are maintened if the batteries are removed and replaced within 30 seconds thanks to the supercapacitor.
  • Page 40: Technical Features

    12.0 TECHNICAL FEATURES - Thermostat with on/off and proportional temperature regulation and external probe. - Temperature Regulation from 2 to 35° C - Antifreeze temperature from 2 to 7° C - Correction Temperature from -3 e 3°C - Breadth of adjustment range from 0,5° C to 7° C of resolution - System Cycle Time 5, 10, 20, 30, 40 minutes - Thermal Differential ON / OFF from 0,1 to 1°...
  • Page 41: Safety Warnings

    13.0 SAFETY WARNINGS During installation and operation of the appliance the following indications must be respected: - Do not feed the product if it is mechanically damaged. - Install and start up the appliance in compliance with the current regulations concerning electrical system.
