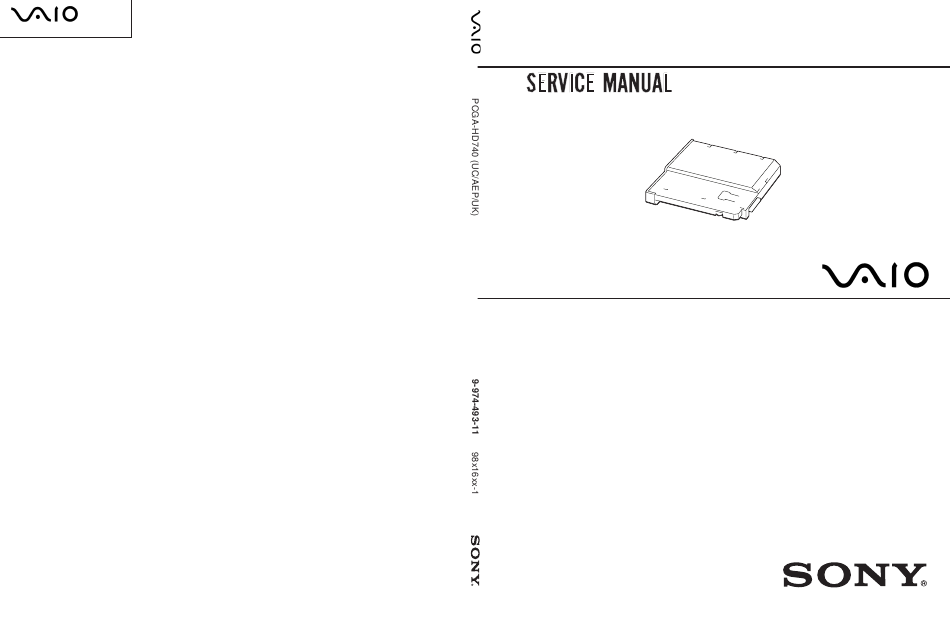

- Page 1 PCGA-HD740 PCGA-HD740 (UC/AEP/UK) US Model Canadian Model AEP Model UK Model 4GB HARD DISK DRIVE KIT English 98x16xx-1 Sony Corporation Printed in xxx 9-974-493-11 © 1998. x xxx (xxx) 9-974-493-11 – 10 –...
- Page 2 ACCESSORIES & PACKING MATERIALS in both the operating and the service instructions. ******************************* Sony and VAIO are trademarks of Sony. Intel logo and Intel 3-864-558-01 MANUAL (2ND HDD) INSTRUCTION CAUTION: Danger of explosion if battery is incorrectly Inside logo are registered trademarks of Intel Corporation.
- Page 3 TABLE OF CONTENTS Section Title Page CHAPTER 1. SERVICE INFORMATION ....(to 1-1) CHAPTER 2. REMOVAL 2-1. HDD 4GB Assy, Door HDD Unit, HDD Adaptor Unit ............2-1 (to 2-1) CHAPTER 3. SELF DIAGNOSTICS 3-1. Required Tools and Peripheral Devices ......3-1 3-2.
- Page 4 CHAPTER 1. SERVICE INFORMATION PCGA-HD740 (UC/AEP/UK) (END)
- Page 5 CHAPTER 2. REMOVAL 2-1. HDD 4GB Assy, Door HDD Unit, HDD Adaptor Unit HDD Adaptor Unit HDD 4GB Assy Door HDD Unit PCGA-HD740 (UC/AEP/UK) (END)
- Page 6 CHAPTER 3. SELF DIAGNOSTICS 3-1. Required Tools and Peripheral Devices • VAIO Computer (any PCG-7xx/8xx series VAIO computer) • FDD Drive • FDD Cable • AC Adaptor 3-2. How to Start the Diagnostics 1. Insert the device to be diagnosed into the multi-purpose bay of the VAIO computer. 2.
- Page 7 CHAPTER 4. EXPLODED VIEWS AND PARTS LIST NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
