If the saw chain becomes clogged or jammed whilst cutting, switch off and remove the battery prior to taking any remedial work.
9
Before attempting any cutting determine an escape area. Remove all obstructions such as tools and cuttings.
9
Prior to cutting branches or limbs determine the possible falling direction. Take into account the condition of the branches and limbs
9
of adjoining trees and wind direction etc.
Be aware of any rebound of the branch when it hits the ground.
9
DO NOT hold the cordless chainsaw at an angle of more than 60º. Falling objects could strike the operator causing possible serious
8
personal injury.
DO NOT stand underneath the branch or limb being cut.
8
Keep the cordless chainsaw running through all of the cut. Stopping the saw chain mid-cut may cause entrapment of the chainsaw.
9
If the saw chain becomes entrapped, immediately stop the cordless chainsaw and remove the battery. Carefully move the branch to
9
allow the saw chain to be removed.
Avoid kickback (rotational force towards the operator). To prevent kickback never use the guide bar nose as a penetrating cut.
9
Always be aware of the position of the guide bar nose when cutting.
DO NOT cover the vents of the cordless chainsaw.
8
WARNING! Be aware that the cordless chainsaw will not stop instantly when switched off, but will continue to move a short distance
‰
before stopping.
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that may
‰
occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but
must be applied by the operator.
WARNING! Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades
‰
are moving. Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may
result in serious personal injury.
Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of
9
the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the
9
risk of personal injury from the blades.
2. INTRODUCTION
Cordless telescopic chainsaw head - body only. Ideal for precision
cutting whilst reaching hanging branches and tall hedges. To be used in
conjunction with Telescopic Pole Model No. CP20VTP (sold separately).
High quality cutting performance with an Oregon chain and bar with
easy no tools needed to change. Continuous cutting speed of 8m/s.
90° Pivoting head is ideal for those difficult to reach areas. Automatic
chain lubrication with 100ml capacity oil tank. Requires compatible 20V
battery and mains charger, sold separately.
3. SPECIFICATION
Model No: .................................................................... CP20VPSH
Battery: ................................. CP20VBP2, CP20VBP4, CP20VBP6
Blade length: .......................................................................200mm
No-load Speed: ............................................. Cutting Speed - 8m/s
Teeth distance: ............................................................3/8" - 9.5mm
Voltage: .................................................................................... 20V
Consumable Parts: ..... CP20VMC - Battery Charger (not included)
4. ASSEMBLY
4.1.
REMOVING SAW CHAIN
WARNING! Ensure the cordless chainsaw is switched off and the battery is removed prior to removing or installing saw chain.
‰
WARNING! DO NOT handle the saw chain with bare hands. Always wear protective gloves, not cloth gloves, the saw chain has
‰
sharp edges.
WARNING! After use the saw chain will be hot. Allow the saw chain to cool prior to removing or installing saw chain.
‰
4.1.1.

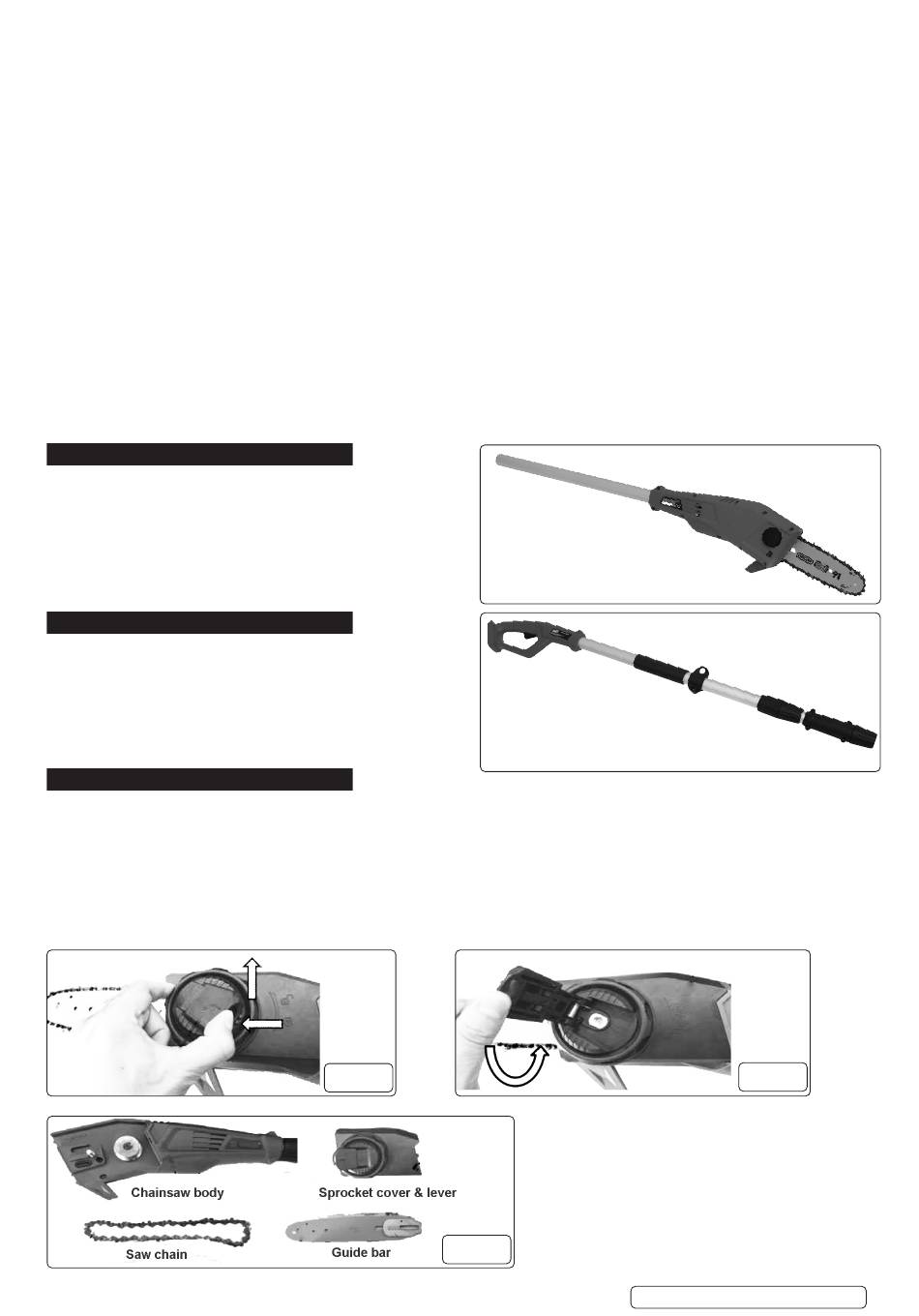

Place forefinger onto outer edge of tension knob and position your thumb on the lever, in line with directional arrow (fig 1).
4.1.2.
Push inwards and upwards to release the lever, until it locks into position (fig 2).
4.1.3.
Turn the lever anticlockwise until the sprocket cover comes off. Place the sprocket cover in a secure safe place (fig 2).
4.1.4.
Remove the saw chain and guide bar from the chainsaw body (fig 3).
© Jack Sealey Limited
CP20VPSH
CP20VTP
fig.1
fig.3
Original Language Version
(sold separately)
CP20VPSH Issue 1 25/10/21
