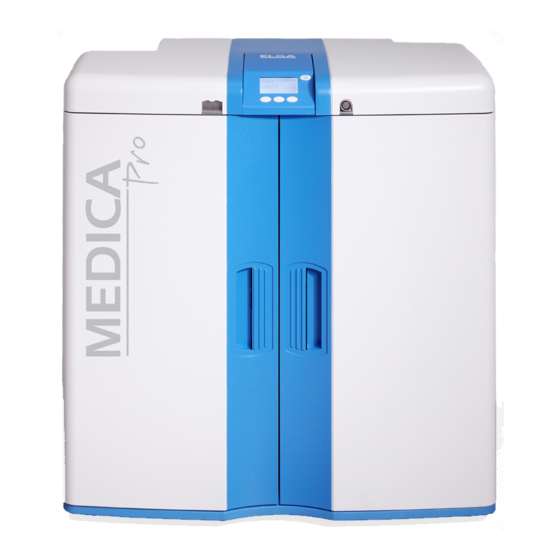

MEDICA EDI - US
Operator Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEDICA EDI - US and is the answer not in the manual?

Questions and answers

Related Manuals for ELGA MEDICA EDI - US

Summary of Contents for ELGA MEDICA EDI - US

  • Page 1 MEDICA EDI - US Operator Manual...
  • Page 3 All rights reserved. Publication ref: MANU40685 Version 2 – 10/15 ELGA LabWater is a trading name of VWS (UK) Ltd. ELGA® and PURELAB® are registered trademarks. Minncare is a trademark of Minntech Corporation. EfferSan™ is a trademark of Activon Inc MEDICA EDI - US MANU40685 Ver 2 –...

  • Page 4: Table Of Contents

    MEDICA EDI – US Operator Manual ELGA TABLE OF CONTENTS INTRODUCTION ..............4 Use of this Manual ............4 Customer Support ............4 HEALTH AND SAFETY NOTES ......... 4 Electricity ..............4 Pressure ..............4 Hydrogen ..............5 Sanitization Chemicals ..........5 Control of Substances Hazardous to Health (COSHH)5 Consumables.
  • Page 5 MEDICA EDI – US Operator Manual ELGA TECHNICAL SPECIFICATION ........... 35 WARRANTY/CONDITIONS OF SALE ....... 37 USEFUL CONTACT DETAILS ........... 39 MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 3...

  • Page 6: Introduction

    Electricity It is essential that the electrical supply to the MEDICA EDI - US is isolated before any items are changed or maintenance work performed. The appliance coupler (mains lead) connected to the rear of the unit can be removed to isolate the power supply.

  • Page 7: Hydrogen

    Care should be taken to order the correct consumable items. * Restricted use based on feed water conditions. Refer to technical specification on page 31. MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 5...

  • Page 8: Installation And Commissioning

    Installation The unit is supplied with a quick start manual that allows the unit to be quickly installed and commissioned. It is recommended that a trained ELGA representative carry out the installation of the product. Commissioning The unit is supplied with the software set in a commissioning mode that must be completed before being used to supply the application.

  • Page 9: Controls

    MEDICA EDI – US Operator Manual ELGA CONTROLS The MEDICA EDI - US control panel has a range of control icons. General icons are as follows. Further icons are described in the appropriate sections a complete listing is included in Section 9.

  • Page 10: User Recognition Keys

    ELGA Service Engineers. System Preferences When the MEDICA EDI - US unit is started for the first time after completing the commissioning routine the following steps should be carried out to set up your choices: Note: Your choices can be changed and implemented during normal operation.
  • Page 11 PRESS to change mode ( = ON) PRESS ✔ to proceed to step 5. PRESS ✔ . Audible alarm enable screen Note: The visual alarm cannot be disabled. MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 9...
  • Page 12 MEDICA EDI – US Operator Manual ELGA Step 5 –Set units of measure - Volume (screen 021) This screen allows units of water volume to be set, to either Litres or US Gallons. This only indicates the volume in the reservoir.
  • Page 13 PRESS to select alarm point (increments of 1, ranging from 20 to 50C) PRESS ✔ to proceed to step 12. PRESS ✔ . Alarm settings TS1 screen MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 11...
  • Page 14 MEDICA EDI – US Operator Manual ELGA Step 12 - Product water temperature alarm settings TS2 (screen 028) This screen is used to select the value at which the product water temperature alarm will activate. The alarm does not stop the unit and will automatically reset if the temperature returns below the set point.
  • Page 15 MEDICA EDI – US Operator Manual ELGA Step 15 - Operational days selection (screen 031) Select the days that the MEDICA EDI - US is required to operate by highlighting the relevant box. Monday = 1, Sunday = 7 PRESS to enter selection screen PRESS ✔...
  • Page 16 Feed Water Quality Screen PRESS ✔  to accept Step 19 - Data output (screen 035) The MEDICA EDI - US can transmit operational data to an Xport storage device. PRESS to format the storage device.
  • Page 17 ELGA Step 21 - Programming of User Keys (screen 037) During the life of the MEDICA EDI - US you may need to delete or add User keys to prevent or allow access to user choices. This feature is only available to the Master key holder.

  • Page 18: Setting Consumable Replacement Reminders

    MEDICA EDI – US Operator Manual ELGA Setting Consumable Replacement Reminders Step 1 - Enter consumable replacement timer set-up TURN unit off at electrical supply. Note: Allow time for the display to go blank after the power is removed. SWITCH electrical supply on.
  • Page 19 Sanitization replacement date PRESS ✔ to accept replacement date and complete settings. PRESS ✔ confirm that resetting is required PRESS ✗ to abort reset. PRESS ✔ . Sanitization reminder screen MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 17...

  • Page 20: Operation

    Night service/Operational day (screen 030) Refer to Section 3.2 - Step 14 and 15. Your MEDICA EDI - US can be programmed to operate on specific days between selected times. This is to optimize the efficiency of the unit and to minimize rises in water temperature.

  • Page 21: Maintenance

    WRITE the installation date on the label of the filter for future reference. INSTALL filter. CVF position SWITCH on power. RESET consumable reminder as described in Section 3.3, Step 3. General View MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 19...

  • Page 22: Replacing Purification Cartridge Lc207 Or Conditioning Cartridge Lc206

    MEDICA EDI – US Operator Manual ELGA Replacing Purification Cartridge LC207 or Conditioning Cartridge LC206.  LC206:  When the purity of water from the unit starts to deteriorate. When indicated by the consumable alarm or after a maximum of six months.

  • Page 23: Replacing Ultra-Microfilter (Lc109)

    4. UNSCREW UMF from top connection 5. INSTALL new UMF 6. RECONNECT 7. RINSE water to drain to recommission the system. Ultra-Microfilter 8. RESET reminder as described in section 3.3, Step 6. Ultra-Microfilter position MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 21...

  • Page 24: Replacing Uv Lamp (Lc105)

    MEDICA EDI – US Operator Manual ELGA UV lamp Replacing UV lamp (LC105) The UV lamp should be replaced in the following circumstances:  When indicated by the consumable alarm.  After a maximum of twelve months use. ENSURE process is OFF and ISOLATE power.

  • Page 25: Replacing Protek L2 (Lc177) Or Carbon Filter (Lc123) Pre-Treatment

    11. CLOSE retaining clamp and fasten CLIP Protek L2 (LC177) 12. The unit will automatically recognize the new cartridge and date. 13. RESET reminder as described in section 3.3, Step 5. Protek L2 (LC177) MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 23...

  • Page 26: Replacing E- Cartridge (Lc181)

    MEDICA EDI – US Operator Manual ELGA E-Cartridge Replacing E- Cartridge (LC181) The E- cartridge should be replaced:  When indicated by the alarm 1. ENSURE process is OFF and ISOLATE power. 2. OPEN front doors 3. LOCATE E – cartridge 4.

  • Page 27: Sanitization

    The sanitization frequency required is dependent on the feedwater, local environment, usage patterns and application. As a general rule, ELGA LabWater recommends sanitization of the RO at 6 monthly intervals. However, the period between sanitizations could be extended in particular circumstances. For example, microbial growth will usually be lower with clean feed water, well-maintained pre-treatment, low temperatures and heavy usage.
  • Page 28 MEDICA EDI – US Operator Manual ELGA PRESS ✓ to enter RO sanitization. Enter RO sanitization UNSCREW the large white lid on the left of the unit. Measure 50ml of Minncare cold sterilant and slowly pour into the break tank.

  • Page 29: Set Sanitization Reminder

    Once the step within the sanitization is complete the unit will go straight into process and continue to fill the recirculation reservoir RO sanitization process steps PRESS ✓ to accept the sanitization reminder reminder Set Sanitization MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 27...

  • Page 30: Tablet Sanitization

    The sanitization frequency required is dependent on the feedwater, local environment, usage patterns and application. As a general rule, ELGA LabWater recommends sanitization of the RO at 6 monthly intervals. However, the period between sanitizations could be extended in particular circumstances.
  • Page 31 INSERT ¼ of EfferSan™ tablet into the break tank. REPLACE lid. Large white lid removal to insert sanitiant. PRESENT GREEN sanitization to reader to confirm that the chemical has been added. Confirmation chemical is added MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 29...

  • Page 32: Set Sanitization Reminder

    MEDICA EDI – US Operator Manual ELGA The system now enters a period of automatic sanitization lasting approximately 45 minutes Once the step within the sanitization is complete the unit will go straight into process and continue to fill the recirculation reservoir RO sanitization process steps PRESS ✓...

  • Page 33: Emergency Bypass

    Remove yellow plastic cover 3 Open valve 3 Close valve 3 when there is no requirement for purified water. Monitor water purity independently or install new LC207 cartridges to guarantee water purity. MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 31...

  • Page 34: Calculation For Di Cartridge (Lc207) Cartridge Life

    MEDICA EDI – US Operator Manual ELGA Calculation for DI Cartridge (LC207) Cartridge life Calculate the maximum life of LC207 under emergency bypass processing and with your mains water conditions to maintain a supply purity of 1MΩ.cm to the analyzer The maximum life expectancy of the LC207 cartridge in emergency bypass mode while maintaining a supply purity of 1MΩ...

  • Page 35: Trouble Shooting

    The appropriate action to then take (for the more common alarm displays) is shown on the Quick Reference Guide (fitted to the inside of the door of the MEDICA EDI - US.) If the unit cannot be repaired using the information shown, please call your local ELGA LabWater representative (See Section 12.0 - Useful Contact Details).

  • Page 36: Key To Control Panel

    MEDICA EDI – US Operator Manual ELGA KEY TO CONTROL PANEL ICON DESCRIPTION ICON DESCRIPTION User Accept Recognition Auto restart Locked Scroll back Menu Step back Mute alarm Bell Night Standby Option OFF Calibration Option ON point Cancel Output Clock...
  • Page 37 Technical Support at ELGA LabWater. Pre-treatment LC177 and LA727 (LC123) included in starter kits LC238 and LC237 respectively. MEDICA EDI - US MANU40685 Ver 2 – 10/15 Page 35...
  • Page 38 Bacteria <1 CFU/ml** Particles 0.05 µm System to be regularly sanitized and installed following ELGA LabWater installation design guidelines. As part of our policy of continual improvement, we reserve the right to alter the specifications given in this document MEDICA EDI –US MANU40685 Ver 2 – 10/15...
  • Page 39 MEDICA EDI – US Operator Manual ELGA WARRANTY/CONDITIONS OF SALE ELGA LabWater is a trading name of VWS (UK) Ltd. General Limited Warranty VWS (UK) Ltd. warrants the products manufactured by it against defects in materials and workmanship when used in accordance with applicable instructions for a period of one year from the date of shipment for the products.
  • Page 40 MEDICA EDI – US Operator Manual ELGA defective in materials or workmanship within the warranty period, provided the customer notifies VWS (UK) Ltd. promptly of any such defect. The cost of labor for the first ninety (90) days of the above warranty period is included in the warranty;...
  • Page 41 Tel: +44 (0) 203 567 7300 Fax: +44 (0) 203 567 7205 E-mail: techsupport@elgalabwater.com For the address of the nearest ELGA LabWater Sales and Service office visit the country list on our website. http//www.elgalabwater.com or contact ELGA at the number above.
