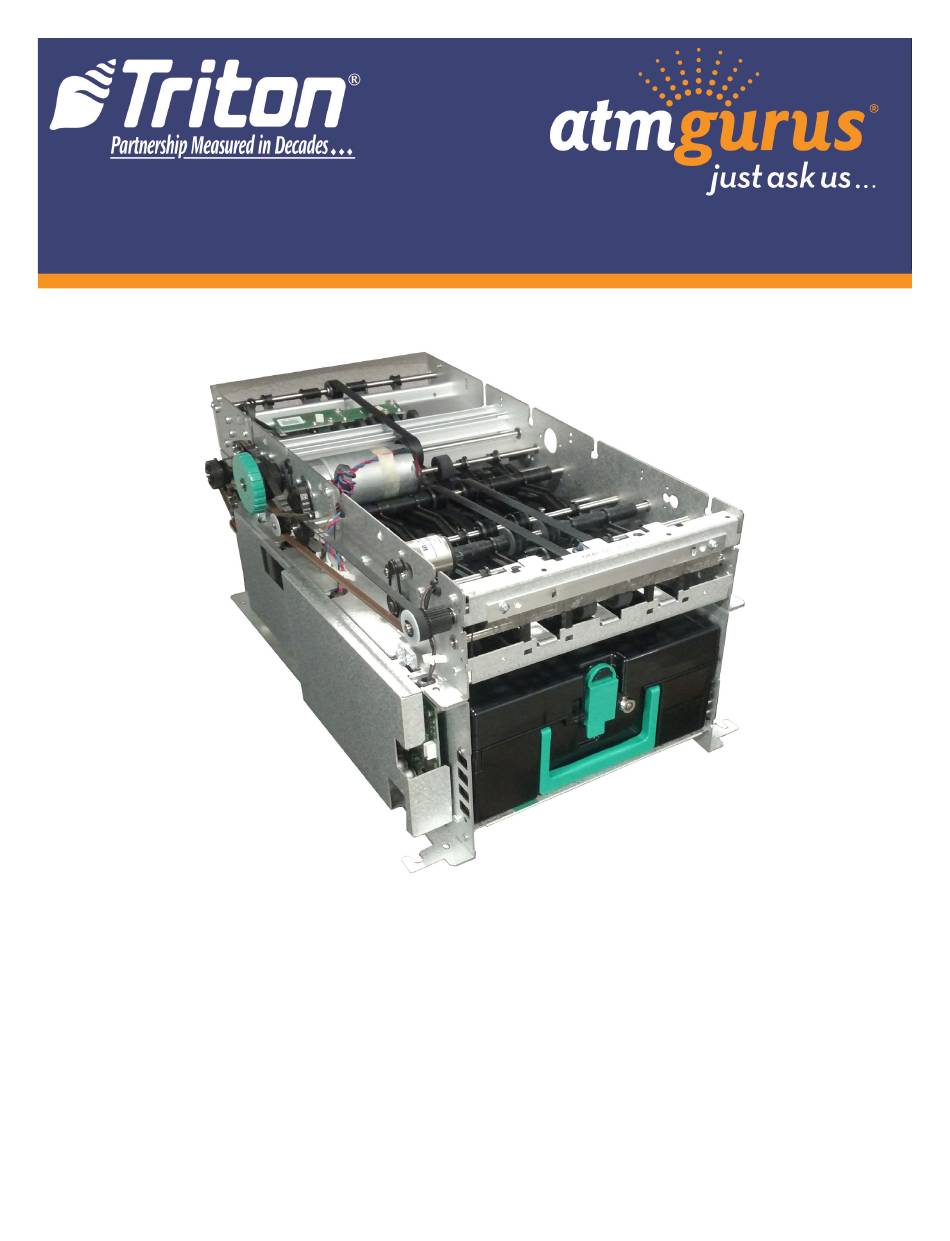

ARGO SDD TO MMR50
Field Upgrade Kit Instructions
©2022 Triton Systems of Delaware, LLC. All Rights Reserved. ATMGurus®, the ATMGurus logo and tagline,
Triton®, and the Triton logo are all registered trademarks of Triton Systems of Delaware, LLC. The third
party trademarks that may be identified herein are the trademark of their respective owners. Triton disclaims any
affiliation, connection, or association between its products and services, and those of the respective trademark
owners, or any sponsorship or approval of its products and services by such trademark owners.
TDN 07103-04303

Advertisement

loading
Need help?

Need help?

Do you have a question about the atmgurus ARGO SDD TO MMR50 and is the answer not in the manual?

Questions and answers

Related Manuals for Triton atmgurus ARGO SDD TO MMR50

Summary of Contents for Triton atmgurus ARGO SDD TO MMR50

  • Page 1 ©2022 Triton Systems of Delaware, LLC. All Rights Reserved. ATMGurus®, the ATMGurus logo and tagline, Triton®, and the Triton logo are all registered trademarks of Triton Systems of Delaware, LLC. The third party trademarks that may be identified herein are the trademark of their respective owners. Triton disclaims any affiliation, connection, or association between its products and services, and those of the respective trademark owners, or any sponsorship or approval of its products and services by such trademark owners.

  • Page 2: Revision History

    This guide covers configuration information for Level 1 Vault and Business Hours deep cabinet ATMs. scope This manual applies to all service personnel involved in installing, configuring, or upgrading hardware/software on Triton ATMs nationwide and abroad. application This configuration guide provides information and easy-to-follow instructions for upgrading the SDD Dispenser to the MMR50 Dispenser.

  • Page 3: Tools Required

    Security Module and MiniMech/MMR50 Power Cable Screw | #8-32 | 3/8” | Pan Phil Head w/EXT tooth Washer 6” Ty Wrap Cable Clip | 3/4” Round | Screw-In | Quick release Cable Clamp | Vinyl Coated TDN 07103-04303 Triton Systems ©...
  • Page 4 • Before starting the SDD to MMR050 Conversion installation, verify the ATM software has the minimum software version: 4.2.3.6 installed onto the ATM. If not, obtain Technical Bulletin 22-02, ARGO 4.2 MMR050 Software Release Notes, at www.triton.com web page and follow instructions to load the correct software for your ARGO ATM.
  • Page 5 4. On the back of the dispenser, loosen the two thumbscrews and remove the communication cable, Left Image. Disconnect the power cable, Right Image. 5. Remove and set aside the dispenser from the unit. PRIME the cassette and insert into SDD. TDN 07103-04303 Triton Systems ©...
  • Page 6 2-pin power cable, arrow, from the security module. Right Image, use the 11/32” nut driver to remove the 11/32” nut, Yellow arrow, and washer. Use the small screwdriver to pry apart the bracket and remove the cable. TDN 07103-04303 Triton Systems ©...
  • Page 7 Security Module power cable and ground into lower cabinet. 11. Cut the 3 Ty wraps, arrows, from the tubing. Remove the cable and wire from the tubing. Save the tubing for the upgrade cables. TDN 07103-04303 Triton Systems ©...
  • Page 8 14. Route the data cable from the security module to the MMR dispenser through the clip shown, Left Image. Loop the data cable up through the top clip and back down through the first clip, Right Image. TDN 07103-04303 Triton Systems ©...
  • Page 9 16. Pull the excess Data cable back up to the clips and make a “Bow”, Left Image. Place the excess cable into the clip, Right Image. 17. Obtain the black tubing used with the SDD cables from step 11. Place the cables into the tubing. TDN 07103-04303 Triton Systems ©...
  • Page 10 19. From the kit, obtain clip, Item 6, and slip over the tube. Secure clip to rail using screw, Item 4. 20. Route the ground wire through the back-right clip. Close the clip, Left Image. Continue routing the ground wire down through the white clip, Right Image. TDN 07103-04303 Triton Systems ©...
  • Page 11 23. Obtain the MMR050 dispenser and remove the cassette. Using the T20 Torx screwdriver, remove the two GREEN circles, and install two cable clamps, Item 7, with same screws to the chassis. screw, arrows, TDN 07103-04303 Triton Systems ©...
  • Page 12 Right Image. 26. Bend the clip around the Data cable to keep it in place, Left Image. Bend the back clip over and down the tubing. Tuck the end in behind the metal flange, Right Image. TDN 07103-04303 Triton Systems ©...
  • Page 13 If the POST screen displays Found Dispenser MMR050 2016-02.D3, continue to management functions to configure ATM. 30. If the ATM does not find the dispenser, as shown below, the opening screen should have error code 363. Open the Management Functions screen and continue to next step. TDN 07103-04303 Triton Systems ©...
  • Page 14 33. Navigate to Management Functions > Diagnostics (2) > Dispenser (4) > Cassette Parameters (8). 34. Select the Multiple Amount (8) to set the denomination in the active cassette. 35. Press the Enter button on the warning prompt. Remove cassette from dispenser, then press the Enter button. TDN 07103-04303 Triton Systems ©...
  • Page 15 Cassette Parameter menu. 39. Press the Save and Return button to return to the Cassette Dispenser Diagnostics menu. 40. Press the Exit Management Functions button and return ATM for customer use. End of MMR050 Procedure TDN 07103-04303 Triton Systems ©...
  • Page 16 TDN 07103-04303 Triton Systems ©...
