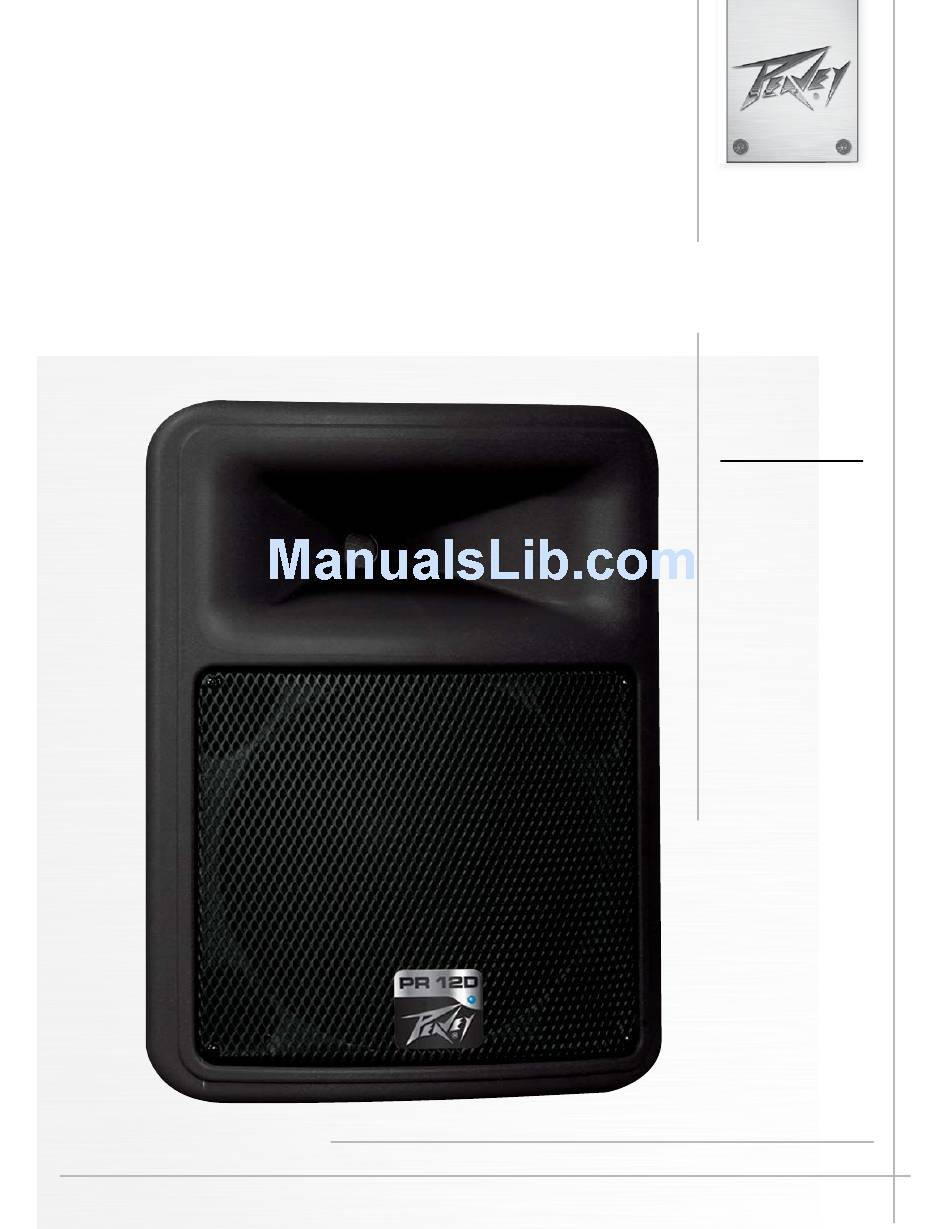

  • Page 1 12 D ® Powered bi-amplified two-way speaker system Operating Manual www.peavey.com...
  • Page 2 ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé. AVIS: Dans le but de reduire les risques d’incendie ou de decharge electrique, cet appareil ne doit pas etre expose a la pluie ou a l’humidite et aucun objet rempli de liquide, tel qu’un vase, ne doit...

  • Page 3: Important Safety Instructions

    WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
  • Page 4 Description The Peavey PR 12D is a powered, bi-amplified, two-way speaker system engineered to provide very high levels of performance in a compact powered loudspeaker. The PR 12D is capable of up to 120 dB peak SPL. The enclosure utilizes tough polypropylene in an injection-molded plastic trapezoidal form, with a coated steel grille to offer an attractive yet-durable powered speaker system.
  • Page 5 With the optional monitor stand kit, the Peavey PR 12D makes an excellent stage monitor. A typical signal source for the line-level inputs of the Peavey PR 12D would be a sound reinforcement mixing console (mixer) or the output from a CD player, iPod player or tape deck. A dynamic microphone can be connected and used as well.

  • Page 6: Ground Lift

    Illuminates green when PAD switch (6) is in line-level mode, and yellow when the PAD is in mic-level mode. VOLuME Controls the gain (level) of the Primary Input (5), Channel 1, of the powered speaker system. It is used to directly set the system output level for the Channel 1 input signal.
  • Page 7 This system is capable of SPL in excess of 120 dB at 1 M from the speaker! Flying the PR ® Caution: The suspending or flying of the Peavey PR 12D must be done by a certified structural ® engineer.
  • Page 8 PR 12D with a Subwoofer The built-in pole adapter allows use with the Peavey SP Subcompact 18X and the accessory pole that it is designed to use, Peavey part #00326540.

  • Page 9: Troubleshooting

    The power/clip LED will be illuminated RED if this is the case. If so, turn off the PR 12D and let it cool for a sufficient amount of time. If there is still no output, contact your authorized Peavey dealer or the Peavey International Service Center. Hum or Buzz ®...

  • Page 10: Care And Maintenance

    If, after checking all the things listed to check and anything else you can think of to check safely, and the system still exhibits problems, carefully note all conditions and check with your Peavey dealer for advice. Care and Maintenance Your PR 12D is a sturdy and durable product and will provide years of reliable use if properly cared for.
  • Page 11 The outside dimensions shall be: 23.69” tall by x 17.81” wide (10.00” in rear) by x 13.75” deep, and the weight shall be 28 lbs. Power requirements shall be: 100 Watts nominal, 100 & 120 VAC, 50/60 Hz Domestic and 220-240 VAC, 50/60 Hz (Export). The loudspeaker system shall be called a Peavey PR 12D.

  • Page 12: Specifications

    ® (FG# 00370480) Net Weight: 28 lbs. Additional Remarks: Also available as a passively crossed- over unit, the Peavey PR 12. ELECTRONICS AND AMPLIFIER SPECIFICATIONS: Electronic Input Impedance (Nominal): Primary balanced input: 20 k Ohms line level sensitivity selected, 2.4 k Ohms mic level sensitivity selected, 10 k Ohms unbalanced 1/4".

  • Page 13: Frequency Response Curves

    Amplitude Response (1m On-Axis) Figure 1 Features and specifications subject to change without notice. Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian • MS • 39305 (601) 483-5365 • FAX (601) 486-1278 • 80305570 • www.peavey.com Frequency (Hz)
  • Page 14 What Peavey Will Do We will repair or replace (at Peavey’s discretion) products covered by Warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for Warranty service, the consumer must pay initial shipping charges. If the repairs are covered by Warranty, Peavey will pay the return shipping charges.
  • Page 15 U.S. customer warranty registration. Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005 The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005...
