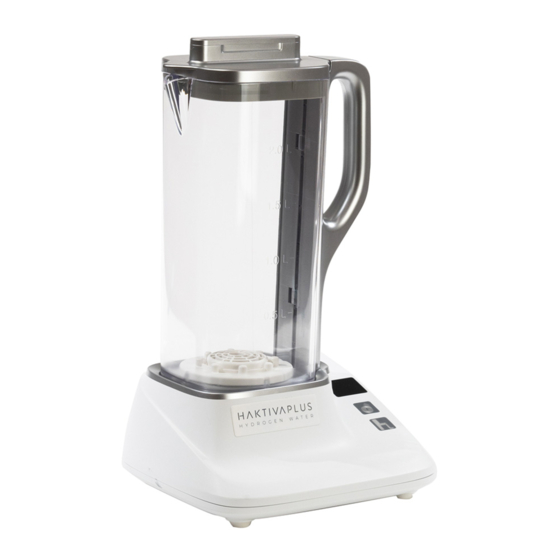

Puricom Europe HAKTIVA PLUS User Manual

Portable hydrogenated water generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAKTIVA PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for Puricom Europe HAKTIVA PLUS

Summary of Contents for Puricom Europe HAKTIVA PLUS

  • Page 1 USER MANUAL...

  • Page 3: Table Of Contents

    USER MANUAL INDEX 1. MAIN CHARACTERISTICS 2. INTRODUCTION 3. TECHNICAL CHARACTERISTICS 4. UNPACKING AND VERIFICATION OF CONTENTS 5. PRIOR WARNINGS 6. INSTALLATION AND START-UP 7. OPERATION 8. USER INTERFACE 9. MAINTENANCE AND CLEANING 10. USE OF HYDROGENATED WATER 11. IDENTIFICATION AND PROBLEM RESOLUTION GUIDE eleven 12.

  • Page 4: Main Characteristics

    1. MAIN CHARACTERISTICS Hydrogen generation. Reduction of the oxide reduction potential (ORP). Easy maintenance. It does not treat mains water. Treat filtered / RO water.

  • Page 5: Introduction

    2. INTRODUCTION Congratulations. You have acquired an excellent equipment for treating drinking water that increases the concentration of dissolved hydrogen in the water and reduces the ORP. What is Hydrogen? Hydrogen is the chemical element with atomic number 1. It is the lightest of the elements and the most abundant in the Universe, although not on Earth.

  • Page 6: Unpacking And Verification Of Contents

    Working conditions 220mm x 205mm x 380mm Dimensions (A x B x C): Weight (empty): 1.5Kg Electrical power supply: AC (100-240) V ~ 50 / 60Hz: 0.6 ~ 0.8A DC 12V / 2A Working temperature (min - max): 3ºC ~ 40ºC 15 ºHF Hardness (max): TDS (min - max):...
  • Page 7 • The equipment must not be used in places where the ambient Its temperature should not be higher than 40ºC. Otherwise it may temperature can drop below 5ºC, as the water contained could cause a malfunction. freeze and cause damage to the product (3). •...

  • Page 8: Installation And Start-Up

    • Do not arbitrarily attempt to disassemble, repair or modify • Place the jug in the center of the base and fill it with the water you want to equipment after equipment failure. The repair must be carried out by hydrogenate.

  • Page 9: Maintenance And Cleaning

    The display will show the message “O3” for 4 seconds accompanied by a short beep, to indicate that the cleaning mode has been activated. This process takes 15 minutes and you can see the remaining time on the screen. When the hydrogenation process is complete, the message “Ed”...

  • Page 10: Use Of Hydrogenated Water

    • If you are not going to use the carafe for more than a week, empty it and disconnect it from the power supply. Recommended maintenance *: After more than a week without using the jug, you will need to empty FREQUENCY ACTION it and rinse it with tap water before using it.

  • Page 11: Identification And Problem Resolution Guide

    11. IDENTIFICATION AND PROBLEM RESOLUTION GUIDE PROBLEM SOLUTION POSSIBLE CAUSE Power adapter disconnected. Failure in the Check the feeding. Contact the SAT if it is a transformer problem. The touch panel does not power supply. work. Replace the jug on the base. Contact The base and the jar are not connected.

  • Page 12: Warranty

    12. WARRANTY...
  • Page 14 NOTES...
  • Page 15 NOTES fifteen...
