Page 3: Radio Frequency Immunity (Rfi) Scanning Outline

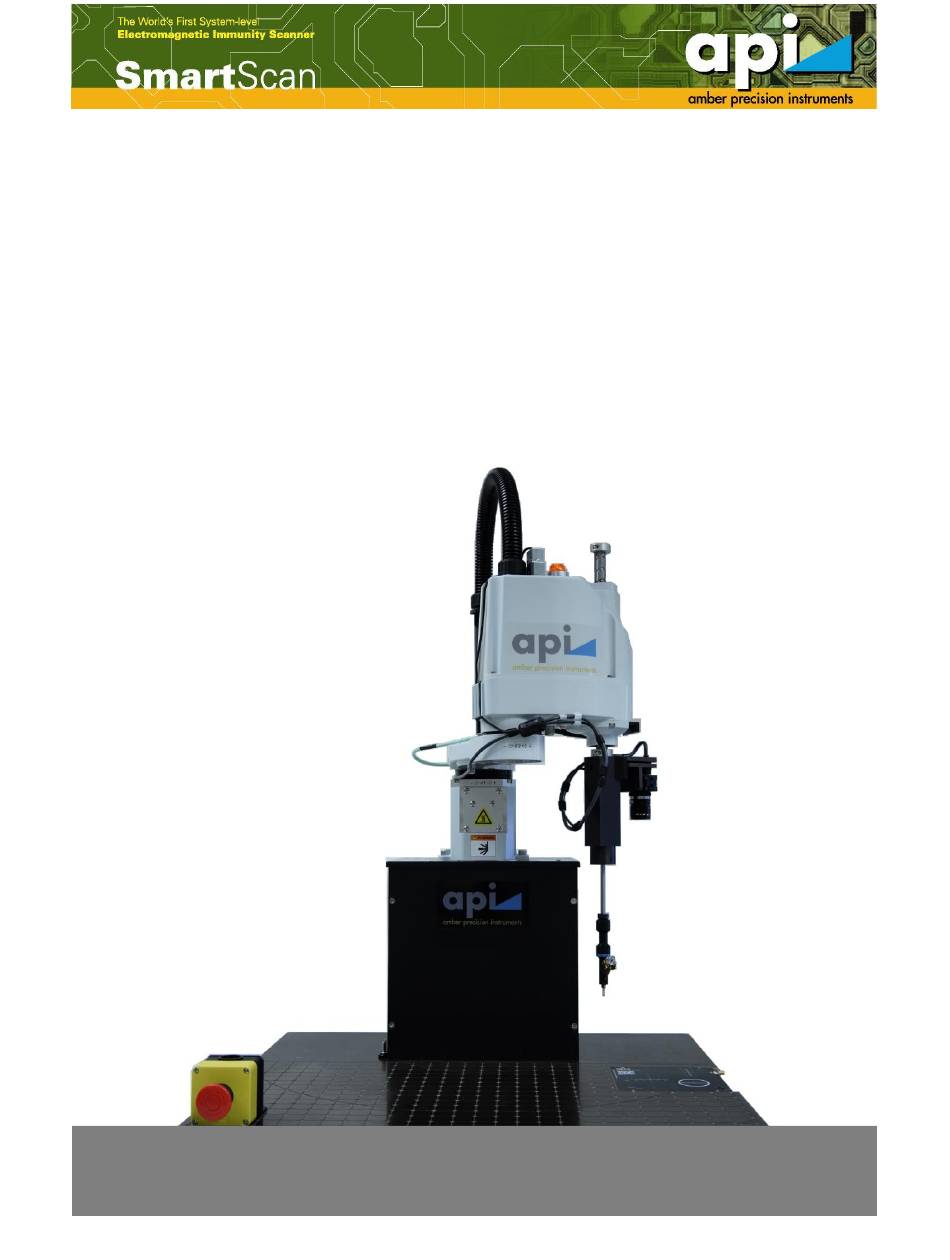

1. Radio Frequency Immunity (RFI) Scanning Outline Configuration Diagram Below (Figure 1) is a block diagram of the scanning system for RFI measurement. Movement of the probe is automated via a four axis scara robot controlled by SmartScan software. Collected data is displayed on a monitor and superimposed on the device under test (DUT). - Page 4 The attached probe moves to user-specified probing positions by one four-axis scara robot. The robot provides 4 degrees of movement: along x-axis, y-axis, z-axis, and 360° rotation (both clockwise and counterclockwise directions). Probe The probe induces an ESD disturbance to the DUT. Four different probe types are available to inject magnetic or electric fields in directions of x, y and z movement.
-
Page 5: Diagram Of Rfi Measurement Wiring
Figure 2: Measurement setup diagram of RFI scanning. 2. RFI Scanning Operation Procedures It is required user to read “API SmartScan V5.0 Operation Manual (Common Part)” before starting the RFI measurement. For detailed operation procedures, also refer to “API SmartScan V5.0 Operation Manual (Common Part)”. -
Page 6: Figure 3: Create A New Workspace
Figure 3: Create a new workspace. Figure 4: Name the workspace and save in a directory. -
Page 7: Figure 5: Create A New Rfi Project
Figure 5: Create a new RFI project. Figure 6: Name the RFI project. -
Page 8: Capture The Dut Image
Capture the DUT image Double click on “Scan Area Settings”. Click on the “Snapshot” icon. Move the robot to where the camera is on top of DUT, then click on “Take Picture” to capture a DUT image. Figure 7: Capture DUT image. Define probe Z offset Click on “Calibrate Probe Z offset”... -
Page 9: Define A Reference Point To Get Dut Height And Calibrate Probe Xy Offset
Figure 9: Probe Z offset calibration window. Define a reference point to get DUT height and calibrate probe XY offset Place a reference point in the DUT image (location of reference point can be random, but better to choose a point where probe can be easily aligned). Measure the DUT height (= reference point height). -
Page 10: Figure 11: Detect Dut Height By Touch Sensor
Figure 11: Detect DUT height by touch sensor. Figure 12: Get DUT height manually. Calibrate probe XY offset. Figure 13: Calibrate probe XY offset. -
Page 11: Define Scan Area And Scan Height
Figure 14: Probe XY offset calibration window. Define scan area and scan height Please refer to “API SmartScan V5.0 Operation Manual (Common Part)” for detailed information. Check instrument and SmartScan software connection Build connection between SmartScan and instrument. Select the corresponding signal generator model, communication port and click on “Test Connection”... -
Page 12: Open "Instrument Settings" Window And Set Parameters
Figure 16: Signal generator communication setting window. Open “Instrument Settings” window and set parameters Go to “Instrument Settings”. User can choose the sweep mode, modulation mode, frequency range, power value etc. according to measurement requirements. Figure 17: Instrument settings window. -
Page 13: Run Measurement
Run measurement Click the “Run” button to run scanning. Figure 18: Run measurement.
