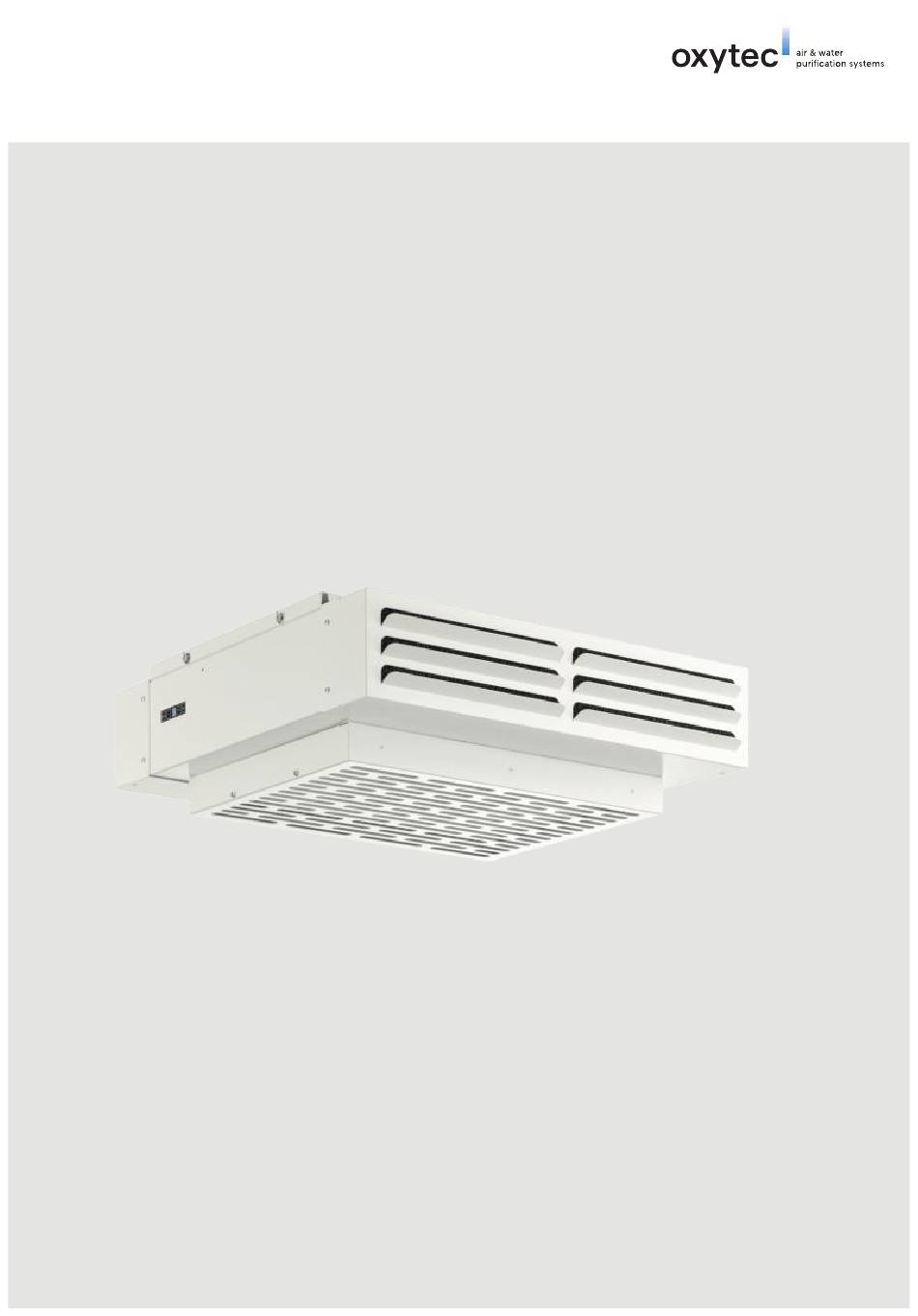

- Page 1 OPERATING AND MAINTENANCE INSTRUCTIONS CLEANAIR SKY NT PLASMA UNIT WITH VOLUME PLASMA FOR ROOM AIR DISINFECTION AND ODOUR ELIMINATION...
-
Page 2: Table Of Contents
1. Safety instructions 1.1 Safety and warning labelling 1.2 Intended use 1.3 Foreseeable misuse 1.4 General safety instructions 2. Technical Data 3. The Cleanair Sky 3.1 Pre-filter stage 3.2 Fan 3.3 NTP-Electrode 3.4 Product filter 3.5 Activated carbon catalyst 3.6 Remote control 3.7 Time programs... - Page 3 OPERATING AND MAINTENANCE INSTRUCTIONS 5. Operation 5.1 Overview remote control 5.2 Switch on the unit 5.3 Select fan level 5.4 Power level 5.5 Switch off the unit 5.6 Display 6. Maintenance and Care 6.1 Cleaning 6.2 Change pre-filter 6.3 Change activated carbon filter 6.4 Maintenance intervals 6.5 Malfunction 6.6 Spare parts...
- Page 4 Environment Agency for realistic conditions. The situation was simulated in a classroom. Unlike many room air purifiers, the Cleanair Sky does not work with a HEPA filter in which the living viruses get stuck and which has to be changed regularly under elaborate protective measures.
-
Page 5: Safety Instructions
OPERATING AND MAINTENANCE INSTRUCTIONS 1. Safety instructions 1.1 Safety and warning labelling Warning of dangerous electrical voltage Motor/High-voltage transformer Rotating parts/Fan/Motor... -
Page 6: Intended Use
Any use other than that specified under the intended use shall be deemed to be improper use. oxytec accepts no liability for consequences arising from improper use. The guarantee does not apply to damage or defects caused by non-compliance with the operating instructions. - Page 7 OPERATING AND MAINTENANCE INSTRUCTIONS Danger to life from electric shock: An electric shock can lead to serious injuries or even death. Do not operate a unit that is damaged. • Only connect the unit to a mains voltage according to the type plate. •...
-
Page 8: Technical Data
OPERATING AND MAINTENANCE INSTRUCTIONS 2. Technical Data Housing Aluminium Powder-coated Power supply Voltage 230 V 50 – 60 Hz Power <80 Watt Power Fixed connection Cable length 80cm Level 1 – 4 selectable Fan speed 1 150 m³/h <30dB 21 Watt Fan speed 2 265 m³/h <39dB... -
Page 9: The Cleanair Sky
OPERATING AND MAINTENANCE INSTRUCTIONS 3. The Cleanair Sky Whether in waiting rooms, conference rooms, workrooms or living rooms. – the air is enriched with bioaerosols as well as dust. These can become become a source of infection in times of pandemic. The Cleanair inactivates viruses, bacteria and spores highly effectively. -
Page 10: Pre-Filter Stage
OPERATING AND MAINTENANCE INSTRUCTIONS 3.1 Pre-filter stage A filter cassette with filter class G4 is installed in the intake in the base plate of the unit. Its task is to remove the dust from the room air. Changing the filter is very easy. The unit does not have to be opened for this. 3.2 Fan An EC centrifugal fan with backward curved blades is installed. -
Page 11: Remote Control
OPERATING AND MAINTENANCE INSTRUCTIONS 3.6 Remote control An infrared remote control allows the unit to be switched on and off and the overrun levels to be selected. 3.7 Time programs These levels can also be adjusted via the remote control. Power level: In this level, the unit operates with a volume flow of 600 m³/h. -
Page 12: First Use
OPERATING AND MAINTENANCE INSTRUCTIONS 4. First use 4.1 Preliminary remark The unit was thoroughly checked and carefully packed before leaving the factory. If the packaging is damaged or opened, check the unit for external damage immediately upon receipt. Never put a damaged unit into operation. In the event of a complaint, contact your supplier immediately. - Page 13 OPERATING AND MAINTENANCE INSTRUCTIONS...
-
Page 14: Operation
OPERATING AND MAINTENANCE INSTRUCTIONS 5. Operation 5.1 Overview remote control Plus-Button Restore-Button Minus-Button Pause-Button Menu-Button 5.2 Switch on the unit Either Restore-Button: Unit starts in the stage, in which it was switched off. Plus-Button: Unit starts with level 1. 5.3 Select fan level Select the appropriate level (1 –... -
Page 15: Switch Off The Unit
OPERATING AND MAINTENANCE INSTRUCTIONS 5.5 Switch off the unit Minus-Button Level 0: The unit then switches off or to standby. Or Menu-Button: Unit switches off after 30 minutes. During the display flashes. The overrun can be switched off by pressing the button again. -
Page 16: Maintenance And Care
OPERATING AND MAINTENANCE INSTRUCTIONS 6. Maintenance and Care 6.1 Cleaning Clean the outer cover only with a soft cloth and not with abrasive or corrosive cleaning agents. 6.2 Change pre-filter Only change the filter when it is switched off. To change the prefilter, open the inspection flap and pull out the filter cassette. -
Page 17: Maintenance Intervals
OPERATING AND MAINTENANCE INSTRUCTIONS 6.4 Maintenance intervals Pre-filter: You should change the filter every 3 to 6 months by pulling out the filter cartridge.Product filter and activated carbon catalyst: after 9000 operating hours. Product filter and activated carbon catalyst: after 9000 operating hours. With eight hours of operation per day, this corresponds to five years. -
Page 18: Spare Parts
OPERATING AND MAINTENANCE INSTRUCTIONS 6.6 Spare parts Product name Description Dimensions in mm Filterset Sky Replacement filter set consisting of Prefilter G4 Product filter F9, 2 Activated carbon catalysts, 4 Prefilter Sky Prefilter G4 392 x 495 x 24 (L x W x H) Product filter F9 F9 Filters, 2 595 x 130 x 25 (L x W x H) -
Page 19: General Information
Your invoice is valid as a warranty certificate. Please contact your oxytec dealer if required. This guarantee does not apply if you treat the Cleanair Sky improperly and in case of normal wear and tear. The guarantee also expires if you or a third party modify... -
Page 20: Certificates
Institutsleitung Prof. Dr. Philip Leistner Prof. Dr. Klaus Peter Sedlbauer IBP-Bericht Nr. UHS-054/2021 Effizienz des Raumluftreinigers von oxytec (Cleanair Sky L) auf die Reduktion und Inaktivierung von luftgetragenen Viren Durchgeführt im Auftrag der oxytec AG Herrn Dr. Christian Haverkamp Bahnhofstr. 52 8001 Zürich... - Page 21 In comparable studies, often only salt water is evaporated in the room or viruses are only tested in a test tube or on a filter. Inside the Cleanair Sky, the air flowing through it is put into a non-thermal plasma state for an extremely short time and the viruses are inactivated.
-
Page 22: Service
OPERATING AND MAINTENANCE INSTRUCTIONS 7.5 Service If you have any questions about your Cleanair Sky, please feel free to contact us. You can reach our customer service at: oxytec ag | Bahnhofstraße 37 | CH-8001 Zürich | P + 41 (0) 44 214 62 94 | F + 41 (0) 44 214 65 19... - Page 23 OPERATING AND MAINTENANCE INSTRUCTIONS ADDRESSES ORDER ACCEPTANCE INFORMATION Phone 00 49 40 480 967 73 Internet www.oxytec.com Germany oxytec GmbH 00 49 40 480 967 72 Email order@oxytec.com Geibelstr. 64 | 22303 Hamburg Switzerland Phone 00 41 44 214 6294 Internet www.oxytec-ag.com...
