Ellison Panel
Beds
AST = Astoria Sky finish
Assembly Instructions
Model #
2210ASTa

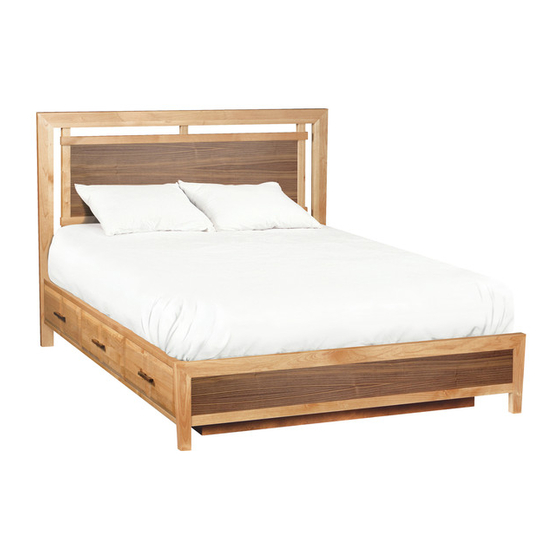

Ellison Queen Panel Bed
2213ASTa
Ellison King Panel Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Remove items before you move this unit.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
11/21
Advertisement
Table of Contents
Related Manuals for Whittier Wood Furniture 2210ASTa
Summary of Contents for Whittier Wood Furniture 2210ASTa
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 2210ASTa Ellison Queen Panel Bed 2213ASTa Ellison King Panel Bed Parts List Please note this Assembly Instruction is for all four beds. Please identify the bed part number when ordering parts. Please identify the parts and check that the quantities received match those on this list. If you need to replace a part, refer to the model number, part letter and name.
- Page 3 2210ASTa Ellison Queen Panel Bed 2213ASTa Ellison King Panel Bed Parts List 2212AST Queen/King Panel Rail Kit (x1) Part Description Quantity Small Left Bed Bracket (attached) Small Right Bed Bracket (attached) Side Rail #8 x 5/8" Flat Head Screw (inserted) #10 x 2"...
- Page 4 2210ASTa Ellison Queen Panel Bed 2213ASTa Ellison King Panel Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver Remove the Slats (D) from the back of the Headboard (A) and place them off to the side. See Figure 1.
- Page 5 2210ASTa Ellison Queen Panel Bed 2213ASTa Ellison King Panel Bed Assembly Instructions This assembly requires two people. Repeat step two for the other side. See Figures 3 and 3a. Fig. 3a Fig. 3 Align the Brackets on both sides and slide the Side Rail/Footboard assembly down on to the Headboard (A).
- Page 6 2210ASTa Ellison Queen Panel Bed 2213ASTa Ellison King Panel Bed Assembly Instructions This assembly requires two people. Attach an Assembled Foot (C) to four of the five Slats (D) as shown in Figure 5. Fig. 5 Move the bed assembly to its final position. Position the Slats (D) on the bottom edges of the rails and place the slat without the Assembled Foot nearest to the Footboard.
