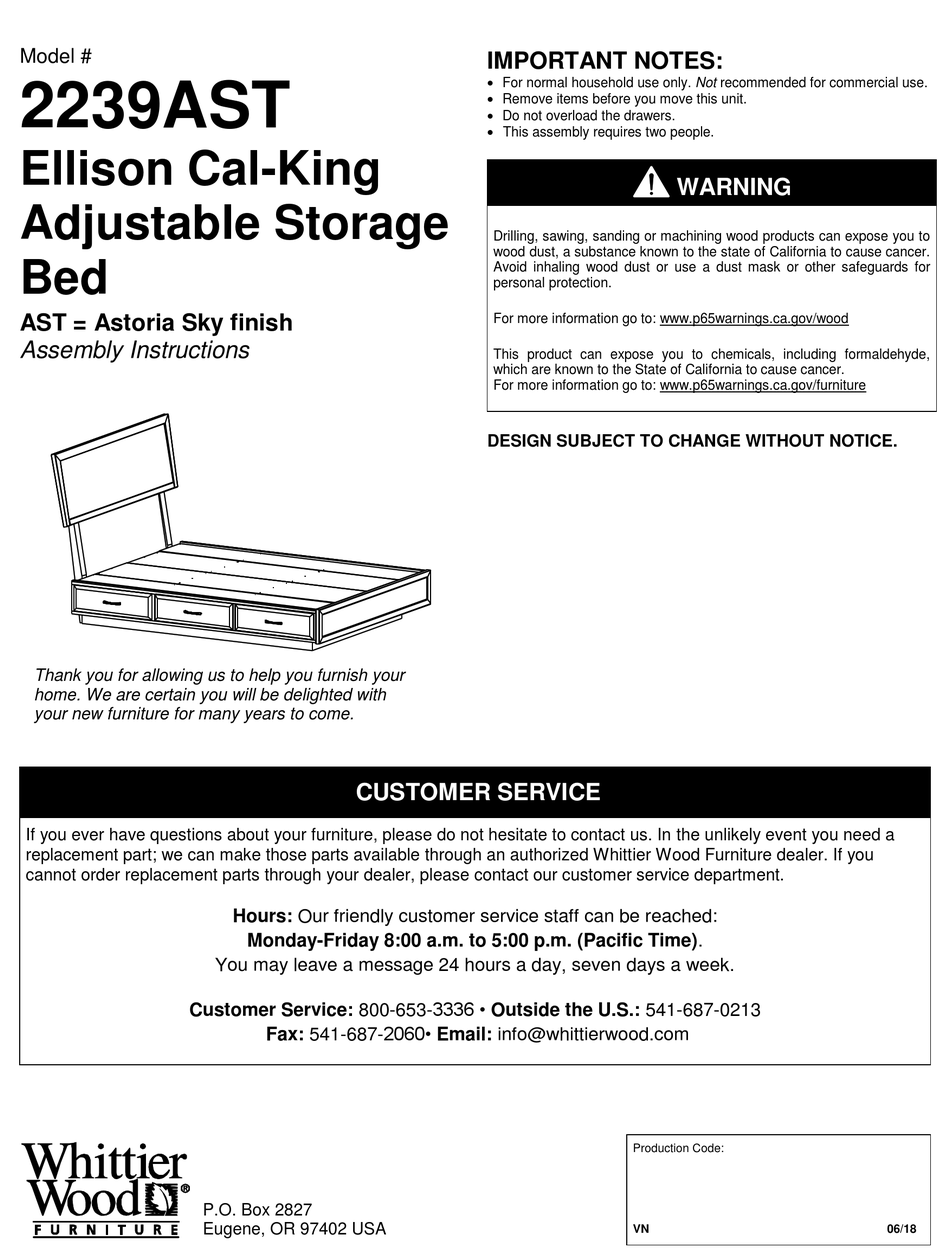

2239AST
Ellison Cal-King
Adjustable Storage
Bed
AST = Astoria Sky finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
For normal household use only. Not recommended for commercial use.
Remove items before you move this unit.
Do not overload the drawers.
This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
06/18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood Furniture Ellison 2239AST
Summary of Contents for Whittier Wood Furniture Ellison 2239AST
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
-
Page 2: Parts List
2239AST Ellison Cal-King Adjustable Storage Bed Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. 2240AST Ellison Cal-King Adjustable Headboard/Footboard Kit (x1) Part Description Quantity... - Page 3 2239AST Ellison Cal-King Adjustable Storage Bed Parts List 2226AST Ellison Cal-King Pedestal Kit (x2) Part Description Quantity Pedestal Drawer Box (assembled) Drawer Face (attached) Left/Right Center Deckboard 20" Drawer Slides (installed) 3 sets #6 x 3/4" Philtruss Screw (inserted) #6 x 1/2" Philtruss Screw (inserted) #8 x 7/8"...
- Page 4 2239AST Ellison Cal-King Adjustable Storage Bed Parts List 2228AST Ellison Cal-King Base Kit (x1) Part Description Quantity Mitered End Support Square End Support Left Support Right Support Cal-King Trestle Rail (26-7/8") #8 x 1-3/4" Pan Head Screw (inserted) #10 x 3/4" Pan Head Screw (inserted) 5/16"...
- Page 5 2239AST Ellison Cal-King Adjustable Storage Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver, 1/2" open end or box end wrench, Tape measure and Z Hex Wrench which is attached to the back right leg of the Headboard. See Figure 1b. The Headboard for this bed is adjustable.
- Page 6 2239AST Ellison Cal-King Adjustable Storage Bed Assembly Instructions This assembly requires two people. Set aside part Trestle Rail (T) for use later in the assembly process. Use the notch and dowels on Square End Support (Q) and Mitered End Support (P) as a guide attach to the Right Support (S) using the Hex Bolts (ZC) and Washers (ZG) from the Headboard/Footboard Kit.
- Page 7 2239AST Ellison Cal-King Adjustable Storage Bed Assembly Instructions This assembly requires two people. Place each pedestal on top of the base kit against the side of and between the locater blocks of the Base Kit. See Figure 4. Locater blocks Locater blocks Fig.
- Page 8 2239AST Ellison Cal-King Adjustable Storage Bed Assembly Instructions This assembly requires two people. Open the drawers and attach the pedestal to the base using Hex Bolts (ZD) and Washers (ZG) only finger tight. See Figures 5 and 5a. x 10 x 10 Fig.
- Page 9 2239AST Ellison Cal-King Adjustable Storage Bed Assembly Instructions This assembly requires two people. NOTE: When attaching the Footboard to the Pedestal/Base assembly attach it at the end of the Base with the leveler behind the crosspiece. Attach the Footboard (B), with Hex Bolts (ZD) and Washers (ZG).
- Page 10 2239AST Ellison Cal-King Adjustable Storage Bed Assembly Instructions This assembly requires two people. Attach the Headboard (A) with Hex Bolts (ZD) and Washers (ZG). See Figures 7 and 7a. Fig. 7a Fig. 7 2239AST — Page 10 — 06/18...
- Page 11 2239AST Ellison Cal-King Adjustable Storage Bed Assembly Instructions This assembly requires two people. Once the Headboard and Footboard are attached, open all drawers and tighten Hex Bolts (ZD) and Washers (ZG) on the inside of the bed assembly. Adjust levelers (ZA) only if floor is uneven or if bed has movement . See Figures 9 and 9a. Fig.
- Page 12 2239AST Ellison Cal-King Adjustable Storage Bed Assembly Instructions This assembly requires two people. 10. Insert Cal-King Trestle Rail Supports (T). See Figures 10 and 10a. Fig. 10a Fig. 10 11. Place the Left/Right Center Deckboards (F) as shown in Figure 11 and secure with twenty-four #8x1-1/4"...
