Figure 5
1
1 2
2
Figure 6
Wayfair Customer Service, 877-WAYFAIR (877-929-3247) |
4 3
3 4
4 3
4
3
1
1
2
1
A
1
For assistance with assembly or questions contact:

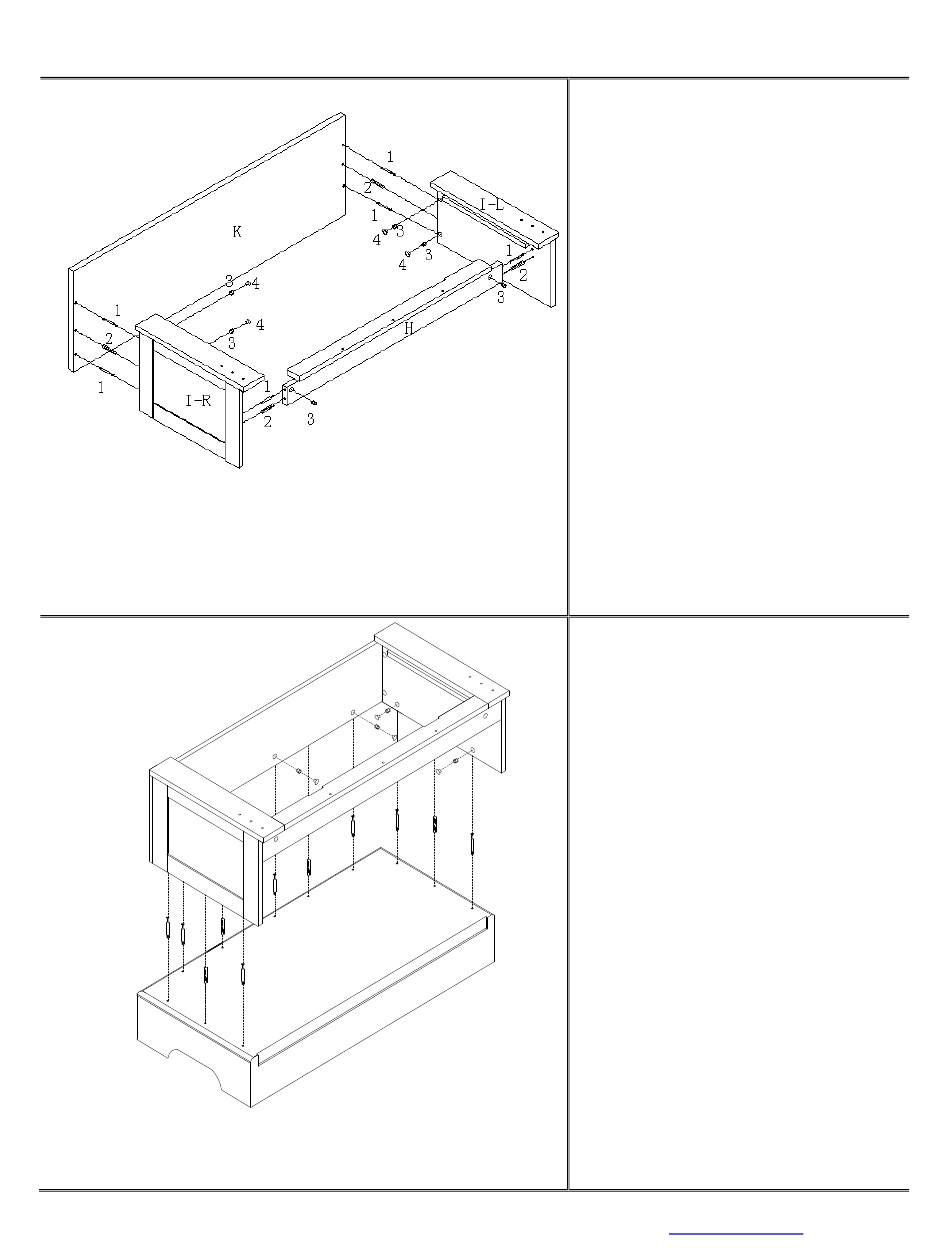

Insert Cam Locks (3) into
predrilled holes on Storage Rail
(H).
Screw Cam Bolts (1) into pre-
drilled holes on Storage Side
Frames (I-L,I-R).
Attach Storage Side Frames (I-
L,I-R) to Storage Rail (H) by
inserting Wood Dowels (2) and
Cam Bolts (1) into corresponding
holes. Tighten by rotating Cam
Locks (3) clockwise using Phillips
screwdriver.
Cover Cam Lock (3) holes with
Plastic Covers (4).
Attach Storage Side Frames (I-
L,I-R) to Storage Front Panel (K)
using Wood Dowels (2) and Cam
Bolts (1).
Insert Cam Locks (3) into
predrilled holes on the unit from
the Figure 5.
Screw Cam Bolts (1) into
predrilled holes on Base (A).
Attach the unit from Figure 5 to
Base (A) by inserting Cam Bolts
(1) and Wood Dowels (2) into
2
corresponding holes. Tighten by
1
rotating Cam Locks (3) clockwise
using Phillips screwdriver.
Cover Cam Lock (3) holes with
Plastic Covers (4)
