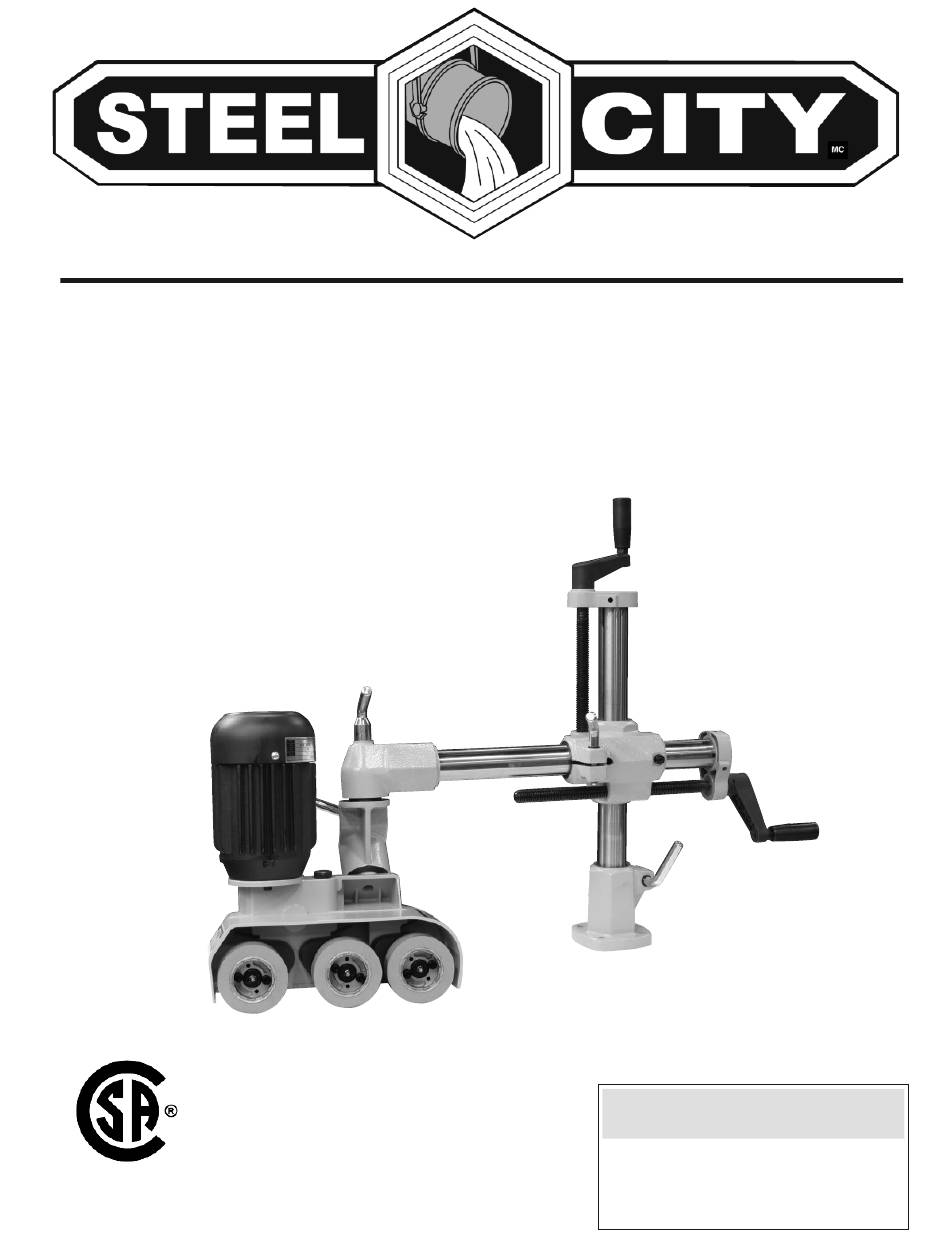

OWNER'S MANUAL
STOCK FEEDER
65-150
Should you require assistance,
please have available your:
Model no.: __________________
VER.06.2016
Serial no.: __________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steel City 65-150

  • Page 1 OWNER’S MANUAL STOCK FEEDER 65-150 Should you require assistance, please have available your: Model no.: __________________ VER.06.2016 Serial no.: __________________...
  • Page 2 Page 2...
  • Page 3: Table Of Contents

    The drawings, illustrations, photographs, and specifications in this user manual represent your machine at time of print. However, changes may be made to your machine or this manual at any time with no obligation to Steel City. Page 3...
  • Page 4: Warranty

    The manufacturer warrants its machines to be free from defects in workmanship and materials for a period of 2 years from the date of the original purchase for Steel City shop machines or for a period of 1 year for Titanium production machines;...
  • Page 5: Product Specifications

    PRODUCT SPECIFICATIONS Motor ⁄ HP (0.188 KW), 110 V Number of rollers Roller size Ø3 ⁄ ’’ x 1 ⁄ ’’ (Ø80 x 30 mm) Roller suspension ⁄ ’’ (18 mm) Feeding speed 20/26/33/43 fpm (6/8/10/13 m/min) Forward/reverse Net weight 73 lbs (33 kg) Page 5...
  • Page 6: General Safety

    SAFETY This manual is not totally comprehensive. It does not and can not convey every possible safety and operational problem which may arise while using this machine. The manual will cover many of the basic and specific safety procedures needed in an industrial environment. WARNING All federal and state laws and any regulations having jurisdiction covering the safety requirements for use of this...
  • Page 7 22. DO NOT operate any machine or tool if under the 4. Prevent electrical shock. Follow all electrical and safety codes, including the National Electrical Code (NEC) and influence of drugs, alcohol, or medication. the Occupational Safety and Health Regulations 23.
  • Page 8: Product Safety

    PRODUCT SAFETY 1. ONLY OPERATE workpiece that exceed 6” dimension 3. ALWAYS consider the cutterhead diameter and rotation between the jointer’s tables or shaper’s guide. speed to adjust feed rate for best results. 4. BEFORE pluging in and starting the machines (feeder 2.
  • Page 9: Electrical And Grounding Instructions

    ELECTRICAL AND GROUNDING INSTRUCTIONS WARNING IMPROPER ELECTRICAL CONNECTION equipment-grounding conductor can result in risk of electric To reduce the risk of electric shock, follow all shock. The conductor with the green insulation (with or electrical and safety codes, including the without yellow stripes) is the equipment-grounding National Electric Code (NEC) and the conductor.
  • Page 10: Assembly

    ASSEMBLY WARNING 2. Clean the mounting surface and apply the supplied self-adhesive drilling template. Fig. 3 The stock feeder and auxiliary machine to which you are mounting the stock feeder should be disconnected from the power source during installation. NOTE: Keep in mind the length of the horizontal arm when mounting the stock feeder so you have room for proper adjustment.
  • Page 11 ATTACHING THE SUPPORT 1. Insert the vertical column assembly (A) into the support and tighten lever (B). Fig. 5 Fig. 5 2. Install over arm (C) into elevating bracket (D) and tighten lever (E). Fig. 5 3. Attach the column cap (F) and the over arm cap (G) using the set screws.
  • Page 12: Adjustments

    Make certain that both machines are disconnected in the OFF position. from the power source. The 65-150 Stock feeder has 4 speeds available – 1. To rotate the entire stock feeder assembly, loosen (20, 26, 33, 43 ft/min.) – (6, 8, 10, 13 m/min.) –...
  • Page 13 STOCK FEEDER HEIGHT STOCK FEEDER ROLLER ADJUSTMENT ALIGNMENT Position the stock feeder so that all of the rollers make contact with and set squarely on the workpiece. Position the stock feeder height so that the distance SEE FIG. 11 between the table and the feed rollers is approximately 1/8”...
  • Page 14: Maintenance

    MAINTENANCE WARNING Make certain that both machines are disconnected from the power source. GREASE 1. Every 200 hours or 30 days, the rollers should be greased using a #2 grease or equivalent. Each roller has grease fitting; refer to indication sticker for grease locations.
  • Page 15 Page 15...
  • Page 16: Parts

    PARTS Page 16...
  • Page 17 Page 17...
  • Page 18 Page 18...
  • Page 19 4 &* % $ - ;/ *& ('*2 : 9$* & : 9$* 4$*. & ('*2 4 &* ('*2 : 9$* 3' % $ - % & * & % $ - % % $ - *& ('*2 7$ & , *' 6 1 #.*' '- % * &...
  • Page 20 NOTES Page 20...
