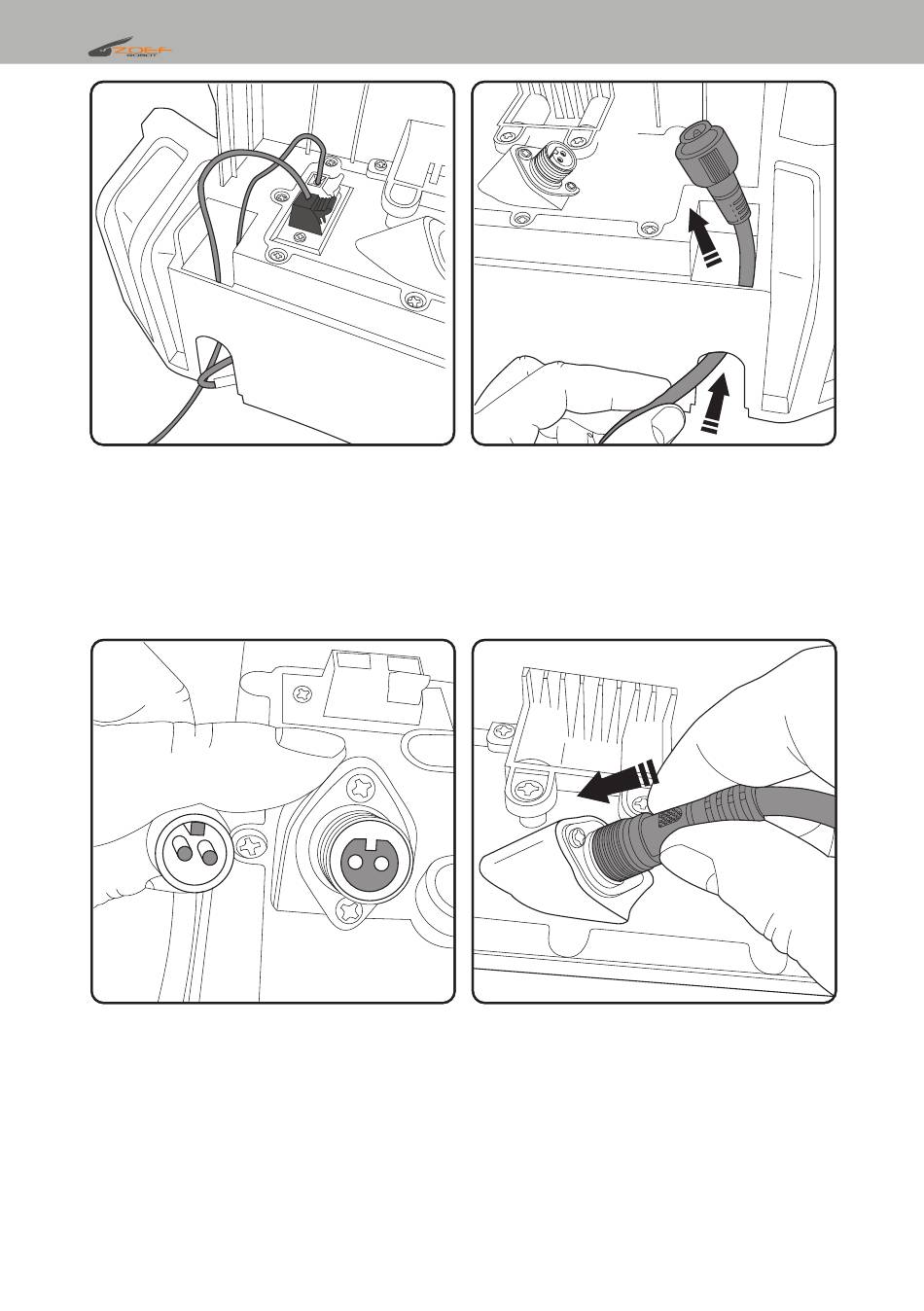

When you have completed your boundary
wire it must return to the charging station
and be fed up through the unit and plugs
in at the black terminal.
Pay attention to the cable fittings as
there is a keyway orientation detail to
ensure correct connection.
wire the power lead up through the other
side of the base station
Push the power cable into place
