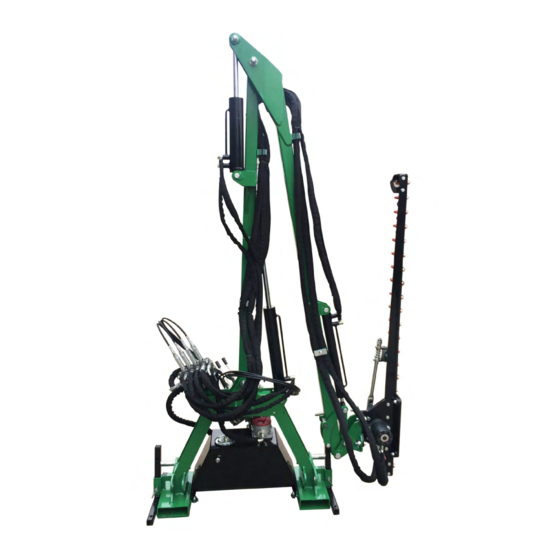

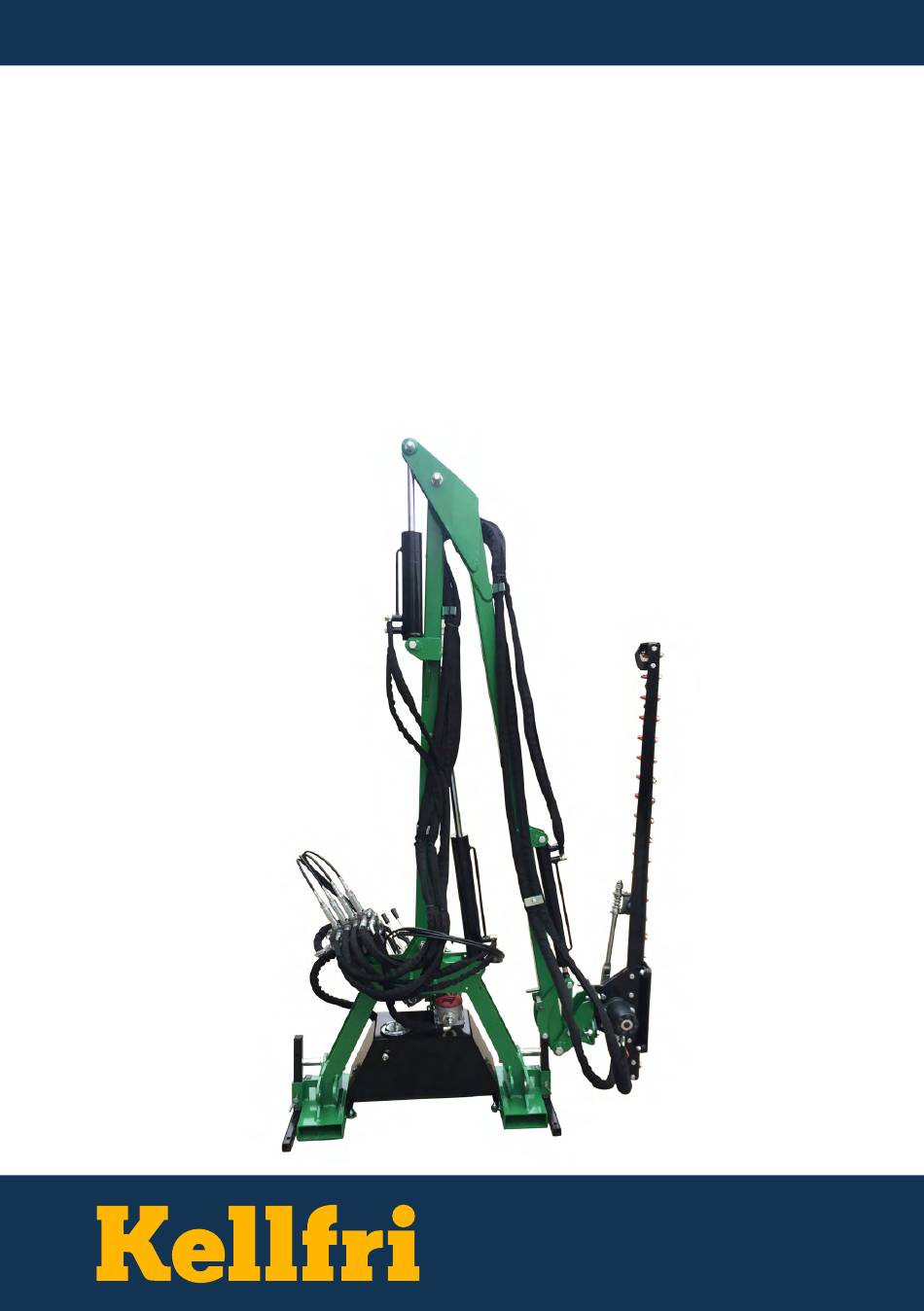

- Page 1 35-HRT1602 HEDGE TRIMMER FOR 3-POINT LINKAGE DOUBLE PUMP Read the operating instructions carefully before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty terms and conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. We recommend that you always read and follow the safety instructions and the instructions in the machine’s operating manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the safety instructions, operating manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’ s equipment and products are aimed at self-employed farmers, horse enthusiasts and other country-dwellers who have stringent demands on performance. -
Page 4: Safety Instructions
For the safety of both yourself and others, it may be a good idea to read through the safety instructions every now and then. If the safety instructions or the operating manual are damaged, or become unusable for any other reason, new copies may be ordered from: Kellfri AB, Munkatorpsgatan 6, SE-532 40 SKARA, Sweden. -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equip- ment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or prod- uct, and only use it as described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. Exercise cau- tion when working with equipment with hydraulic hoses, as oil under pressure can penetrate the skin. -
Page 7: Maintenance And Service
Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: When Using Machine/Attachment That Is Connected To The Tractor
FOR USING MACHINE/EQUIPMENT CONNECTED TO TRACTOR PAY ATTENTION TO THE FOLLOWING: • Carefully read the machine's operating manual before using the machine! It is important that you understand the directions in the manual. • Keep the work area clear of children and other people. Moving parts increase the risk of accidents. -
Page 9: Machines/Attachment Connected To The Hydraulics
MACHINERY/EQUIPMENT CONNECTED TO HYDRAULICS Be careful when you connect your machine or equipment to a hydraulic hose. DANGER! Pressurised oil and fuel leaks can penetrate skin and cause serious injuries. Do not use your hands to locate leaks. Use a piece of paper or cardboard to search for leaks. •... -
Page 10: Risks And Hazards Associated With The Use Of Gardening Machinery
RISKS AND HAZARDS ASSOCIATED WITH THE USE OF GARDEN MACHINERY Risk of crushing Observers can be injured when the machine is lowered in the cutting position. Pasture toppers have crushing points around the hinge areas and between the 3-point linkage and the main body. - Page 11 All unprotected rotating machine parts increase the risk of accidents. Accidents usually occur when loose-fitting clothing or long hair is caught and wrapped around rotating parts, such as PTO shafts or drive shafts on the machine. Ensure that all guards are correctly fitted. Drive safely on public roads •...
-
Page 12: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If apart with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before carrying out work. -
Page 13: Chemicals
CHEMICALS To maximise the service life of a product/equipment, maintenance - and not least preventive maintenance - is important, and this is largely what greases and oils do. Carefully read the operating manuals for your new products or equipment to ensure correct maintenance and service life and that the warranty remains valid! Lubricating grease First aid measures. -
Page 14: Using The Hedge Trimmer
USING THE HEDGE TRIMMER Couple the machine to the tractor’s 3-point hitch, and make sure it is properly secured. Connect the pump to the PTO shaft, make sure that it is securely fastened and that hoses are not bent or trapped in a rotating part of the tractor or machine. The 'lever kit' that you lift into the cab. -
Page 15: 35-Hrt160 Technical Data
35-HRT160 TECHNICAL DATA A1 A2 B1 B2 C1 C2 ° ° ° MIN. MAX. 1,500 480 320 370 550 280 100 Table of contents... -
Page 16: Assembly Instructions
ASSEMBLY INSTRUCTIONS Warning: risk of crushing. The machine is delivered partly assembled. Use a suitable lifting device when lifting the machine from the transport cage. Unload all transport material and prepare all parts for assembly. Make sure that the machine cannot tip over during assembly. Table of contents... - Page 17 Start by securing the boom. This is to prevent the boom falling when re- moving the transport safety device. Loosen the bolt, see A and B. Raise the hydraulic cylinder, see yellow arrow. Remove the transport lock, see C. Fit the cylinder with the bolt, see A into the hole, see D.
- Page 18 Check that all hydraulic couplings and hydraulic hoses are intact. Tighten couplings if necessary. Fill the oil tank with hydraulic oil approx. 20 litres. Connect the machine to the tractor’s three-point linkage and connect the pump to the PTO shaft. Start the machine and run all cylinders to their end positions.
-
Page 19: Lever Functions
HYDRAULIC DIAGRAM Cylinder 1 Cylinder 2 Cylinder 3 Pump cutting head Cylinder 1– Beam (R35-HRT160.081) Cylinder 2 – articulated boom (R35-HRT160.087) Cylinder 3 – Boom cylinder (R35-HRT160.075) Hydraulic engine Hydraulic hoses – J,K,L LEVER FUNCTIONS lifting articulated cutterbar hydraulic boom rotation motor up/down... -
Page 20: Exploded View - Figure 1 Cutter Head
FIGURE 1: CUTTING HEAD Table of contents... - Page 21 FIGURE 1: CUTTING HEAD Item Spare part no. Designation Quantity Item Spare part no. Designation Quantity R35-HRT160.001 M12 x 60 bolt R35-HRT160.030 Nut M12 Hydraulic motor Bearing 6009 R35-HRT160.002 R35-HRT160.031 R35-HRT160.003 Hydraulic coupling R35-HRT160.032 Clamp ring 45 R35-HRT160.004 Nut M12 R35-HRT160.033 Bearing housing Washer...
-
Page 22: Exploded View - Figure 2 Crane
Table of contents... - Page 23 Table of contents...
-
Page 24: Exploded View - Figure 3 3-Point
Table of contents... - Page 25 Table of contents...
-
Page 26: Notes
NOTES: Table of contents... -
Page 27: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 28: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS The warranty’s validity - Kellfri’s warranty is valid for 12 months from the date of purchase The warranty covers - Reimbursement for parts replaced after a material fault or manufac- turing fault has been verified. The warranty does not...
