MT11-HW Installation Guide
Overview

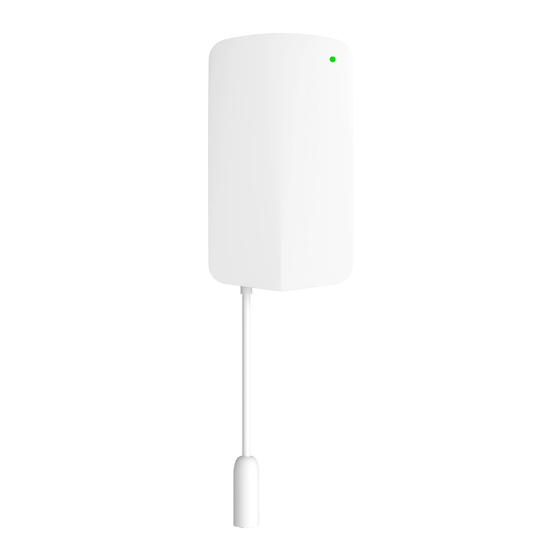

The Cisco Meraki MT11 is a cloud managed temperature sensor that is exceptionally
simple to configure and deploy due to its integration with the Meraki dashboard and the
use of BLE technology. The MT11 is designed to be deployed primarily in a cold storage
environment alongside Meraki equipment enabling the end-user to receive alerts from
the device specific to temperature.
About this Guide
This guide provides instructions on how to install and configure the MT11 environmental
sensors.
Physical and Technical Specifications
Dimensions: 11.71x65.7x23.3mm (LxWxH)
Power Rating: 5Vdc
Operating Environment:
• Temperature: 0°C - 55°C (32F - 131F)
• Relative Humidity: 0-95% RH
Hardware:
• Multicolor, multifunction status LED
• General purpose button
• Reset Button
• USB-C port
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cisco MERAKI MT11
Summary of Contents for Cisco MERAKI MT11
- Page 1 Meraki dashboard and the use of BLE technology. The MT11 is designed to be deployed primarily in a cold storage environment alongside Meraki equipment enabling the end-user to receive alerts from the device specific to temperature.
- Page 2 Package Contents and Wall Mount Hardware Installation Instructions Note: Each MT11 comes with an instruction insert within the box. This insert contains detailed step-by- step guides and images to assist in the physical installation of the camera. Note: During first time setup, the MT11 will automatically update to the latest stable firmware. Some features may be unavailable until this automatic update is completed.
- Page 3 • Rainbow – MT is initialing or looking for a gateway • Solid Green (for “n” seconds) – Connected to a gateway • Solid Amber (for “n” seconds) – MT could not find a gateway to connect • Flashing Green – MT is upgrading its firmware •...
- Page 4 Bluetooth 5.0 The MT11 features Bluetooth 5.0 which allows the device to perform over long distance with other Meraki networking devices to monitor the environment it will be used in. Power Option The MT11 is powered with two AA-batteries. The batteries are pre-installed and the user will only need to take out the pull tab.
- Page 5 You should complete the following steps before installing the MT11 in its final location. • Configure your MT11 in the Networking using Dashboard The following is a brief overview only of the steps required to add a MT11 to your network. For detailed instructions about creating, configuring, and managing Meraki IoT networks, refer to the online documentation https://documentation.meraki.com/MT)
- Page 6 Regulatory Statement EU Radiation Exposure Statement Installing or mounting of this device shall be done as such that a minimum separation distance (distance between a person and the device, or the device’s antennas) of 20 cm is always ensured. FCC Compliance Statement This device complies with part 15 of the FCC rules.
- Page 7 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: 1.
