MT20-HW Installation Guide
MT20 Overview

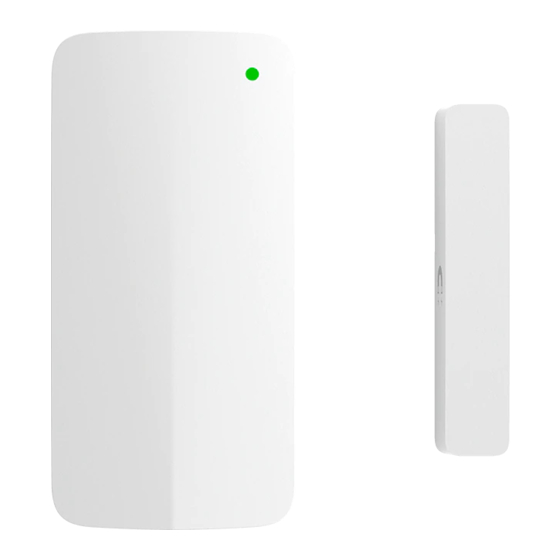

The Cisco Meraki MT20 is wireless Bluetooth-enable sensor product. The MT20 is designed to be deployed
primarily in a networking environment. It is designed to be used on doors alongside Meraki equipment
enabling the end-user to receive alerts for when doors are open and closed.

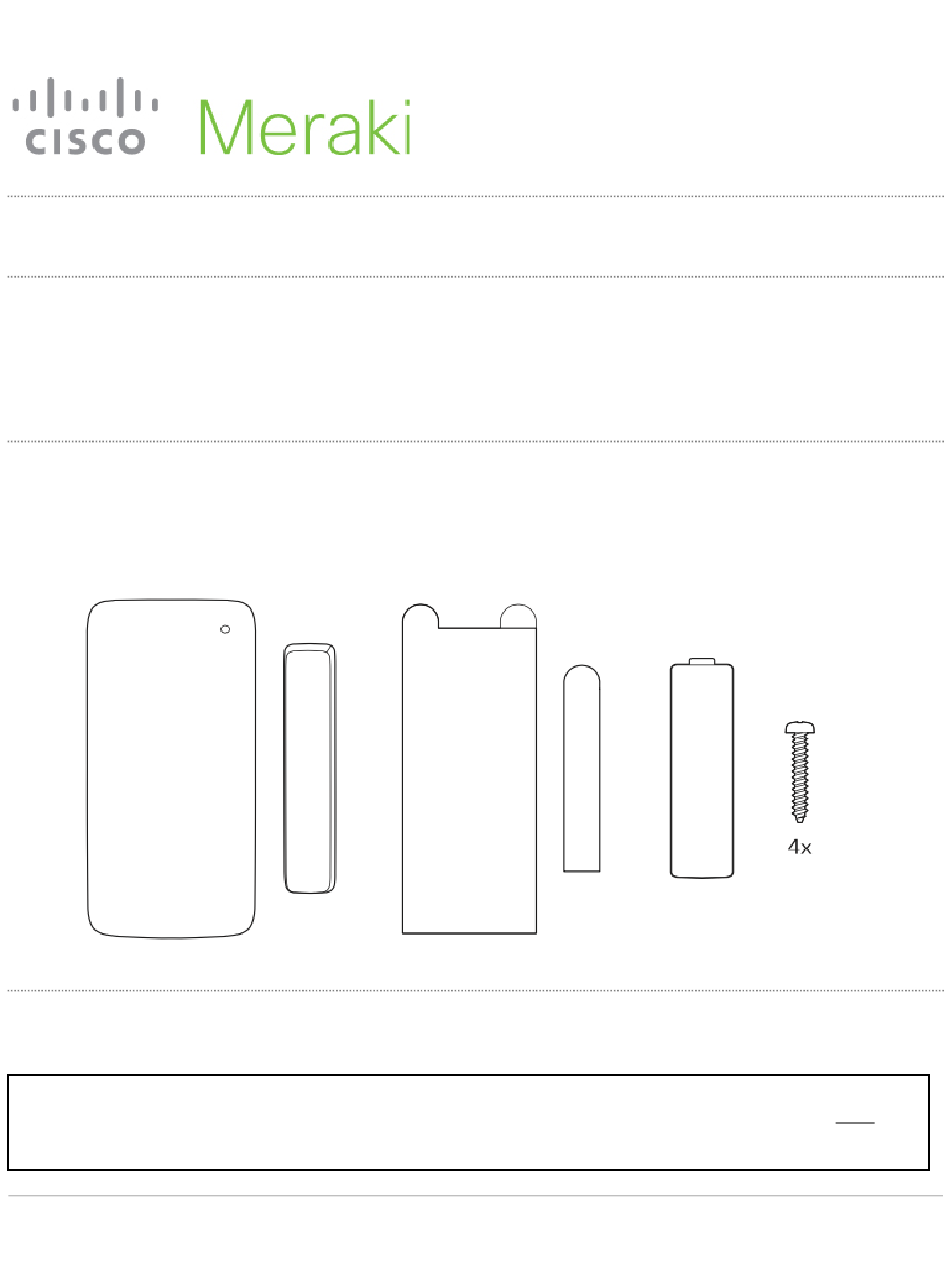

Package Contents and Wall Mount Hardware
In addition to the MT20, the following are provided:
Installation Instructions
Note: Each MT20 comes with an instruction insert within the box. This insert contains detailed step-by-
step guides and images to assist in the physical installation of the camera. A pdf can be found here.
(Note—this is a draft hyperlink not active yet.)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cisco MERAKI MT20-HW
Summary of Contents for Cisco MERAKI MT20-HW
- Page 1 MT20-HW Installation Guide MT20 Overview The Cisco Meraki MT20 is wireless Bluetooth-enable sensor product. The MT20 is designed to be deployed primarily in a networking environment. It is designed to be used on doors alongside Meraki equipment enabling the end-user to receive alerts for when doors are open and closed.
- Page 2 Note: During first time setup, the MT20 will automatically update to the latest stable firmware. Some features may be unavailable until this automatic update is completed. This process may take up to 10 minutes due to enabling of whole disk encryption. Battery Installation and Mounting Installation Steps Please note—the MT20 is powered with one AA-battery.
- Page 3 Step 3—Using the remaining two mounting screws, place the magnet housing on the upper-right side of the frame of the door and directly adjacent to the main MT20 body as shown below. Examples of Placement Locations Here are some examples of where the MT20 can be setup and placed in a networking environment.
- Page 4 Bluetooth 5.0 The MT20 features Bluetooth 5.0 which allows the device to perform over long distance with other Meraki networking devices to monitor the environment it will be used in. Configure your MT20 in the Networking using Dashboard The following is a brief overview only of the steps required to add a MT20 to your network. For detailed instructions about creating, configuring, and managing Meraki IoT networks, refer to the online ( https://documentation.meraki.com/MT).
- Page 5 Login to Meraki Dashboard Login to dashboard.meraki.com Technical Specifications Operational Temperature -18ºC to 55ºC degrees Dimensions: Length: 4.61 inches Width: 2.59 inches Height: 1.03 inches Power Rating: 5Vdc...
- Page 6 Regulatory Statements EU Radiation Exposure Statement Installing or mounting of this device shall be done as such that a minimum separation distance (distance between a person and the device, or the device’s antennas) of 20 cm is always ensured. FCC Compliance Statement This device complies with part 15 of the FCC rules.
- Page 7 L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2.
