RC Groups Muncie Fast & Furious Assembly Instructions Manual

Muncie Fast & Furious, RCSMP interpretation v2
The original plans for this airplane can be downloaded from
•
http://www.rcgroups.com/forums/showthread.php?t=1061750
http://www.rcgroups.com/forums/showpost.php?p=13073741&postcount=65
http://groups.yahoo.com/group/ww2ecombat/attachments/folder/1645938991/item/list
16"
1.25"
4"

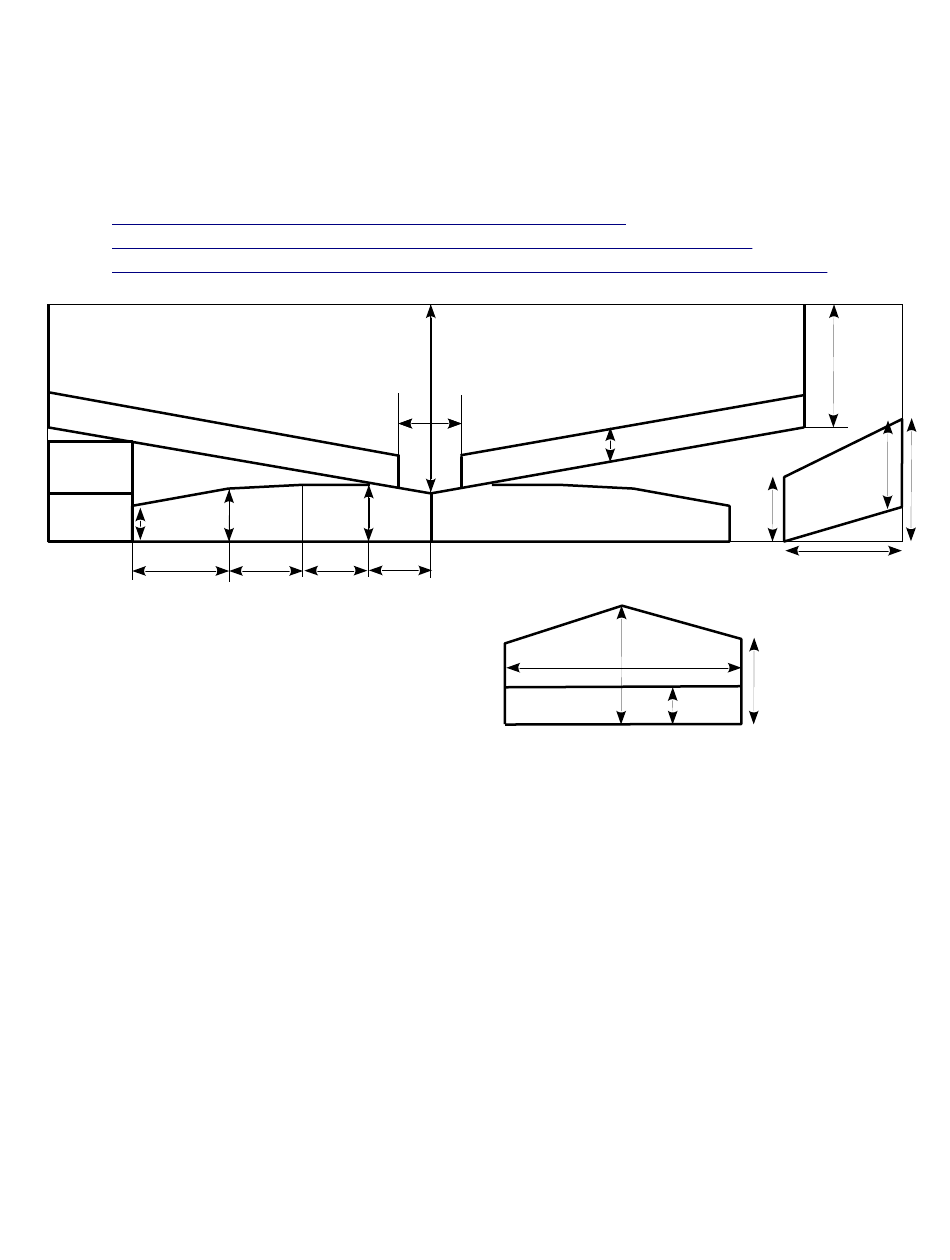

Fig. 1: Foam cutting diagram
Cut out ailerons under an angle. Swap left and right, that creates a beveled edge.
•
Glue the ailerons to the edge using Foam-Tac. The glue creates strong and flexible hinges.
•
Keeping the ailerons folded up, place a packing tape around the fold. That way the tape creates
•
a nice hinge on both the top and the bottom of the ailerons (see Error: Reference source not
found).
Repeat the same process with the elevator.
•
Press the edge of a bamboo skewer across the leading edge of the horizontal stabilizer so that
•
the skewer is half-buried in the foam. Press the top and bottom of the leading edge to match the
thickness of the bamboo skewer. Make a nice airfoil-shaped leading edge around the skewer
(see Fig. 2)
with 3D-printed motor mount
Assembly instructions
