- Page 1 Ironwood SLR305 User Manual general information. features. technical specifi cations. safety considerations. facility preparation. power. work space. delivery and installation. inspection. assembly. pre-operation cleaning. connect dust collection system. install saw blade. operation and adjustments. rip sawing tips. machine controls. machine operation.
-
Page 2: Table Of Contents
Troubleshooting ..............24 9.1 Electrical Diagrams PLEASE REVIEW AND OBSERVE ALL SAFETY INFORMATION / DIRECTIVES BEFORE INSTALLING, OPERATING, OR PERFORMING MAINTENANCE ON THIS MACHINERY. Ironwood SLR305 | User Manual... -
Page 3: General Information

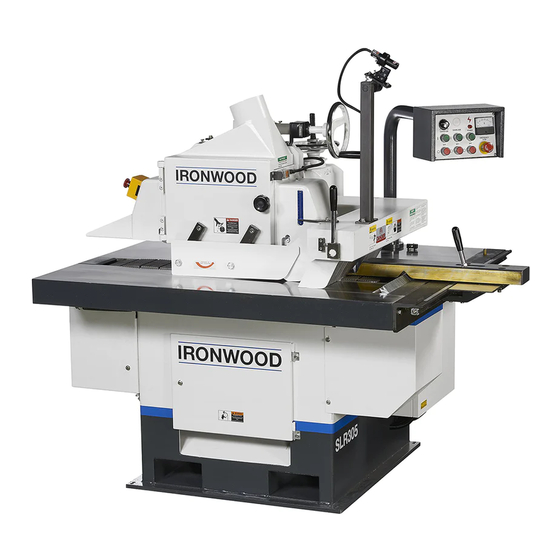

1.0 General Information 1.1 Thank You! 1.3 Features Thank you for your purchase of the Ironwood SLR305 straight • Cast iron machined feed chain block and guide track line rip saw. At Stiles Machinery, our goal is to ensure that you are •... -
Page 4: Technical Specifications
600 cfm @ 4,500 feet/min Motor Power 230v (3-phase) Amperage 40 amps Shipping Dimensions (h x w x l) 68" x 49" x 62" (1720mm x 1240mm x 1580mm) Shipping Weight 2535 lbs (1150 kg) Ironwood SLR305 | User Manual... -
Page 5: Safety Considerations
For your safety, read these instructions thoroughly before you install WaRninG and operate this machine. Always have these instructions available Never use the SLR305 for purposes other than its intended use. Do at the machine for reference. not modify or remove any guards or other safety features. Improper... -
Page 6: Facility Preparation
2.3 Power accommodate the Ironwood SLR305. Follow these guidelines: WaRninG 2.1 Floor A licensed electrician must connect the SLR305 to the building power source. • The floor must be flat and level. • Do not use extension cords. • Although no special foundations are required, a concrete floor is recommended. -
Page 7: Delivery And Installation
Remove the protective plastic from the machine, starting at the as possible. bottom. If you do not intend to install the Ironwood saw immediately after delivery, store it in a protected, cool, and dry location. The machine arrives fully Remove the crating, starting crated. -
Page 8: Inspection
10mm T-handle Allen wrench 4 leveling pads 4 leveling bolts with nuts Saw arbor wrench Paint (2-color set) Fence assembly 10. User manual Use a fork lift to move the machine on its pallet. Ironwood SLR305 | User Manual... -
Page 9: Remove Machine From Pallet
4 corners of the machine. Caution Lift the machine from the pallet with a forklift using the fork The SLR305 weighs 3,400 pounds (1,450 kg). For this procedure, holes located in machine base. we recommend using a fork lift. Carefully place the machine into final position. -
Page 10: Level
Before installing the saw blade, clean its contact faces, saw arbor, and lock washer with a clean cloth. NOTE: Make sure the saw arbor flanges are completely clean when installing the saw blade. Be sure to level the machine Ironwood SLR305 | User Manual... -
Page 11: Connect To Power
To connect power source to the machine: Open the electrical cabinet Place cable through electrical fitting on the bottom of the cabinet. Remove the clear plastic insulator that covers the main incoming power terminals. Ironwood SLR305 | User Manual... -
Page 12: Safety
Like all power equipment, there is danger associated with the Make certain the machine is either unplugged or electrically Ironwood SLR305. Use caution and follow all safety instructions. disconnected and locked out when performing all maintenance, Take every precaution to protect yourself, others around you, and cleaning, or machine adjustments. -
Page 13: Assembly
Loosen the wing nuts on the small pressure rollers and move them away from the saw blade position. Ironwood SLR305 | User Manual... -
Page 14: Attach Rip Fence Assembly
To lock the rip fence in place, push the handle away from you. To release it, pull the handle toward you. The rip fence should glide easily on the linear guideway for quick and easy ripping width adjustment. lower saw arbor Lock Ironwood SLR305 | User Manual... -
Page 15: Connect Dust Collection System
600 cfm. NOTE: Flex hose length should not exceed 30 feet or suction velocity will decrease, causing inadequate dust collection. Dust collection outlet The dust collection outlet is located in the top of the machine. Ironwood SLR305 | User Manual... -
Page 16: Operation And Adjustments
When cutting a thicker workpiece, the indicator scale can be adjusted 2-4mm less than the workpiece thickness to increase pressure. Tighten the pressure roller locking lever to secure the pressure rollers before running the saw. Ironwood SLR305 | User Manual... - Page 17 Open the electrical cabinet and test power leads to ensure power is off. Switch two of the power legs (e.g., L1 and L2). Close the electrical cabinet. Activate power to the machine. Test rotation again. Ironwood SLR305 | User Manual...
-
Page 18: Rip Sawing Tips
CORRECT WRONG Stand at the side of the machine. Never stand behind the ripping line. The danger zone includes an angle of 30 degrees on both sides of the ripping line. Ironwood SLR305 | User Manual... -
Page 19: Adjust Oil Supply To Feed Chain
NOTE: The oil pump in the central lubrication device is not intended for continuous pumping for an extended time. Pressing the manual lubrication button for more than 3 minutes may damage the oil pump motor. Oil inlet Oil level gauge Ironwood SLR305 | User Manual... -
Page 20: Adjust Hold-Down Pressure For Pressure Rollers
RED/LEFT BLUE/RIGHT Manual pumping CONDITION ACT. TIME CONDITION ACT. TIME switch 5 sec 3 min Int. time key 10 sec 15 min Act. time key 15 sec 20 min 20 sec 30 min Adjustment points Ironwood SLR305 | User Manual... -
Page 21: Maintenance
Viscosity Ambient Temp. Shell Oil ISO VG 0~5ºC Tonna 32 VG32 5~40ºC Tonna 68 VG68 Never use recycled oil. Oil level gauge Be sure the lubrication tank has an adequate supply of oil. Ironwood SLR305 | User Manual... -
Page 22: Inspection
To maintain optimum operation, the saw arbor motor belt should be periodically tightened. A new belt should be checked for tension weekly for the first 3 months. From then on, the belt should be inspected and adjusted every 200 working hours. Ironwood SLR305 | User Manual... -
Page 23: Replace Saw Arbor Motor Belt
Blow out the bottom of the chain to free up loose debris. Manually jog the chain to clean each chain section until the chain is completely clean. 10. Reattach the feed chain safety cover. Ironwood SLR305 | User Manual... -
Page 24: Troubleshooting
Check connections and tighten if necessary power terminals Motor will not run Motor damaged Check and replace motor Magnetic switch damaged Replace switch If you cannot resolve your issue, contact Stiles Technical Support at 616.698.6615. Ironwood SLR305 | User Manual... -
Page 25: Electrical Diagrams
9.1 Electrical Diagrams Ironwood SLR305 | User Manual... - Page 26 9.2 Electrical Diagrams (Continued) Ironwood SLR305 | User Manual...
- Page 27 Ironwood SLR305 | User Manual...
- Page 28 Stiles Machinery Inc. 3965 44th St. SE Version A Grand Rapids, MI 49512 September 2013 p. 616.698.7500 f. 616.698.9411 © 2013 Stiles Machinery Inc. www.stilesmachinery.com...
