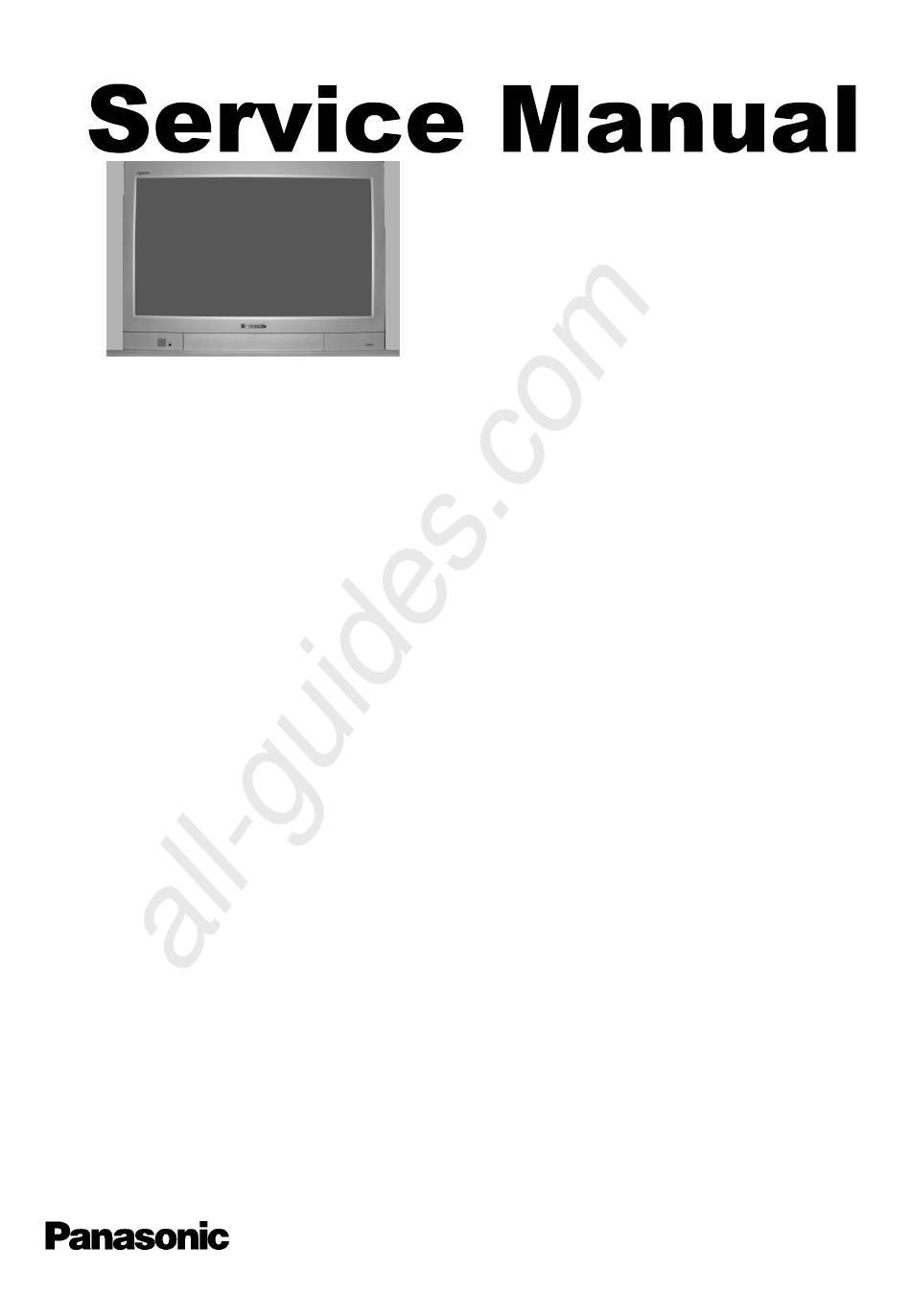

Panasonic TX-36PL30 Service Manual

SPECIFICATIONS
Power Source: 220-240V a.c., 50Hz
Power Consumption: 155W
Stand-by Power
Consumption: 2.8W
Aerial Impedance: 75Ω unbalanced, Coaxial Type
Receiving System: PAL I, PAL-525/60 UHF
M.NTSC
NTSC (AV only)
Receiving Channels: UHF E21-E69
Intermediate Frequency:
Video/Audio
Video 39.5MHz
Audio 33.5MHz
32.95MHz (NICAM)
Colour 35.07MHz (PAL)
Terminals:
AV1 IN Video (21 pin)
Audio (21 pin)
RGB (21 pin)
AV1 OUT Video (21 pin)
Audio (21 pin)
AV2 IN Video (21 pin)
Audio (21 pin)
S-Video IN
(21-pin)
AV2 OUT Video (21 pin)
Audio (21 pin)
Selectable output (21 pin)
All manuals and user guides at all-guides.com
1V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
500mV rms 1kΩ
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C: 0.3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
Colour Television
TX-36PL30
EURO-7 Chassis
AV3 IN S-Video IN
(4-pin)
Audio (RCAx2) 500mV rms 1Video
Video (RCAx2)
AV4 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
S-Video IN
(21-pin)
RGB (21 pin)
AV4 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
32kV ± 1kV
High Voltage:
Picture Tube: W86LPX955X07 86cm
Audio Output: Front Left/Right 2 x 20W
(Music Power) 8Ω Impedance
Digital Audio Input Coaxial / Optical
Headphones: 8Ω Impedance
3.5mm
Accessories
supplied : Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height: 623mm
Width: 950mm
Depth: 580mm
Net weight: 78kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO-7 Technical guide.
ORDER No. SM-01024
