2
SPARROW
®
RCbro
User-Manual
2
SPARROW
Manual v1.7
Description
2
SPARROW

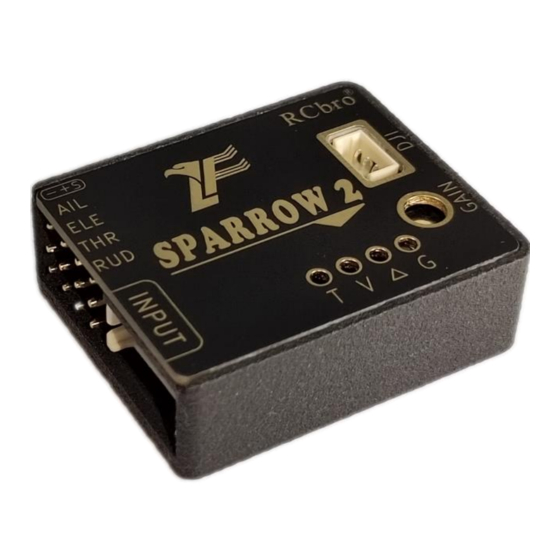

SPARROW
On the basis of the
FC,
has updated the
operation mode to simplify the user's use and enhance the operation
experience. At the same time, it adds support for a variety of receiver
signals, including PWM, PPM, SBUS, and supports DJI-OSD. For
specific functions and usage, refer to the detailed description below.
LefeiRC
www.lefeirc.com/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for lefeirc RCbro SPARROW 2
Summary of Contents for lefeirc RCbro SPARROW 2
- Page 1 At the same time, it adds support for a variety of receiver signals, including PWM, PPM, SBUS, and supports DJI-OSD. For specific functions and usage, refer to the detailed description below. LefeiRC www.lefeirc.com/...
- Page 2 The equipment and any electronic products on the aircraft cannot be completely reliable. The necessary inspections must be carefully performed before the flight. Content PARAMRTER ..........................3 INSTALLATION & WIRING ....................3 REMOTE CONTROL .........................5 GAIN .............................7 FLIGHTMODE ..........................7 LefeiRC www.lefeirc.com/...
- Page 3 SPARROW ® RCbro User-Manual 1. PARAMRTER Size 32*27*11mm Weight 9.5g Voltage Size 22*20*7mm Weight Voltage Receiver Type PWM/PPM/SBUS Accessories FC,GPS,Screwdriver,Wire(2), Double-sided tape Others Protocol DJI-OSD 2. INSTALLATION & WIRING ➢ FC Installation Direction ➢ Receiver LefeiRC www.lefeirc.com/...
- Page 4 The display includes: Latitude/Latitude, Satellite, Height, GroundSpeed, ClimbRate, Distance, Voltage (including single battery voltage),Attitude information, FlightMode, RSSI(SBUS), Orientation-pointing. * To display a single voltage, you need to connect the voltage detection line to the DJI interface before the FC is powered on! LefeiRC www.lefeirc.com/...
- Page 5 ➢ How to use the RC to set the type of plane? Set the type of plane through the quick hit mode switch (CH5) after using the RC to unlock the FC. *You need to stop one second after switching once to continue to switch. LefeiRC www.lefeirc.com/...
- Page 6 Step 3: Check the feedback direction again. ➢ How to set the RC direction? *If the control direction is not correct, you can set the channel output reverse in the RC. LefeiRC www.lefeirc.com/...
- Page 7 Describe NO GPS Flash NO Positioning.Can not fly. Successful Positioning.You can fly. ➢ AUTO TAKEOFF ALTHold mode: Push the throttle to the MAX and after the motor rotates, the plane will automatically climb to a height of 25m. LefeiRC www.lefeirc.com/...
- Page 8 Before using RC to unlock the FC, the throttle is locked,no output! After unlocking, the throttle output is determined by the GPS state, referring to the table below. MODE NO GPS NO Positioning Positioned MANUAL RC throttle RC throttle RC throttle STABILIZATION NO Output ALTHOLD <Throttle Control > ALTHOLD NO Output LefeiRC www.lefeirc.com/...
