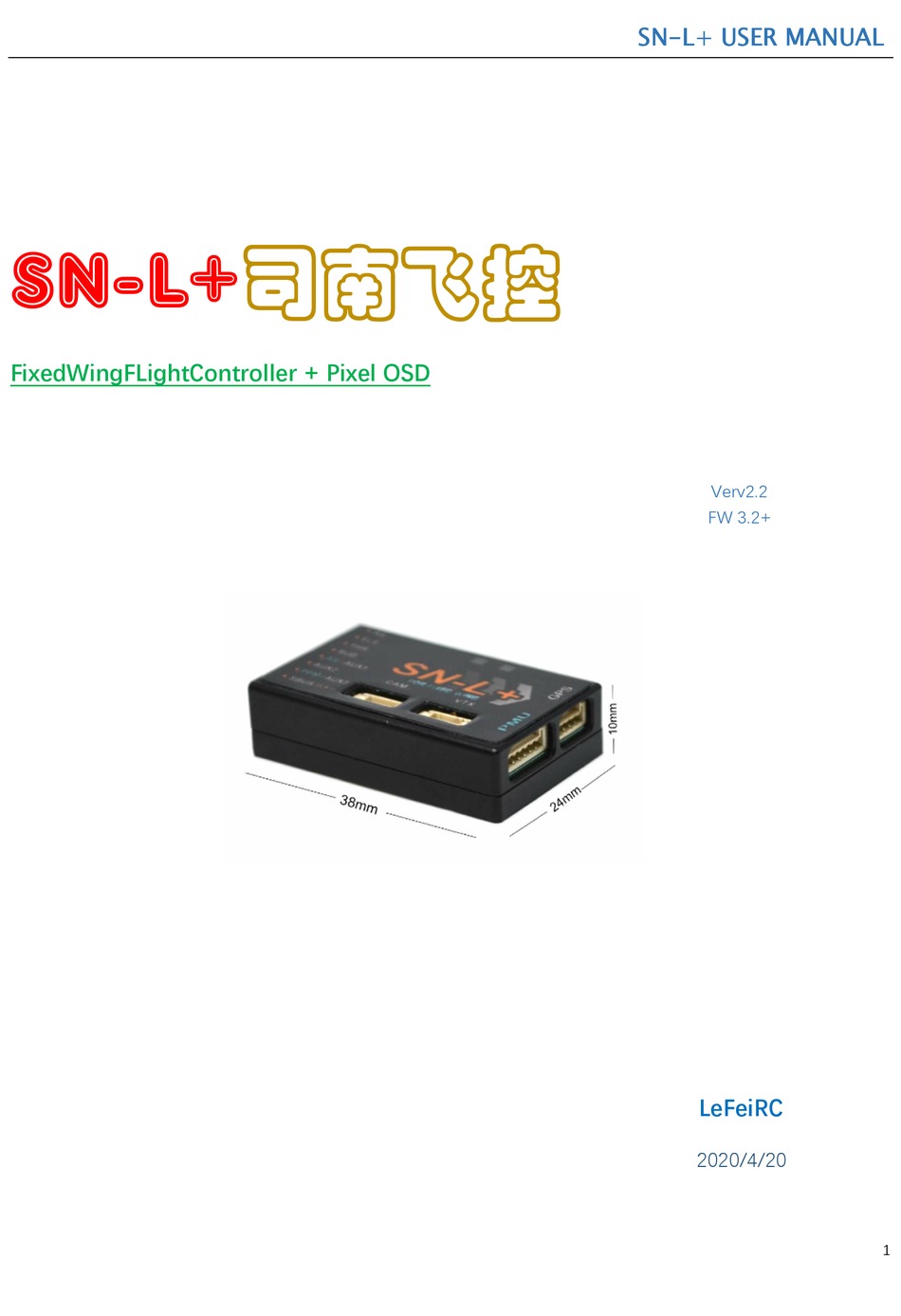

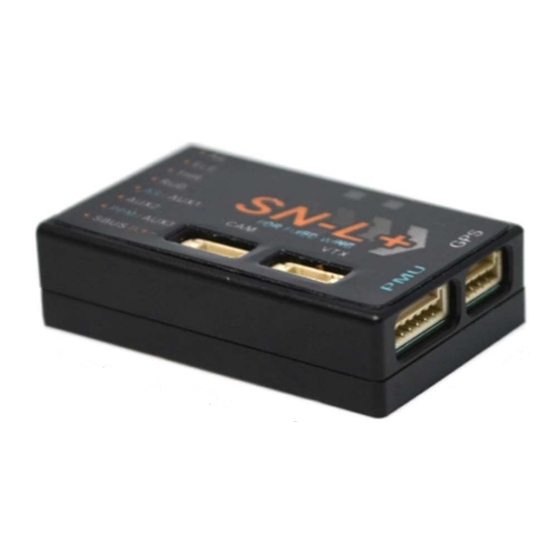

- Page 1 SN-L+ USER MANUAL SN-L+司南飞控 FixedWingFLightController + Pixel OSD Verv2.2 FW 3.2+ LeFeiRC 2020/4/20...
-
Page 2: Table Of Contents
SN-L+ USER MANUAL WARING： Please strictly observe the relevant national laws and regulations for safe flight. We do not advocate flying high, flying far, experience the fun of the model airplane in a fully safe environment, and create a good environment for model airplane sports! Before using the flight control, you must fully understand the various safety details and deeply understand that the flight is risky. -
Page 3: Interface
SN-L+ USER MANUAL 1. INTERFACE： POWER ① VTX, CAM, are powered by PMU 12V ② GPS, FC are powered by PMU 5V ③ Servo and receiver are powered by external BEC GREEN LED RED LED FLASH Lose control disconnect normal FLASH... -
Page 4: Flight Mode
SN-L+ USER MANUAL GPS port baud:115200) HOW TO CONNECT SN_GCS ( Connect to GCS by our upgrade tool board or Bluetooth. 2. FLIGHT MODE: MANUAL Remote control directly controls the aircraft STAB Auto level HORIZON ACRO mode + STAB mode Return to home HOVER Altitude hold and cycle。... -
Page 5: Switch Flght Mode
SN-L+ USER MANUAL GEO FENCE Enter the OSD setting item < AUTO PARAMETER> < GEOFENCE DISTANCE> : The aircraft will automatically switch to the home mode when flying over this distance. Cancel the home mode by quickly dialing the mode stick; ‘0’ means to close the radius fence limit. <... -
Page 6: Installation
SN-L+ USER MANUAL 4. INSTALLATION： PMU MODULE INSTALL DIRECTION OF FC 4 install direction： <BASE FUNCTION> -> <AP DIRECTION> 0° Arrow point to head 180° Arrow point to rear 90° Arrow point to Left side of the nose 270°... -
Page 7: Remote Controller
SN-L+ USER MANUAL CORRECT CONTROL SURFACES MOVEMENT CONNECT AIRSPEED *AUX1 channel set as <NONE> TELEMETRY PORT Port TX as telemetry port. TX port can be set as <MAVLINK57600> / <MAVLINK115200> / <DJI>. *If you set as <MAVLINK57600> , the airspeed meter could not work normal. 5. -
Page 8: 6．Osd
SN-L+ USER MANUAL STEP3: => => FAILE SAFE ① SBUS receiver can automatically identify the out of control, auto switch to RTH mode (when GPS satellite > 6). ② PPM receiver cant auto identify out of control, you should set failsafe mode by yourself. Check the fail-safe mode before takeoff 6．OSD：... -
Page 9: Flight & Control
SN-L+ USER MANUAL ② The vibration is large, and most of the vibration points fall outside the warning line, which easily leads to the FC can’t calculate the correct attitude CALIBRATE LEVEL <SENSOR>-<CALI LEVEL> ① Ensure that the aircraft is level and static during horizontal calibration. ②... - Page 10 < >. MINIMUM GROUND SPEED 9. FIRMWARE UPGRADE ***Get firmware and upgrade software: www.lefeirc.com or connect lefeirc@163.com ① connect upgrade tool to computer, and install server if need. ② Connect to right COM port. ③ Click <open> button, and load firmware. do not power FC!!! ④...
