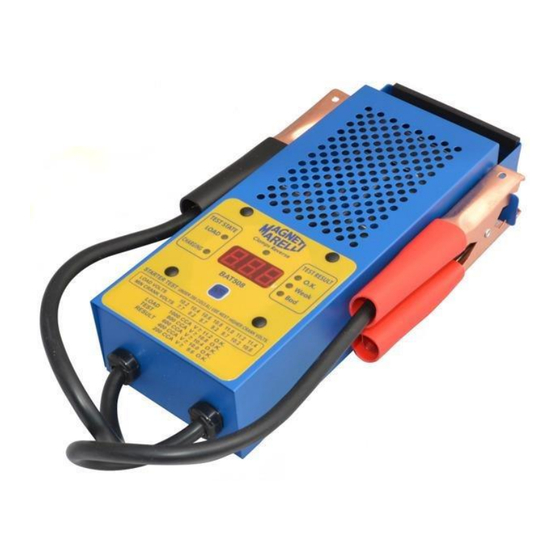

- Page 1 Digital battery load tester BAT508 User’s manual SIA "DIAGTOOLS" Pernavas 43A, Riga, Latvia, LV-1009 Tel.: +37129416069 e-mail: info@diagtools.eu www.diagtools.eu...
- Page 2 WARNING - RISK OF EXPLOSIVE GASES Pursuant to California Proposition 65, this product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. Working in the vicinity of a lead acid battery is dangerous. Batteries generate explosive gases during normal battery operation.
- Page 3 BAD (RED LED LIGHT): Battery may be defective (e.g. a bad cell). Digital LED code display "c.b": a) If the battery volts is under 12.3V, "c.b" (Charge battery) will be shown on LED display. Please fully charge the battery before test. After charging, please wait 15-30 minutes to let the voltage stable &...
- Page 4 should be charged and load tested again. Replace the battery if it fails again. The values in the following charge are for a 12 volt battery: OPEN CIRCUIT VOLTS* PERCENT OF CHARGE 11.7 Volts or lower 12.0 12.2 12.4 12.6 or higher TESTING THE CHARGING SYSTEM - after load test Remain connecting the tester the same after battery testing.
- Page 5 ENGINE MUST BE AT NORMAL OPERATING TEMPERATURE Connect negative (black) clamp to the negative (NEG, N, -) battery post. Connect positive (red) clamp to the positive (POS, P, +) battery post. ROCK clamps back and forth to ensure a good electrical connection. Do not click “ENTER”. Disable the system ignition so the car will not start.
