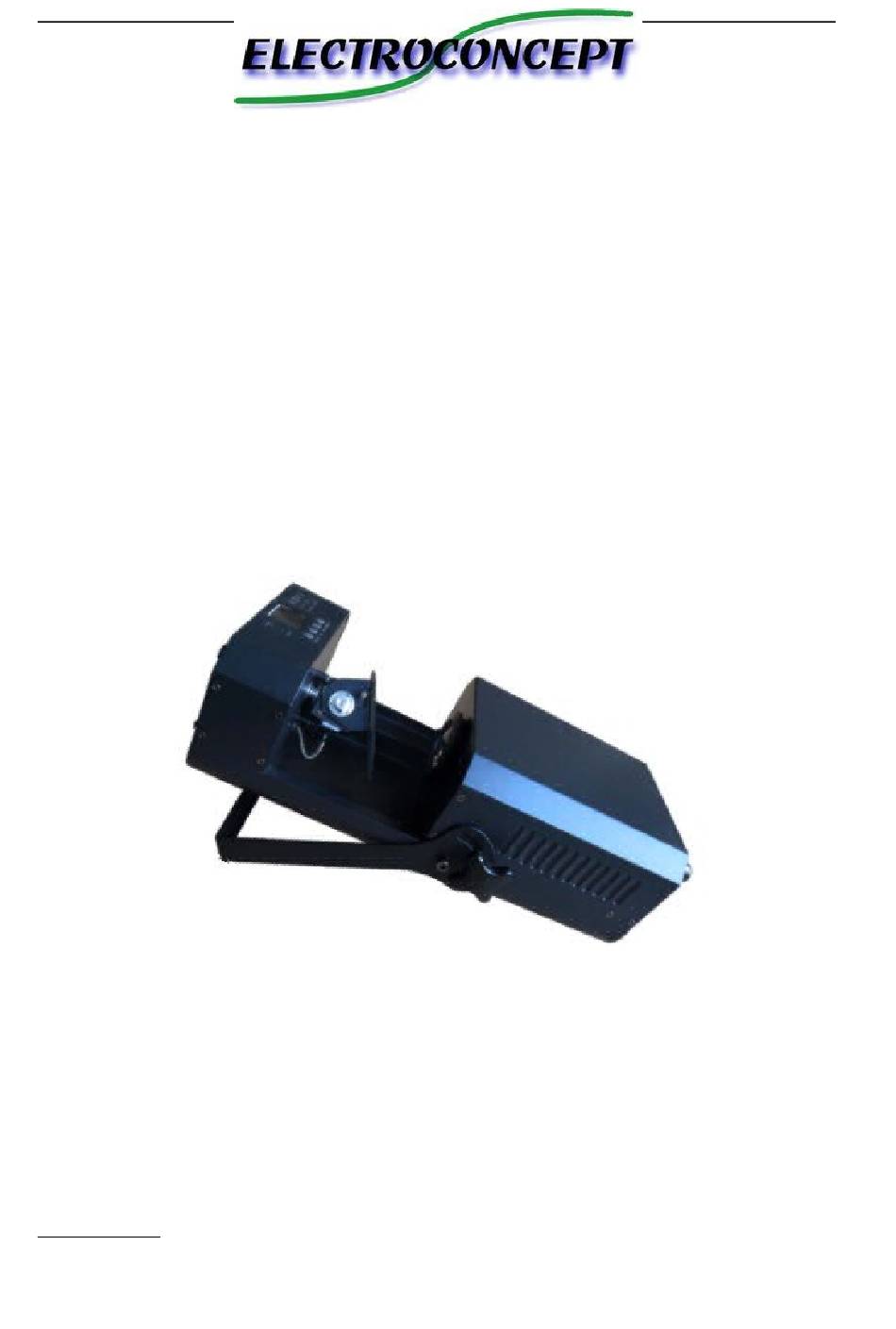

- Page 1 SCAN 120 LED SCANNER CLUBSCAN 120 Instruction manual Thank you for purchasing this product. Please carefully read this manual before using this scanner Responsibility :...
- Page 2 On no account the Electroconcept company shall be held responsible for any damages of any nature whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other financial loss resulting from the use or the impossibility to use your equipment. In addition Electroconcept shall not be held responsible for damages due to an improper use of this product.
- Page 3 1. Safety instructions Please carefully read these instructions as they include valuable information for installation, operation and maintenance of this device. Warning Keep this manual for future consultations. If you resell your scanner to an other individual, make sure to also give him this manual. ...
- Page 4 Replace the box and the lenses if they are visually damaged (for example cracks or deep cuts during transport or handling). This is essential. Do not look straight at the light going out of led when the scanner is switched on. ...
- Page 5 2 Operating modes are available : DMX control, Stand-Alone mode MENU DESCRIPTION Mode Stand-Alone: Auto 1 /Auto 2 Auto 3 /Auto 4 XY effect 1/ XY effect 2 / XY effect 3 /XY effect 4 random effect / Sound address DMX DMX address selection 001-512 Channel mode Selection of DMX mode15 or 19 channels...
- Page 6 4 TILT fin 0-255 Tilt Fin 5 Speed 0-255 Pan/Tilt Speed Shutter closed 4-251 STROBOSCOPE from slow to fast 6 Shutter 255-255 Shutter open 0-255 General Dimmer 7 Dimmer White White + Red 10-14 15-19 Red + Orange 20-24 Orange 25-29 Orange + Green 30-34...
- Page 7 251-255 Gobo7 Shake 0-63 Angle adjustment 10 Gobos 64-127 Counter-clockwise Gobos rotation Rotation 128-191 Clockwise Gobos rotation 192-255 Gobos Shake rotation from slow to fast 0-255 Focus 0 – 100 % 11 Focus 0-127 No effect 12 Prism 128-255 Prism effect 0-63 Angle adjustment 13 Prism...
- Page 8 175-194 Purple 195-214 Yellow 215-234 Blue 235-254 Rose White 17 Colors speed 0-255 Color wheel rotation speed from fast to slow 18 Prism speed 0-255 Prism rotation speed from fast to slow 19 Gobos wheel 0-255 Gobos wheel rotation speed from fast to slow speed 5.
