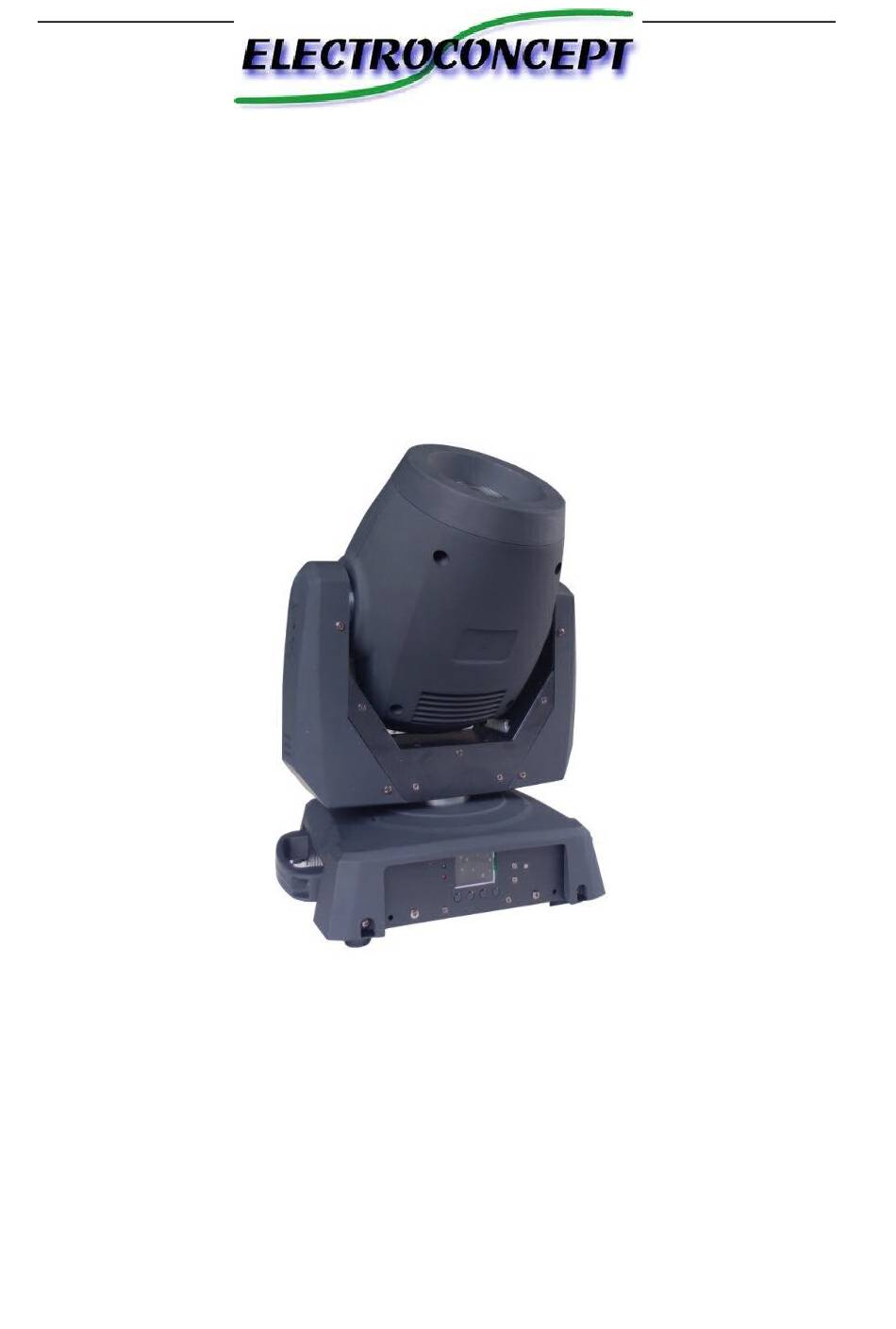

- Page 1 M SPOT 120 PROFILE 120 SPOT LED Instruction manual Thank you for purchasing this product. Please carefully read this manual before using this moving head.
- Page 2 Responsibility : On no account the Electroconcept company shall be held responsible for any damages of any nature whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other financial loss resulting from the use or the impossibility to use your equipment. In addition Electroconcept shall not be held responsible for damages due to an improper use of this product.
- Page 3 Please carefully read these instructions as they include valuable information for installation, operation and maintenance of this device Warning Keep this manual for future consultations. If you resell your moving head to an other individual, make sure to also give him this manual. ...
- Page 4 The moving head must be attached via its screw holes to the support with help of the provided hook. Always make sure the moving head is firmly attached to avoid vibrations and sliding during the operation.. Always make sure the structure to which the moving head is attached is secured and able to bear 10 times the moving head’s weight.
- Page 5 DESCRIPTION DU MENU Mode Stand-Alone mode : Auto 1 /Auto 2 Auto 3 /Auto 4 XYeffect1/XYeffect2/XYeffect3/XYeffect4/ Random Sound mode adresse DMX DMX address selection from 001 to 512 Channel mode DMX 14 or 18 channels mode selection erse ON/OFF pan inversion Y reverse ON/OFF tilt inversion XY exchange...
- Page 6 4 TILT fin 0-255 Tilt Fin 5 Speed 0-255 Pan/Tilt speed Shutter closed 4-251 STROBOSCOPE from slow to fast 6 Shutter 255-255 Shutter open 0-255 General dimmer 7 Dimmer White White + Red 10-14 15-19 Red + Orange 20-24 Orange 25-29 Orange + Green 30-34...
- Page 7 251-255 Gobo7 Shake 0-63 Angle adjustment 10 Gobos 64-127 Counter-clockwise Gobos rotation rotation 128-191 Clockwise Gobos rotation 192-255 Gobos Shake rotation from slow to fast 0-255 Focus 0 – 100 % 11 Focus 0-127 No effect 12 Prism 128-255 Prism effect 0-63 Angle adjustment 64-127...
- Page 8 175-194 Purple 195-214 Yellow 215-234 Blue 235-254 Rose White 17 Colors speed 0-255 Color wheel rotation speed from fast to slow 18 Prism speed 0-255 Prism rotation speed from fast to slow 19 Gobos wheel 0-255 Gobos wheel rotation speed from fast to slow speed 5.
