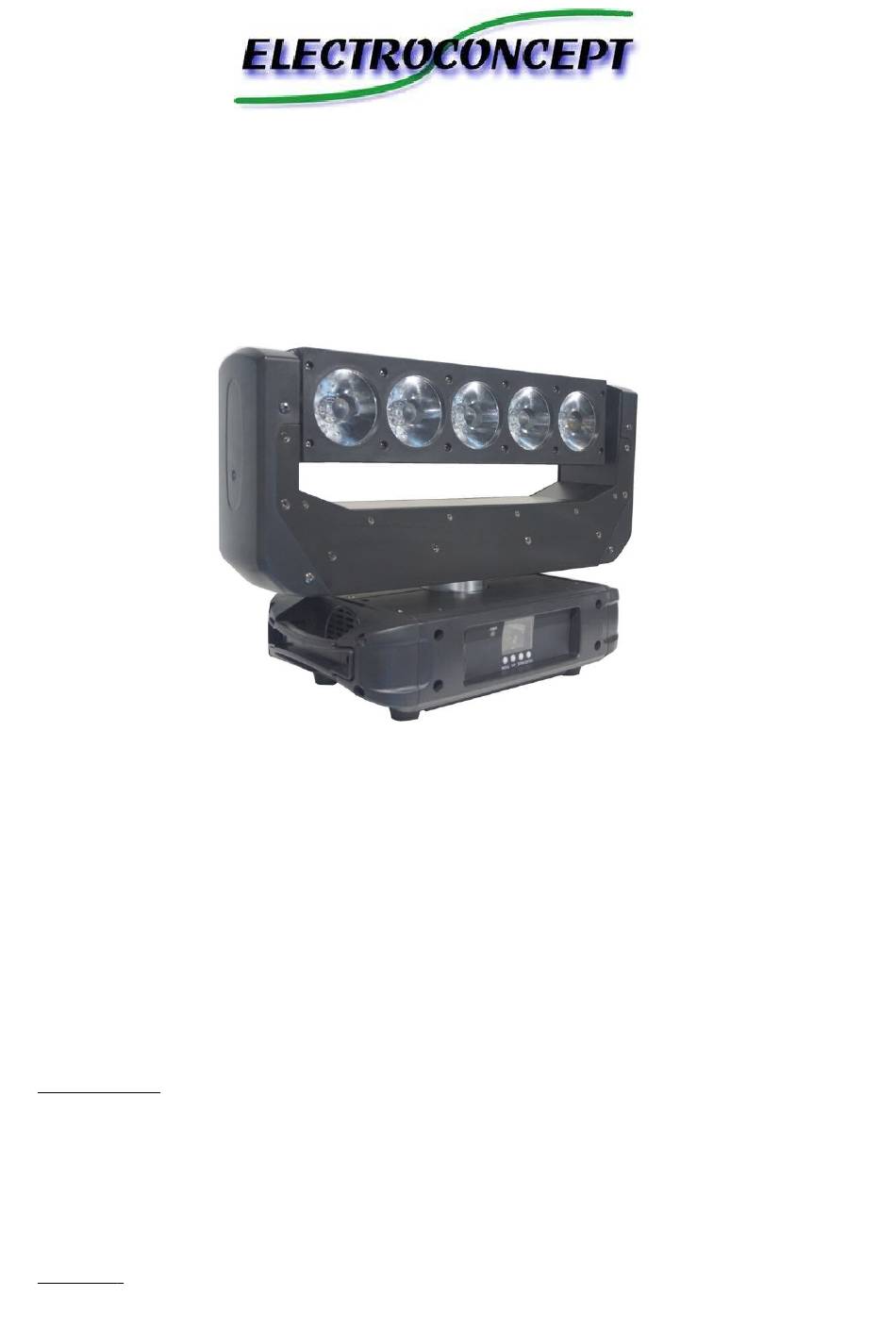

M WASH 520P
SPIDER LED 5X20 RGBW
Instruction manual
Thank you for purchasing this product.
Please carefully read this manual before using this moving
head.
Responsibility :
On no account the Electroconcept company shall be held responsible for any damages of any nature
whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other
financial loss resulting from the use or the impossibility to use your equipment. In addition
Electroconcept shall not be held responsible for damages due to an improper use of this product.
Warranty :
Advertisement
Table of Contents
Related Manuals for Electroconcept M WASH 520P
Summary of Contents for Electroconcept M WASH 520P
- Page 1 Responsibility : On no account the Electroconcept company shall be held responsible for any damages of any nature whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other financial loss resulting from the use or the impossibility to use your equipment. In addition Electroconcept shall not be held responsible for damages due to an improper use of this product.
-
Page 2: Table Of Contents
Electroconcept products have a 2 years manufacturer warranty. The equipment shall be returned prepaid (at the customer's own expense). Any freight collect will be refused. The equipment shall be returned in its original packaging. The equipment's restitution will be at our own expense. -
Page 3: Technical Specifications
source match your moving head specifications. Check your device as well as your equipment’s grounding. This device is only meant for indoor use ; protect it from heat and humidity (allowed ambient temperature from 10 to 40°C). The moving head must be set up in a ventilated area, at least 50cm away from any adjacent surface. -
Page 4: Moving Head Starting Up
Power supply - AC 220-250V 50/60Hz Power - 130 W Lamp - 5 LED RGBW 20W With beam angle of 4° Shutter/Dimmer - Blackout, 0~100 variable strobe speed and soft transition Movement - Pan: 540° - Tilt: endless Weight/Dimensions - 8,2 Kg / 420x200x300 mm Operating mode -DMX Control 17 or 32 channels./Stand-Alone with built-in microphone/Stand-Alone with automatic mode /Master/Slave Mode... -
Page 5: Dmx Wiring
No DMX Signal Moving head behavior in case of DMX signal loss Keep = keep last received DMX values Clear = reset of DMX values Display LCD standby screen : DMX Address / Blackout / None Load default Back to factory configuration Manu Pan, Tilt, Dimmer,.. -
Page 6: Dmx Control Channels And Values
4.DMX Control channels and values 116 16 channels CHANNEL VALUE FUNCTION 1 PAN 0-255 2 PAN fin 0-255 Pan Fin 3 TILT 0-255 Tilt 4 TILT fin 0-255 Tilt Fin 5 Speed 0-255 Pan/Tilt speed No function 6 Endless Tilt 6-149 Clockwise rotation from fast to slow rotation... - Page 7 111-120 Color Macro 1 121-130 Color Macro 1 131-140 Color Macro 1 141-150 Color Macro 1 151-160 Color Macro 1 161-170 Color Macro 1 171-200 Black OUT 201-230 FULL ON 231-255 No function No function 10-36 Program 1 37-63 Program 2 64-90 Program 3 Macros Colors...
- Page 8 198-215 Red+Green+White 216-233 Green+Blue+White 234-255 Red+Green+Blue+White No function 10-36 Program 1 37-63 Program 2 64-90 Program 3 9 Macros 91-117 Program 4 Programs 118-144 Program 5 145-171 Program 6 172-200 Program 7 201-230 Program 8 231-255 Program 9 10 Speed 0-255 Speed of macro programs from slow to fast No function...
-
Page 9: Troubleshooting
5. Troubleshooting A. The moving head does not work, no lights nor fan : Check the power cord and the main fuse. Check that your electrical system is working. B. No response to DMX controller A dot must flash on the device control screen. If it’s not the case, check if cables are properly connected and in good condition.
