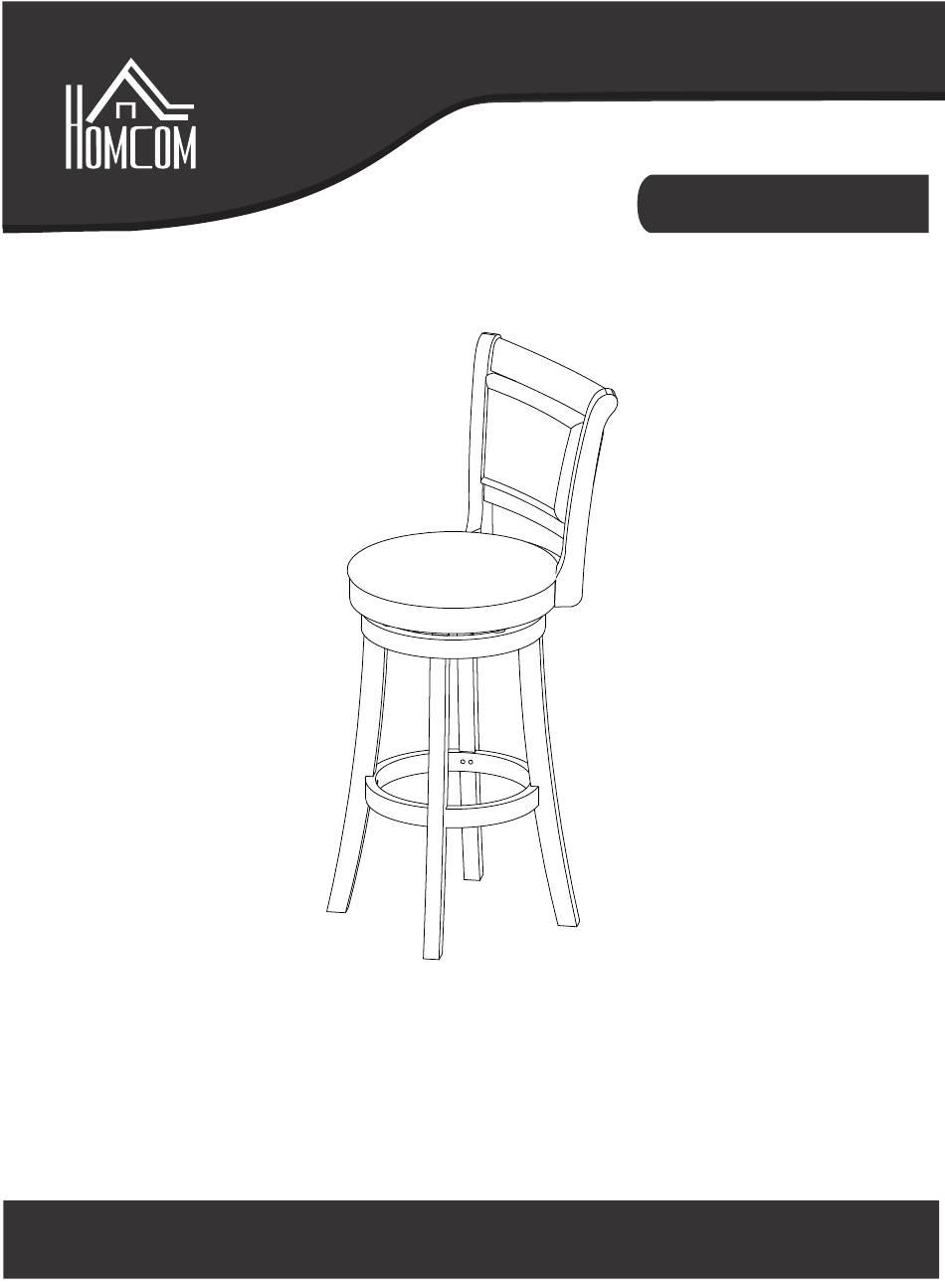

- Page 1 INc4b074_US 835-421 Ver 032021.08 ASSEMBLY INSTRUCTIONS...
- Page 2 SAFETY INFORMATION assemble or install the product. 2.Assemble the item on a soft, non-abrasive surface such as carpeting to avoid damage. 3.Item is heavy. Handle with care. May require two adults for safe assembly. Estimated Assembly Time: 60 minutes. Recommended maximum sitting weight for the stool is 350lbs/ 160kgs Before beginning assembly of product, make sure all parts are present.
- Page 3 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Chair back Seat cushion Seat frame Chair legs Foot rest Ø6.3 x 25L Ø6.3 x 50L Ø6.3 x 45L Bolt Bolt Bolt Qty. 4 Qty. 18 Qty. 4 Extra. 1 Extra. 1 Extra. 2 Ø6.3 Ø6.3 Allen Spring...
- Page 4 ASSEMBLY INSTRUCTIONS FRAME ASSEMBLY Align six holes of the seat cushion (B). Insert Ø6.3 x 45L bolt (BB), Ø6.3 x 50L (CC) bolt through spring washer (DD), flat washer (EE), with the chair back (A). Repeat this procedure for adjacent hole. Hardware Used Ø6.3 x 45L Bolt Ø6.3 x 50L Bolt...
- Page 5 ASSEMBLY INSTRUCTIONS FRAME ASSEMBLY Repeat the same procedure as step 2 for the 3rd and 4th leg Hardware Used Ø6.3 x 45L Bolt Ø6.3 Spring washer Ø6.3 Flat washer Hardware Used Align holes of the swivel plate (C). Insert Ø6.3 x 25L bolt (AA) through Ø6.3 x 25L Bolt spring washer (DD), flat washer (EE), with the seat cushion (B).
- Page 6 ITEM NO. CTN NO. INCLUDING 8 35 -4 42 B K / 1 Chair back + 1 Seat cushion + 1 Seat Frame + 4 Chair legs + 1 Foot Rest + Hardware Part Product clusters inside carton Reference Picture Chair back Seat cusshion Seat frame...
