Viozon OL-2 Installation Instructions

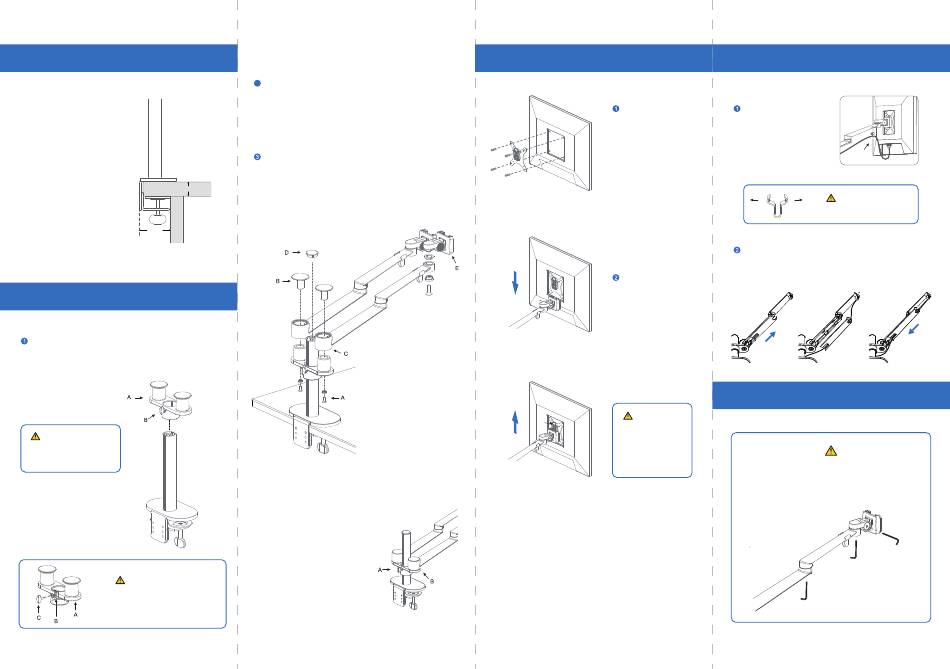

STEP1. ATTACH MOUNT TO WORK SURFACE

INSTALL ON OPEN EDGE
OF WORK SURFACE:
Slide the Base Stem against
work surface edge and fully
tighten clamp Screw(A).
≥0.6" - ≤2.36"
A
3.15"

STEP2. ATTACH ARM TO THE POST

Wear the parallel connector (A) into the post, tighten the
screw(B).
Note:Fix the parallel connector
in position to post groove firstly.
Note:Please fix the inside nut of post(B)
in position before tighten Screw(C) on
the parallel connector(A).
Loose the screw(A), remove the caps of parallel connector(B),
2
insert two arms(C) into the post, tighten the screw and cover
the caps, cover the cap(D).
Cap the adaptor(E) into top of the forearm(Note: cover the
black shim firstly as picture), tighten the screw of bottom.
HEIGHT ADJUSTMENT
The parallel connector(B) could
be adjusted on your desired
position by loosing the screw(A),
fix it.

STEP3. ATTACH MONITOR TO ARM

As the picture shows,
install VESA mount on
monitor. Be careful to
leave the slide clip
upwards.
VESA standard:
75*75mm ; 100*100mm
Insert the VESA
connector into the
groove, when heard a
click sound means done.
A
Note: If you want to
remove the device,
please press shrapnel
(A) to remove the
device Up to extract.

STEP4. CABLE MANAGEMENT

Remove cable clip (A) from
the arm, thread cables, install
cable clip on the arm again.
A
Note: Open cable clip two sides.
Slide the plastic cover on the rear arm upwards until it
disengages. Put cables onto the plastic cover inside. Slide
the cover downwards until it click into place.
ARM ADJUSTMENTS
TENSION ADJUSTMENT
If you feel the pitching angle too tight or too loose when
adjusting the mount, please adjust the Screw.
5MM
5MM
6MM
