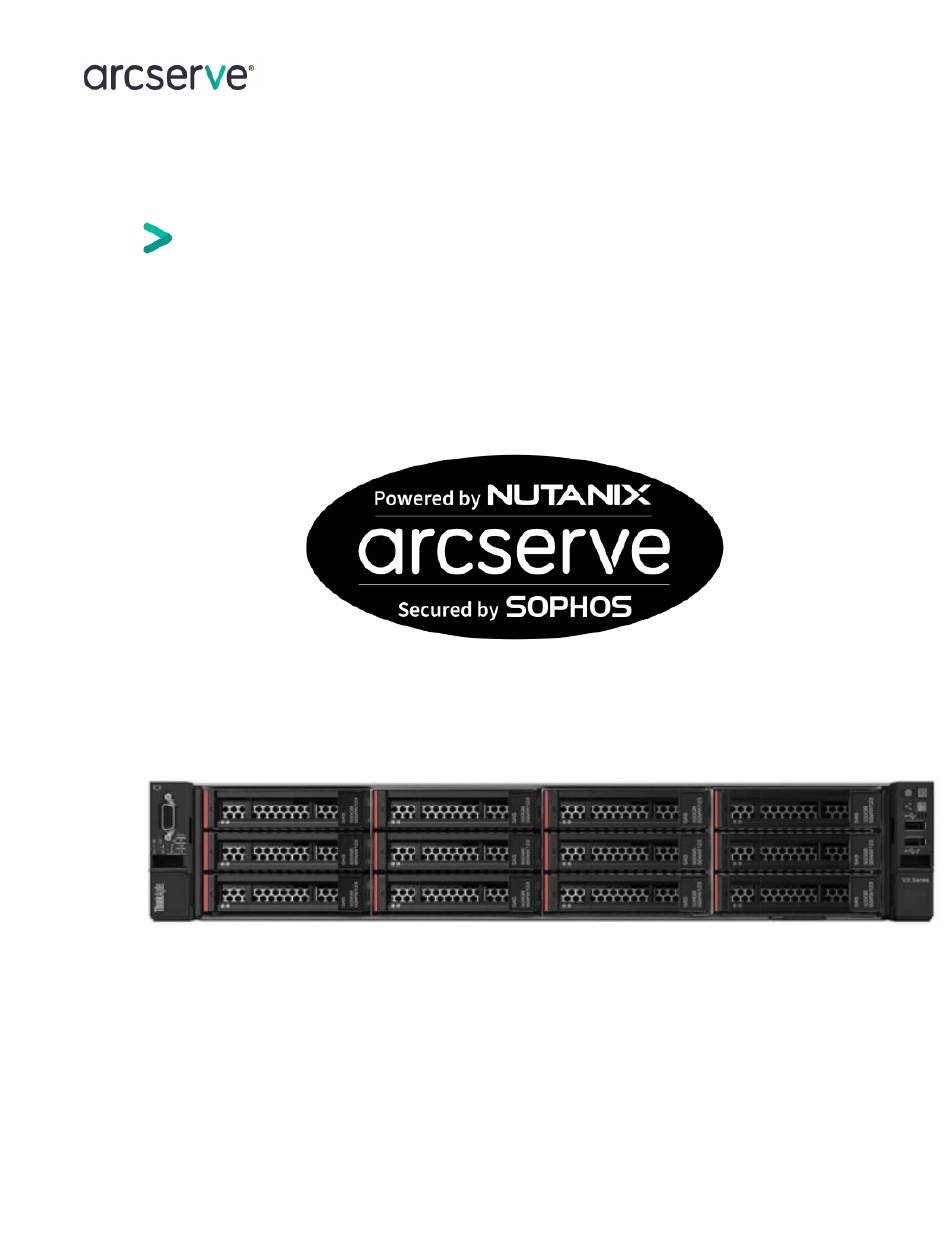

- Page 1 HARDWARE INSTALLATION GUIDE Arcserve Appliance N Series Hardware Installation Guide Lenovo Large Node HX5521 SR650 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650...
-
Page 2: Table Of Contents
Rear Panel Connections and Device Locations ................11 System Administration with XClarity Administrator ..............12 Software Sources ........................... 14 10. Contact Support ............................. 16 11. Warranty ..............................16 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... -
Page 3: Overview
The Lenovo machine type and serial number are located on the ID label on the front right rack latch. The XClarity® Controller network access label is attached on the top side of the pull-out information tab. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... -
Page 4: Product Ratings
Maximum: 240 V AC Input kilovolt-amperes (kVA), approximately: Minimum: 0.153 kVA Maximum: 2.61 kVA Hot swap fans Six single rotor fans, one is redundant Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... -
Page 5: Site Preparation
Install near appropriate AC outlets, and Ethernet hubs or individual jacks. Be sure to install an AC Power Disconnect for the entire rack assembly. The Power Disconnect must be clearly marked. Ground the rack assembly properly to avoid electrical shock. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... -
Page 6: Unpacking The Appliance
DNS network services DHCP network services Windows Server to run Nutanix Foundation (dedicated or virtual) connected to the same switch as the new appliance to be configured. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... -
Page 7: Installing The Appliance In A Rack
Minimum depth of 70 mm (2.76 in.) between the front mounting flange and inside of the front door. Minimum depth of 157 mm (6.18 in.) between the rear mounting flange and inside of the rear door. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... -
Page 8: Front Panel Operation
2. USB 3.0 connector 3. Power button with power status LED 4. Network activity LED 5. System ID button with system ID LED 6. System error LED Slot 3 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... - Page 9 The power supply has a critical error. The power supply is not connected to the power. None The server is off, or the server is on and is working None correctly. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650...
- Page 10 In the standby state, the compute node responds to remote power-on requests sent to the Lenovo XClarity Controller. The XClarity controller is accessed with a browser-based interface via the dedicated controller LAN port on the rear of the enclosure. Slot 2 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650...
-
Page 11: Rear Panel Connections And Device Locations
1. System ID LED 2. Ethernet link LED 3. Ethernet activity LED 4. System error LED 5. Power input LED 6. Power output LED 7. Power supply error LED Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... -
Page 12: System Administration With Xclarity Administrator
5. To manage a node, select the node checkbox, and then click the Manage Selected option to get into node screen. Record the DHCP issued IP addresses for the nodes. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650... - Page 13 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Large HX5521 SR650...
-
Page 14: Software Sources
How to get the Windows Server 2019 IOT ISO File 1. Customers that have validated the Arcserve orders can use the following link (always the same) from the order confirmation documents. The Product license key is a sticker on the delivered unit. - Page 15 A confirmation message appears, and the cited email address gets a confirmation of the request. 4. The Arcserve order administrator validates the request. Within a two-business day interval, the system will generate an email to the customer provided address with a customer specific link. The link of each customer is unique.
-
Page 16: Contact Support
In no event will Arcserve be liable for any loss or damage, direct or indirect, from the use of this document, including, without limitation, lost profits, business interruption, goodwill, or lost data, even if Arcserve is expressly advised in advance of the possibility of such damage.
