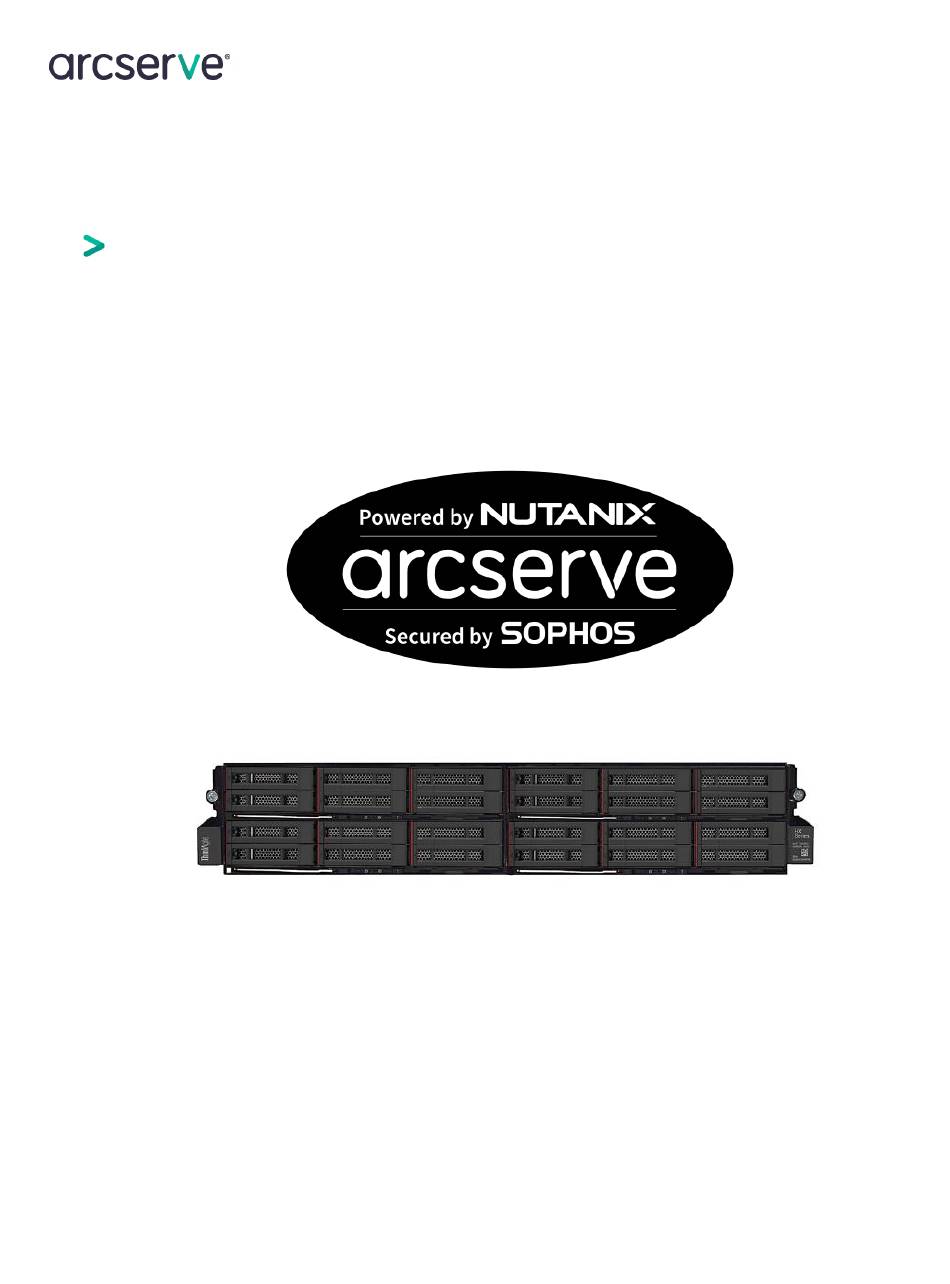

- Page 1 HARDWARE INSTALLATION GUIDE Arcserve Appliance N Series Hardware Installation Guide Lenovo Four Nodes Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node...
-
Page 2: Table Of Contents
System Administration with XClarity Administrator ..............11 Software Sources ........................... 13 ..............13 2019 OW TO GET THE WINDOWS SERVER IOT ISO FILE 10. Contact Support ............................. 15 11. Warranty ..............................15 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 3: Overview

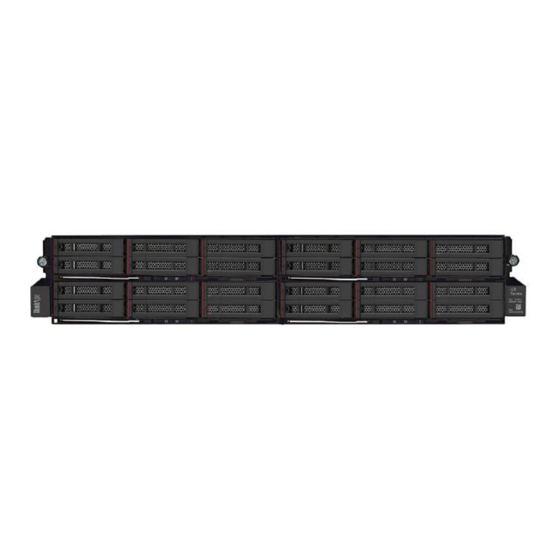

There are four nodes in a 2U chassis, each with six 2.5 inch form factor drive bays. Each node has a power button located below the node’s center column drive bays. Full control of all nodes is available via a web browser using XClarity administrator. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 4: Product Ratings
Minimum: 200 V AC • Maximum: 240 V AC Input kilovolt-amperes (kVA), approximately: • Minimum: 0.153 kVA • Maximum: 2.61 kVA • Hot swap fans Three 60x60x56mm fans • Two 80x80x80mm fans Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 5: Site Preparation
Install near appropriate AC outlets, and Ethernet hubs or individual jacks. Be sure to install an AC Power Disconnect for the entire rack assembly. The Power Disconnect must be clearly marked. Ground the rack assembly properly to avoid electrical shock. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 6: Unpacking The Appliance
DNS network services • DHCP network services • Windows Server to run Nutanix Foundation (dedicated or virtual) connected to the same switch as the new appliance to be configured. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 7: Installing The Appliance In A Rack
Minimum depth of 70 mm (2.76 in.) between the front mounting flange and inside of the front door. • Minimum depth of 157 mm (6.18 in.) between the rear mounting flange and inside of the rear door. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 8: Rear Panel View
There are two rows of four RJ45s each in the top rear panel center bay. Connect for Connect for connection) Node 4 connection) Node 3 Connect for Connect for connection) Node 2 connection) Node 1 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 9: Rear Panel Connector And Device Locations
#9 PCIe rear panel slot for Node 2, with a dual port SFP+ 10/25 gigabit interface that requires a GBIC (customer supplied) #10 PCIe rear panel slot for Node 4, with a dual port SFP+ 10/25 gigabit interface that requires a GBIC (customer supplied) Slot 1 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 10: Front Panel Operation
In the standby state, the compute node responds to remote power-on requests sent to the Lenovo XClarity Controller. The XClarity controller is accessed with a browser-based interface via the dedicated controller LAN port on the rear of the enclosure. Slot 2 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... -
Page 11: System Administration With Xclarity Administrator
5. To manage a node, select the node checkbox, and then click the Manage Selected option to get into node screen. Record the DHCP issued IP addresses for the nodes. Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node... - Page 12 Arcserve Appliances N Series Hardware Installation Guide for Lenovo Four Node...
-
Page 13: Software Sources
How to get the Windows Server 2019 IOT ISO file 1. Customers that have validated the Arcserve orders can use the following link (always the same) from the order confirmation documents. The Product license key is a sticker on the delivered unit. - Page 14 A confirmation message appears, and the cited email address gets a confirmation of the request. 4. The Arcserve order administrator validates the request. Within a two-business day interval, the system will generate an email to the customer provided address with a customer specific link. The link of each customer is unique.
-
Page 15: Contact Support
In no event will Arcserve be liable for any loss or damage, direct or indirect, from the use of this document, including, without limitation, lost profits, business interruption, goodwill, or lost data, even if Arcserve is expressly advised in advance of the possibility of such damage.
