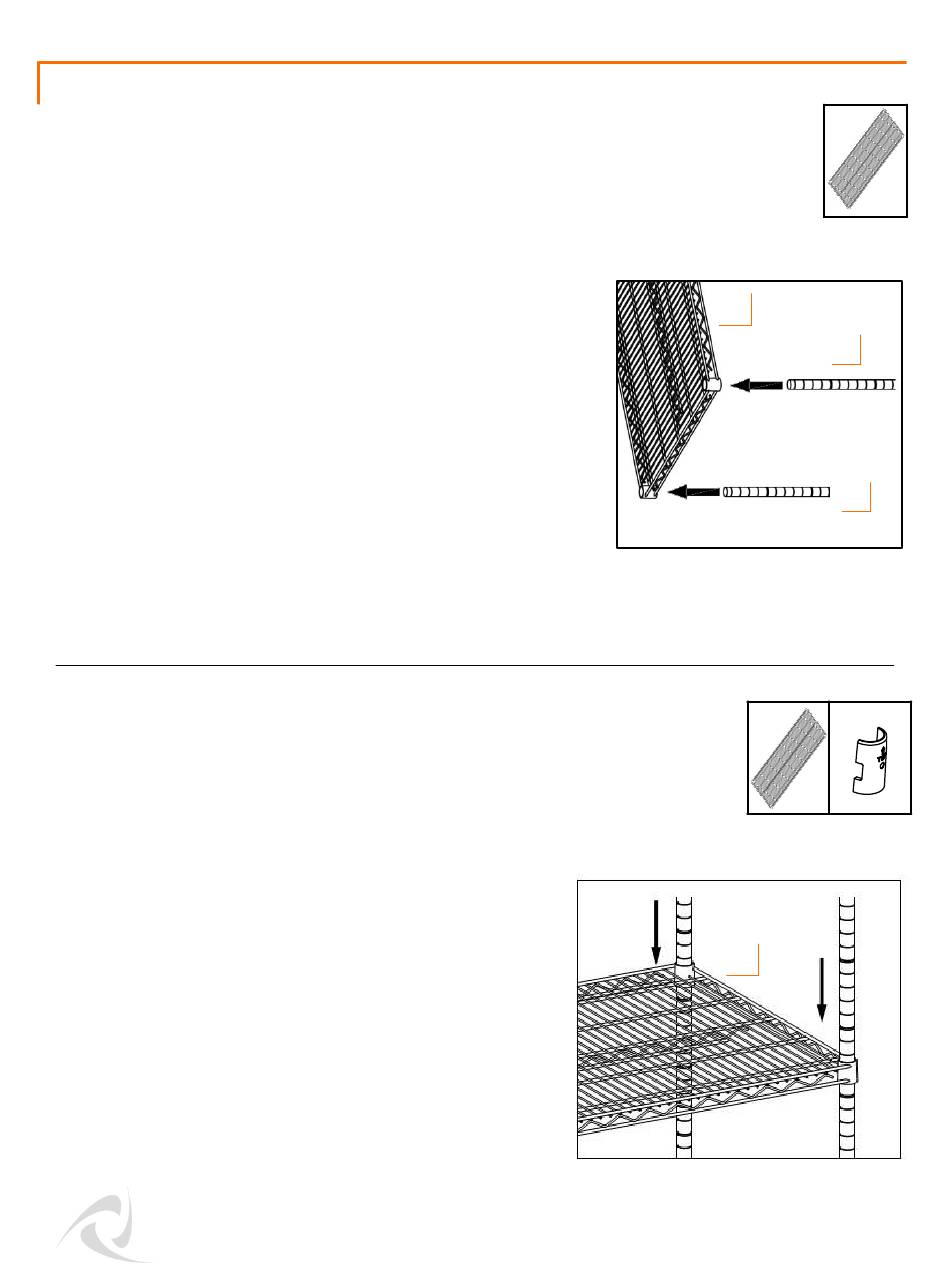

ASSEMBLY INSTRUCTIONS
STEP 3
Place SHELF (C) on its side and slide the (4) BOTTOM POLES (B)
through the (4) holes in the SHELF (C). Make sure that the
SHELF (C) corner cylinders are positioned over the SLIP
SLEEVES (D).
Stand the unit upright.
Note:
• The level side of the SHELF (C) is the TOP side (the TRINITY
logo on the corner cylinders should be right-side up.)
• Use a rubber mallet, if needed, to secure the SHELF (C).
• For convenience, place BOTTOM POLES (B) with Locking
Casters on the long side of the shelf if the rack will be
pushed against a wall OR if the rack is frequently rolled
around like a cart, place BOTTOM POLES (B) with Locking
Casters on the side being pushed or pulled.
STEP 4
On BOTTOM POLE (B), place 1 pair of SLIP SLEEVES (D) at a
desired distance between SHELVES (C). Please make sure the
arrow on SLIP SLEEVES (D) faces up and the word "TOP" is
right side up. Do this for each BOTTOM POLE (B), and make
sure that the heights of SLIP SLEEVES (D) on each BOTTOM
POLE (B) are identical.
Lower SHELF (C) over the BOTTOM POLES (B) so that the
corner cylinders of the SHELF (C) are positioned over the SLIP
SLEEVES (D).
Make sure to put SLIP SLEEVES (D) at the desired heights for
each item, installing one shelf at a time.
Note:
Use a rubber mallet, if needed, to secure the SHELVES (C).
3
C (1)
C
B
B
C (1) D (8)
C
