ASSEMBLY INSTRUCTIONS

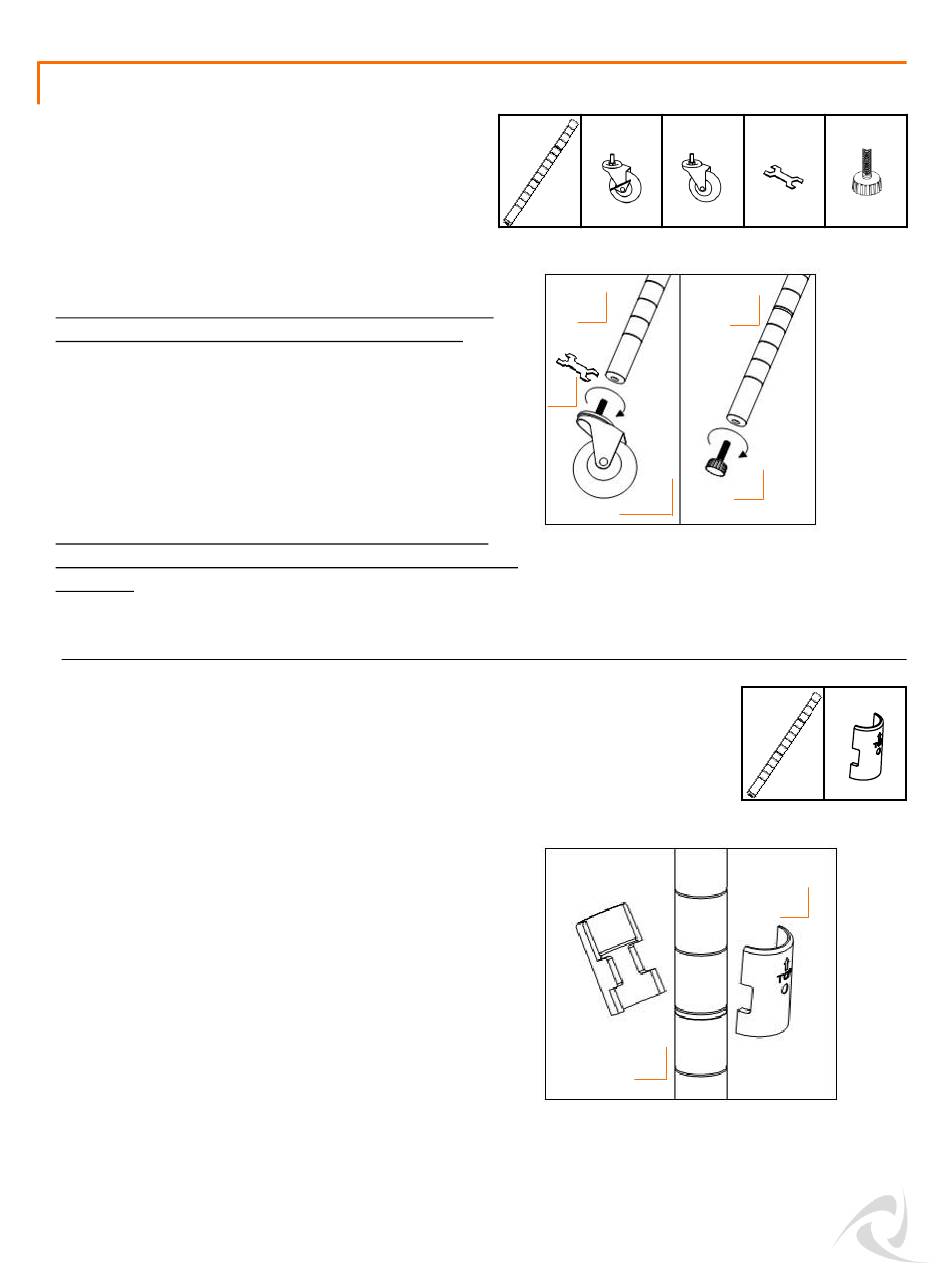

STEP 1
Stationary Option
Screw each FEET LEVELER (H) into the bottom of each
BOTTOM POLE (B). Turn clockwise to screw in place.
Warning: For safety, at least half of the FEET LEVELER
(H) stem must be screwed into BOTTOM POLE (B).
Mobile Option
Screw each CASTER (E &F) into the bottom of a BOTTOM
POLE (B). Turn clockwise to screw in place. Use the
provided WRENCH (G) to tighten completely. Make sure
the locking casters are on the same side.
Use the provided WRENCH (G) to tighten completely.
Failure to do as instructed could result in the caster stem
breaking.
STEP 2
On BOTTOM POLE (B), place 1 pair of SLIP SLEEVES (D) at
the desired level no higher than the 3
the bottom. Please make sure the arrow on SLIP SLEEVES
(D) faces up and the word "TOP" right-side up. Do this
for each BOTTOM POLE (B) and make sure slip sleeve
heights are identical for all (4) BOTTOM POLES (B).
Note that each POLE (A & B) has slight horizontal line
indentations at 1" intervals. Each SLIP SLEEVE (D) has
raised horizontal lines inside designed to lock in place on
POLE (A & B).
Slide the pair of SLIP SLEEVES (D) until you hear a click to
confirm the pair is locked onto BOTTOM POLE (B). Do
NOT place more than one pair on each POLE (A & B) at
one time.
Note: There will be a very small gap in-between two locked SLIP SLEEVES (D)—this is normal.
