- Page 1 Installation instructions Small reservoir refill filter Model 84013 and 84013A Date of issue April 2018 Form number 404044 Version...
-
Page 2: Table Of Contents

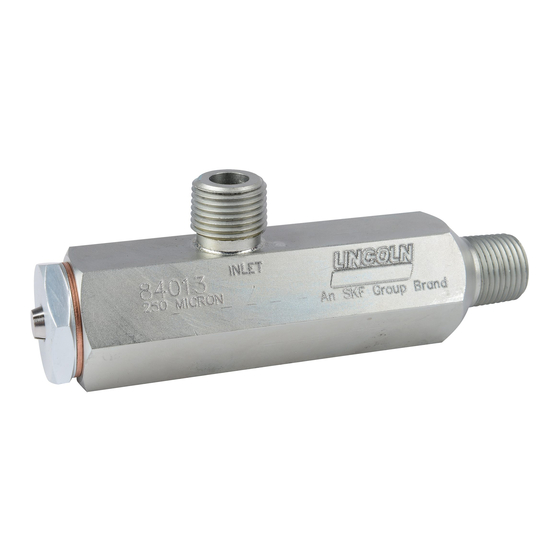

Contents Description Safety Model 84013 and 84013A are grease filters Read and carefully observe operating used to refill small reservoirs of pumps such instructions before unpacking and operating as model 203 QuickLub pumps Safety filter Filter must be operated, maintained Explanation of signal words and repaired exclusively by persons familiar for safety... -
Page 3: Installation
Installation Operation NOTE Filter 84013 and 84013A should be Grease flows through inlet (11) and exits Shut off all grease flow into mounted between delivery pump and from outlet (12) under normal conditions grease reservoir grease reservoir being refilled while filtering out impurities exceeding 250 Apply Teflon-based thread sealant to all Do not exceed maximum flow rate microns in size (500 micron for 84013A)*... -
Page 4: Disassembly And Cleaning
Disassembly and NOTE DANGER cleaning Bypass filter assembly (14) includes Do not use mineral spirits without filter element (1) with precision personal protective equipment Release of grease through bypass toleranced to operate in filter body (8) Failure to comply will result in death outlet (13) (Fig. -
Page 5: Bypass Pin Replacement
Bypass pin Filter assembly tips replacement 1 To aid bypass filter assembly alignment, insert rod-like tool, such as t-handle hex Removal wrench, through outlet (11) of filter body (8) into bypass filter assembly (14) 1 Using in t-handle hex wrench, via spring (7) (Fig. -
Page 6: Parts List
Fig. IPB 1* Parts list Item number Description Part number Filter element assembly 276645 1) 2) Bypass pin 276540 O-ring 243631 Gasket 31002 276539 Hex screw 279039 Spring 276641 Filter body Bracket, filling filter* 279657 Washer 276915 Retaining ring 276643 Slide 276534 Not available as a service part... - Page 7 This page left intentionally blank...
-
