Page 1: Filter Cleaning Option

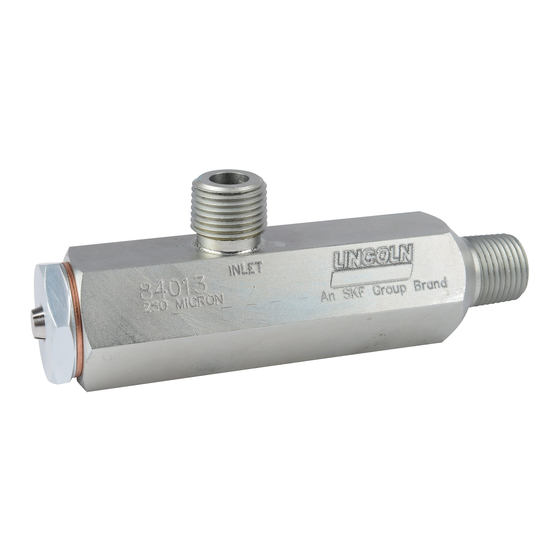

Installation instructions Small reservoir reill ilter Model 84013 and 84013A Date of issue May 2017 Form number 404044 Version... -
Page 2: Table Of Contents
Contents Description Safety Model 84013 and 84013A are grease ilters Read and carefully observe these operating for reilling small reservoirs of pumps such instructions before unpacking and operating as model 203 QuickLub pumps Safety ilter Filter must be operated, maintained... -
Page 3: Installation
Installation Operation NOTE Filter 84013 and 84013A should be Shut off all grease low into grease Grease lows into inlet (11) and exits through mounted between delivery pump and reservoir outlet (12) under normal conditions while grease reservoir being reilled... -
Page 4: Disassembly And Cleaning
Disassembly and NOTE DANGER Bypass ilter assembly (14) includes Do not use mineral spirits without cleaning ilter element (1) with precision personal protective equipment toleranced to operate in ilter body (8) Failure to comply may result in death Release of grease through The sliding cylinder (15) that is loctited or serious injury bypass outlet (13) (Fig. -
Page 5: Bypass Pin Replacement
Bypass pin Filter assembly tips replacement To aid bypass ilter assembly alignment, insert a rod-like tool, such as a t-handle Removal hex wrench, through outlet (11) of ilter Using a in t-handle hex wrench, body (8) into bypass ilter assembly (14) remove hex screw (6) (Fig. -
Page 6: Filter Assembly Tips
Fig. IPB 1 Parts list Item number Description Part number Filter element assembly 1) 2) 276645 Bypass pin 276540 O-ring 243631 Gasket 31002 276539 Hex screw 279039 Spring 276641 Filter body Washer 276915 Retaining ring 276643 Slide 276534 Not available as a service part Alternative ilter element assembly 276645A (500 um) - Page 7 This page left intentionally blank...
-
Page 8: Warranty
| lincolnindustrial.com ® SKF and Lincoln are registered trademarks of the SKF Group © SKF Group 2017 The contents of this publication are the copyright of the publisher and may not be reproduced (even...
