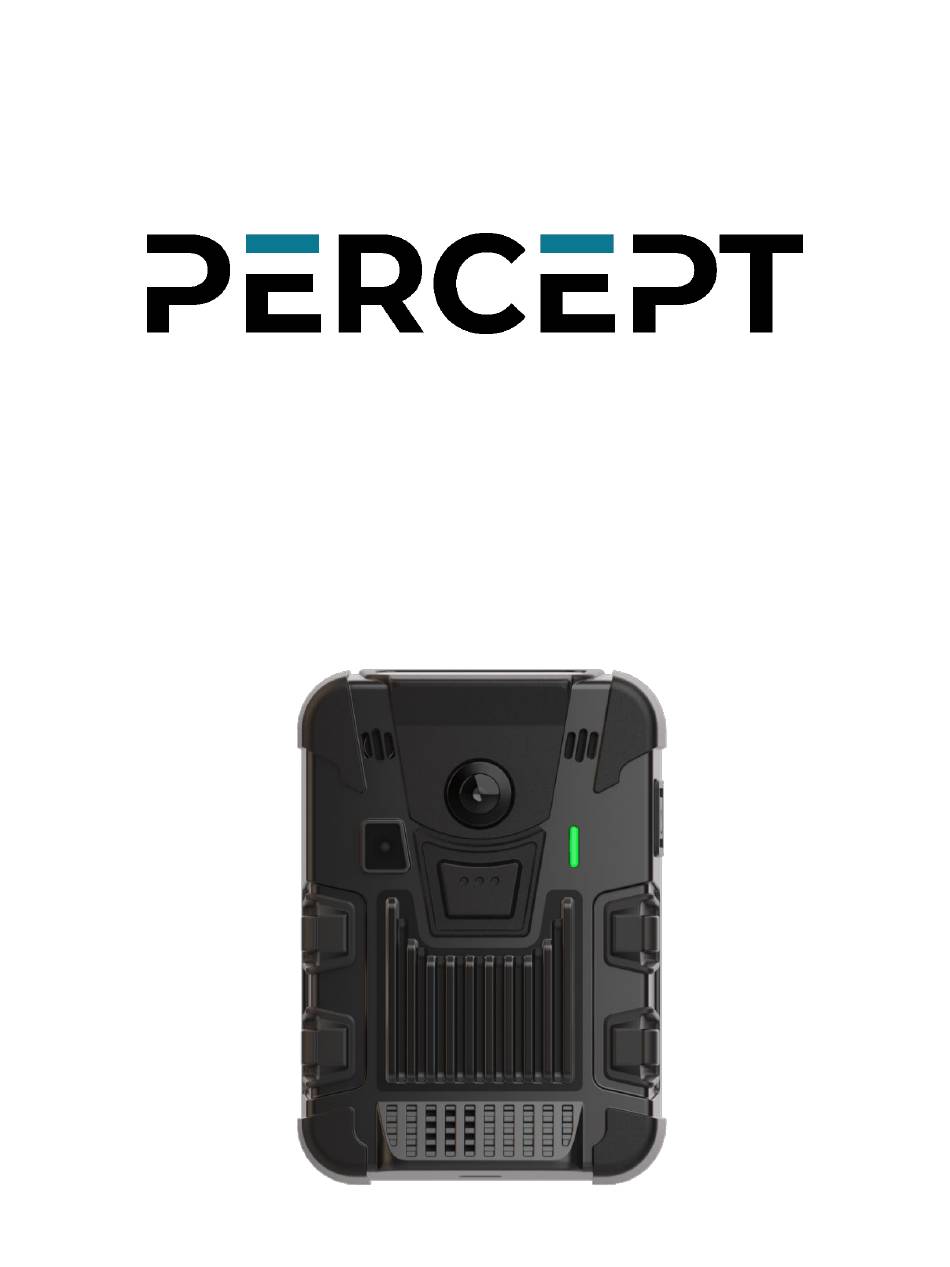

- Page 1 PERCEPT Body Camera User Manual Document Version 1.0 PERCEPT User Guide support@ionodes.com | www.ionodes.com...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall IONODES be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without limitation,...
-
Page 3: Table Of Contents
Configuration/Video ..........................28 7.3.5 Configuration/Microphone ........................31 7.3.6 Configuration/Speaker ..........................32 7.3.7 Configuration/Recorder .......................... 32 7.3.8 Configuration/Integration ........................35 7.3.9 Peripherals .............................. 35 7.3.10 Live Viewer ............................. 36 7.3.11 Recording..............................36 7.3.12 Security ..............................37 support@ionodes.com | www.ionodes.com | 450-696-1060... - Page 4 7.3.13 Maintenance ............................38 Troubleshooting ..............................39 Common issues & resolutions ........................39 Contact IONODES Support ........................... 39 Annex – Statement Limited Warranty .......................... 40 support@ionodes.com | www.ionodes.com | 450-696-1060...
-
Page 5: What Is Included With The Product
Warning: Please carefully read and acknowledge the safety and charging instructions below before performing any maintenance on the battery of your body camera! Warning: Using a 3rd party battery (not supplied by IONODES) will void your body camera’s warranty. support@ionodes.com | www.ionodes.com | 450-696-1060... - Page 6 • from each other. Recycle or dispose of this battery in accordance with local regulations. • Battery Power rating Below are the PERCEPT Body Camera battery specifications: Rated Voltage: 3.8 VDC (nominal) • Rated Current: 2.8A (max) • (Internal battery powered device, external DC input only for charging) •...
-
Page 7: Product Compliance
The product has been tested to comply to ICES-3(B)/NMB-3(B). This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the interference-causing equipment standard entitled: “Digital Apparatus,” ICES-003 of the Canadian Department of Communications. support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 8: Product Overview

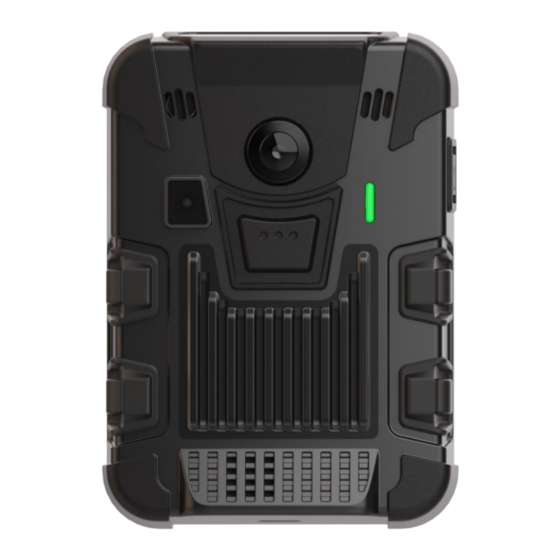

3 Product Overview The IONODES PERCEPT Body Camera features multiple innovative functions that make it a truly wearable IoT device. It also includes user control interfaces to enable audio/video recording, take still pictures, as well as other auxiliary functions, while providing feedback to the user on the current state of operation. -
Page 9: Getting Started
4 Getting started 4.1 Charging the camera To charge the PERCEPT Body Camera, use one of the two following options: a) PERCEPT DCK1 Single Unit Docking Station (available as an optional accessory from IONODES) b) QuickCharge 3.0 USB wall charger or power bank, with a USB Type-A female connector... -
Page 10: Attaching The Universal Mount
Dock) by simply sliding them onto the hook and then twisting them into the desired position. Note: Multiple Klick Fast mounting accessories are available as optional items. Please contact your authorized IONODES reseller for more information. support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 11: Care And Cleaning
Warning: Do not use any type of solvent, such as thinner and benzene, as they may damage the surface of the product. Warning: Do not use abrasives of any kind to clean the camera, as they can scratch the lens cover, leading to degraded image quality. support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 12: Basic Operations
(records video continuously until instructed to stop) and event recording (tags events if already in continuous recording or records a short clip based on pre- and post-buffer if not already in continuous recording mode). The machine state for both modes is presented in the diagram below. support@ionodes.com | www.ionodes.com | 450-696-1060... - Page 13 • Signal: Disconnected IP address MAC address • Signal: Weak • Signal: Moderate Show cellular status Press power button for <3 sec and cycle displayed data • Signal: Good • Signal: Great • Signal: Disconnected support@ionodes.com | www.ionodes.com | 450-696-1060...
- Page 14 **rapid flashing: alternating ON for 250ms/ OFF for 250ms ***heartbeat flashing: ON for 250ms/ OFF for 250ms/ ON for 250ms/ OFF for 1250ms ****Ethernet status will be available when connecting to the network via the docking station support@ionodes.com | www.ionodes.com | 450-696-1060...
-
Page 15: Body Camera States
Firmware updating Firm. Update… *flashing: alternating ON for 500ms/ OFF for 500ms **rapid flashing: alternating ON for 250ms/ OFF for 250ms ***heartbeat flashing: ON for 250ms/ OFF for 250ms/ ON for 250ms/ OFF for 1250ms support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 16: Advanced Operations
QR scanning mode after about 15 sec. If the QR code is not recognized at all (for instance if it’s not a QR code generated from the dedicated IONODES web portal) the message “QR Code Invalid”... - Page 17 When successfully connected to the Wi-Fi network, the IP address of the device will be displayed on the body camera’s OLED screen. The user simply needs to scroll through the presented information on the OLED screen by repeatedly short pressing the power button on the side of the chassis. support@ionodes.com | www.ionodes.com | 450-696-1060...
- Page 18 OLED screen. After that the user can scan a new QR code containing only Wi-Fi access information. This is achieved by enabling the “Reset WiFi settings only” in the QR Code Generator web page. support@ionodes.com | www.ionodes.com | 450-696-1060...
-
Page 19: Motion Sensor Calibration
This password must be between 8 and 32 characters in length and contain at least 3 out of 4 types of characters from the following: numeric, lowercase, uppercase and special character (!@#$%*()+=). support@ionodes.com | www.ionodes.com | 450-696-1060... - Page 20 Right next to the “online” indicator there is a small toggle for changing the language of the web interface from English (En) to French (Fr) and vice-versa. support@ionodes.com | www.ionodes.com | 450-696-1060...
-
Page 21: Dashboard
7.3.1 Dashboard Upon successfully login to the web interface, a Dashboard screen will be presented. This screen shows the device’s product information, system status and health status. support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 22: Configuration/System
By validating the option “Enable Protection for Multiple Login Failures”, the device is instructed to block all login attempts after X failed ones, until the timeout of Y seconds runs out (X and Y are user-configurable). support@ionodes.com | www.ionodes.com | 450-696-1060... - Page 23 You can also control certain streaming operations when the body camera is docked. Enable the front Flashlight and set its brightness level • Note: Continuous use of the flashlight will drain the battery very quickly, especially on high brightness levels. support@ionodes.com | www.ionodes.com | 450-696-1060...
-
Page 24: Configuration/Network
The administrator can configure the type of data that is allowed over the cellular network, such as live audio & video, recorded clips, system information files or firmware updates. For metadata streaming (GPS or system resources usage) the frequency of the updates is also user configurable. support@ionodes.com | www.ionodes.com | 450-696-1060... - Page 25 Host Name Configuration – Set the body camera’s network name. • Streaming – Provide streaming control points • o Media – Prevent playback streaming over a wireless link o Metadata - Set the sampling rate for the metadata (GPS and system resources usage) support@ionodes.com | www.ionodes.com | 450-696-1060...
- Page 26 Multicast – Change the global multicast settings for all outgoing multicast streams. By default, the • multicast functionality is disabled. Once the user enables it, each outgoing multicast stream will be automatically assigned a multicast IP address and port based on the configured global range. support@ionodes.com | www.ionodes.com | 450-696-1060...
- Page 27 65535 No multicast possible No assignation (RTSP multicast possible connection refused) Miscellaneous ports - Enable or disable various system ports used for auxiliary functionality (like • system logs and command console) support@ionodes.com | www.ionodes.com | 450-696-1060...
-
Page 28: Configuration/Video
There are several throttling stages. First-stage and device shutdown thresholds are listed below. First Threshold Device shutdown System 71°C 80°C Video Sensor 61°C 80°C Battery 51°C 60°C support@ionodes.com | www.ionodes.com | 450-696-1060... - Page 29 This is done on-the-fly by the body camera and may lead to an increase in the sensor’s temperature. For the primary and secondary profiles, the following settings are available: o Enable Encoder – Allows you to enable/disable the specific profile. support@ionodes.com | www.ionodes.com | 450-696-1060...
- Page 30 Target bit rate – Select the desired target bitrate (expressed in kbps) o Set Optimal Target Bit Rate – Sets an optimal value (based on IONODES experience) for the target bit rate, considering the current resolution and frame rate o Intra interval –...
-
Page 31: Configuration/Microphone
Under the Configuration section, select the Microphone tab to perform the following operations: Enable or disable the onboard dual microphone system. • Control the audio gain. • Configure the compression for the audio (type/ channels/ bitrate) • support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 32: Configuration/Speaker
Enable or disable the onboard speaker • Configure the output volume • 7.3.7 Configuration/Recorder Under the Configuration section, select the Recorder tab to perform the following operations: View the total and currently available capacity of the onboard SD card • support@ionodes.com | www.ionodes.com | 450-696-1060... - Page 33 Video Profile: the profile to be used for recording purposes o Pre-Recording: defines the recording file settings before recording is triggered o Post-Recording: defines the recording file settings after an event recording was triggered o Mute Audio: disables the audio recording support@ionodes.com | www.ionodes.com | 450-696-1060...
- Page 34 Grooming Mode: defines what files will be overwritten when there is no more available space on the SD card o Retention Time: defines the duration of time that recorded files must be maintained when grooming in retention mode o Enable: Activate or disable Image Recording support@ionodes.com | www.ionodes.com | 450-696-1060...
-
Page 35: Configuration/Integration
Enabling the integration to PERCEPT Cloud will change the microphone from stereo to mono. 7.3.9 Peripherals The Peripherals section offers the user an overview of the current status of the onboard function buttons and flashlight. support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 36: Live Viewer
(to prevent them from being groomed), unlocked or deleted. Note: If the list of recorded clips is very long, it might take a few seconds for the body camera to display it to the end user. support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 37: Security
*in addition to the Poweruser role: can access the Maintenance section and can perform a firmware update and • reset to factory default settings Administrator *in addition to the Superuser role: can create or modify all user accounts • support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 38: Maintenance
(with or without including the network settings). You can also identify the current device (if you have multiple units of the same type in the same location) by flashing its status LED and vibrating. support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 39: Troubleshooting
NTP server (admin). 8.2 Contact IONODES Support For more information, please contact our technical support team: • Call: 450-696-1060 or 1-844-696-1060 (North America Toll Free) • Send an email to: support@IONODES.com • Web request: https://support.IONODES.com/supportcenter/s/contactsupport support@ionodes.com | www.ionodes.com | 450-696-1060... -
Page 40: Annex - Statement Limited Warranty
Annex – Statement Limited Warranty Please visit www.ionodes.com for the latest warranty information on all our products. support@ionodes.com | www.ionodes.com | 450-696-1060...
