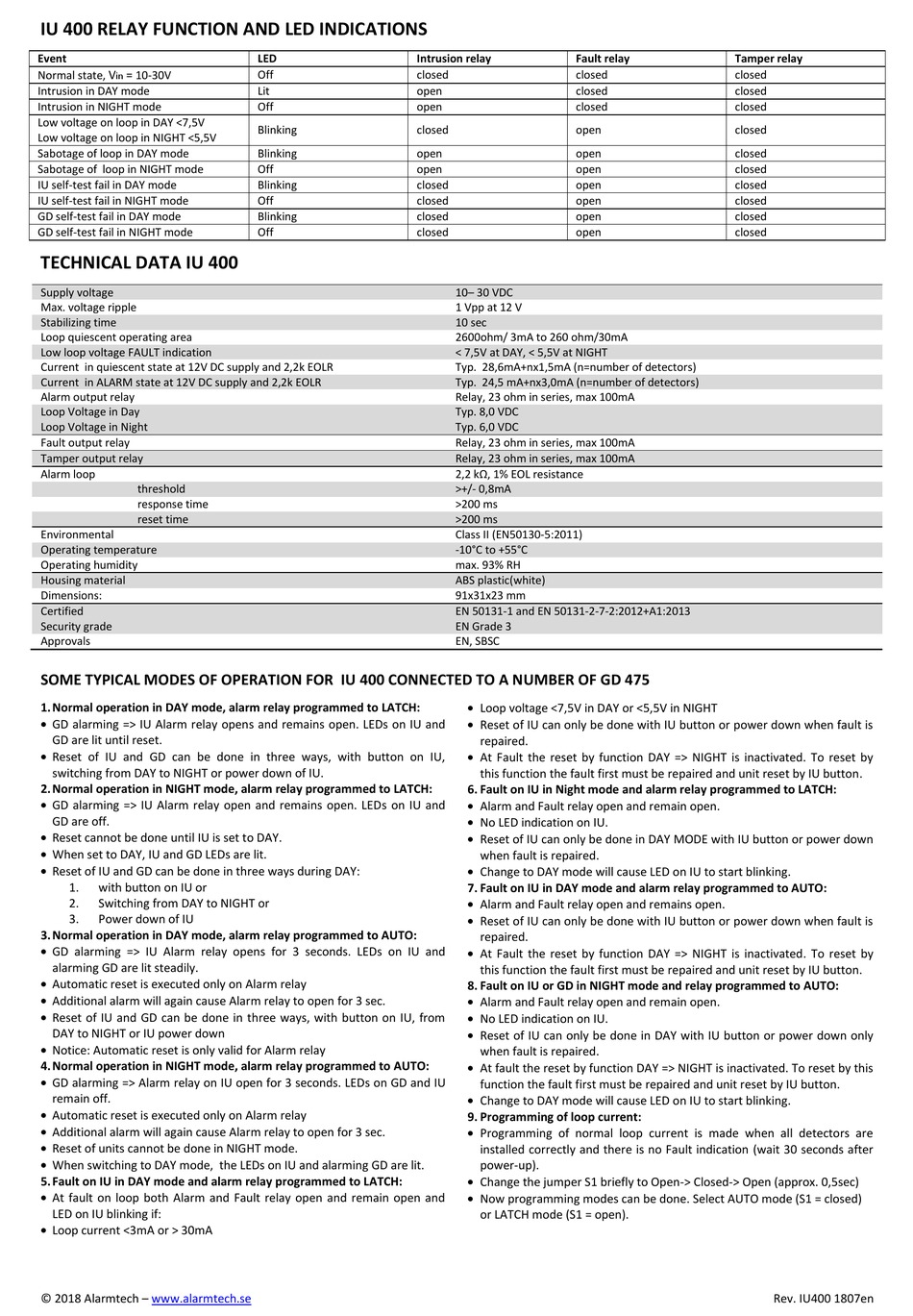

Alarmtech IU 400 Quick Manual page 2

IU 400 RELAY FUNCTION AND LED INDICATIONS
Event
Normal state, V = 10-30V
in
Intrusion in DAY mode
Intrusion in NIGHT mode
Low voltage on loop in DAY <7,5V
Low voltage on loop in NIGHT <5,5V
Sabotage of loop in DAY mode
Sabotage of loop in NIGHT mode
IU self-test fail in DAY mode
IU self-test fail in NIGHT mode
GD self-test fail in DAY mode
GD self-test fail in NIGHT mode
TECHNICAL DATA IU 400
Supply voltage
Max. voltage ripple
Stabilizing time
Loop quiescent operating area
Low loop voltage FAULT indication
Current in quiescent state at 12V DC supply and 2,2k EOLR
Current in ALARM state at 12V DC supply and 2,2k EOLR
Alarm output relay
Loop Voltage in Day
Loop Voltage in Night
Fault output relay
Tamper output relay
Alarm loop
threshold
response time
reset time
Environmental
Operating temperature
Operating humidity
Housing material
Dimensions:
Certified
Security grade
Approvals
SOME TYPICAL MODES OF OPERATION FOR IU 400 CONNECTED TO A NUMBER OF GD 475
1. Normal operation in DAY mode, alarm relay programmed to LATCH:
 GD alarming => IU Alarm relay opens and remains open. LEDs on IU and
GD are lit until reset.
 Reset of IU and GD can be done in three ways, with button on IU,
switching from DAY to NIGHT or power down of IU.
2. Normal operation in NIGHT mode, alarm relay programmed to LATCH:
 GD alarming => IU Alarm relay open and remains open. LEDs on IU and
GD are off.
 Reset cannot be done until IU is set to DAY.
 When set to DAY, IU and GD LEDs are lit.
 Reset of IU and GD can be done in three ways during DAY:
1. with button on IU or
2. Switching from DAY to NIGHT or
3. Power down of IU
3. Normal operation in DAY mode, alarm relay programmed to AUTO:
 GD alarming => IU Alarm relay opens for 3 seconds. LEDs on IU and
alarming GD are lit steadily.
 Automatic reset is executed only on Alarm relay
 Additional alarm will again cause Alarm relay to open for 3 sec.
 Reset of IU and GD can be done in three ways, with button on IU, from
DAY to NIGHT or IU power down
 Notice: Automatic reset is only valid for Alarm relay
4. Normal operation in NIGHT mode, alarm relay programmed to AUTO:
 GD alarming => Alarm relay on IU open for 3 seconds. LEDs on GD and IU
remain off.
 Automatic reset is executed only on Alarm relay
 Additional alarm will again cause Alarm relay to open for 3 sec.
 Reset of units cannot be done in NIGHT mode.
 When switching to DAY mode, the LEDs on IU and alarming GD are lit.
5. Fault on IU in DAY mode and alarm relay programmed to LATCH:
 At fault on loop both Alarm and Fault relay open and remain open and
LED on IU blinking if:
 Loop current <3mA or > 30mA
© 2018 Alarmtech – www.alarmtech.se
LED Intrusion relay
Off closed
Lit open
Off open
Blinking closed
Blinking open
Off open
Blinking closed
Off closed
Blinking closed
Off closed
Fault relay
closed
closed
closed
open
open
open
open
open
open
open
10– 30 VDC
1 Vpp at 12 V
10 sec
2600ohm/ 3mA to 260 ohm/30mA
< 7,5V at DAY, < 5,5V at NIGHT
Typ. 28,6mA+nx1,5mA (n=number of detectors)
Typ. 24,5 mA+nx3,0mA (n=number of detectors)
Relay, 23 ohm in series, max 100mA
Typ. 8,0 VDC
Typ. 6,0 VDC
Relay, 23 ohm in series, max 100mA
Relay, 23 ohm in series, max 100mA
2,2 kΩ, 1% EOL resistance
>+/- 0,8mA
>200 ms
>200 ms
Class II (EN50130-5:2011)
-10°C to +55°C
max. 93% RH
ABS plastic(white)
91x31x23 mm
EN 50131-1 and EN 50131-2-7-2:2012+A1:2013
EN Grade 3
EN, SBSC
 Loop voltage <7,5V in DAY or <5,5V in NIGHT
 Reset of IU can only be done with IU button or power down when fault is
repaired.
 At Fault the reset by function DAY => NIGHT is inactivated. To reset by
this function the fault first must be repaired and unit reset by IU button.
6. Fault on IU in Night mode and alarm relay programmed to LATCH:
 Alarm and Fault relay open and remain open.
 No LED indication on IU.
 Reset of IU can only be done in DAY MODE with IU button or power down
when fault is repaired.
 Change to DAY mode will cause LED on IU to start blinking.
7. Fault on IU in DAY mode and alarm relay programmed to AUTO:
 Alarm and Fault relay open and remains open.
 Reset of IU can only be done with IU button or power down when fault is
repaired.
 At Fault the reset by function DAY => NIGHT is inactivated. To reset by
this function the fault first must be repaired and unit reset by IU button.
8. Fault on IU or GD in NIGHT mode and relay programmed to AUTO:
 Alarm and Fault relay open and remain open.
 No LED indication on IU.
 Reset of IU can only be done in DAY with IU button or power down only
when fault is repaired.
 At fault the reset by function DAY => NIGHT is inactivated. To reset by this
function the fault first must be repaired and unit reset by IU button.
 Change to DAY mode will cause LED on IU to start blinking.
9. Programming of loop current:
 Programming of normal loop current is made when all detectors are
installed correctly and there is no Fault indication (wait 30 seconds after
power-up).
 Change the jumper S1 briefly to Open-> Closed-> Open (approx. 0,5sec)
 Now programming modes can be done. Select AUTO mode (S1 = closed)
or LATCH mode (S1 = open).
Tamper relay
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
Rev. IU400 1807en
