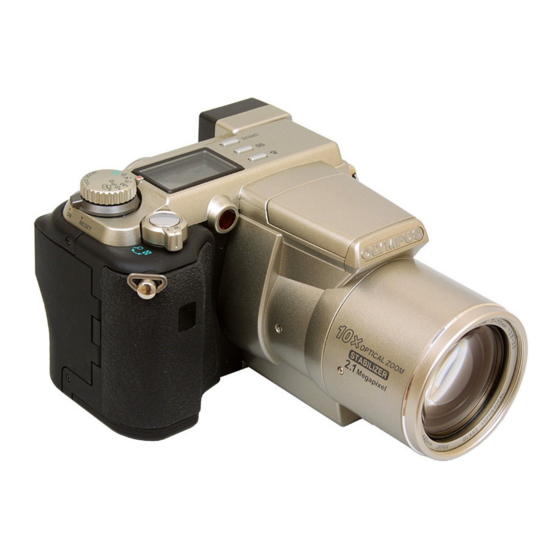

Olympus CAMEDIA C-2100 Ultra Zoom Quick Start Manual

http://www.olympus-europa.com

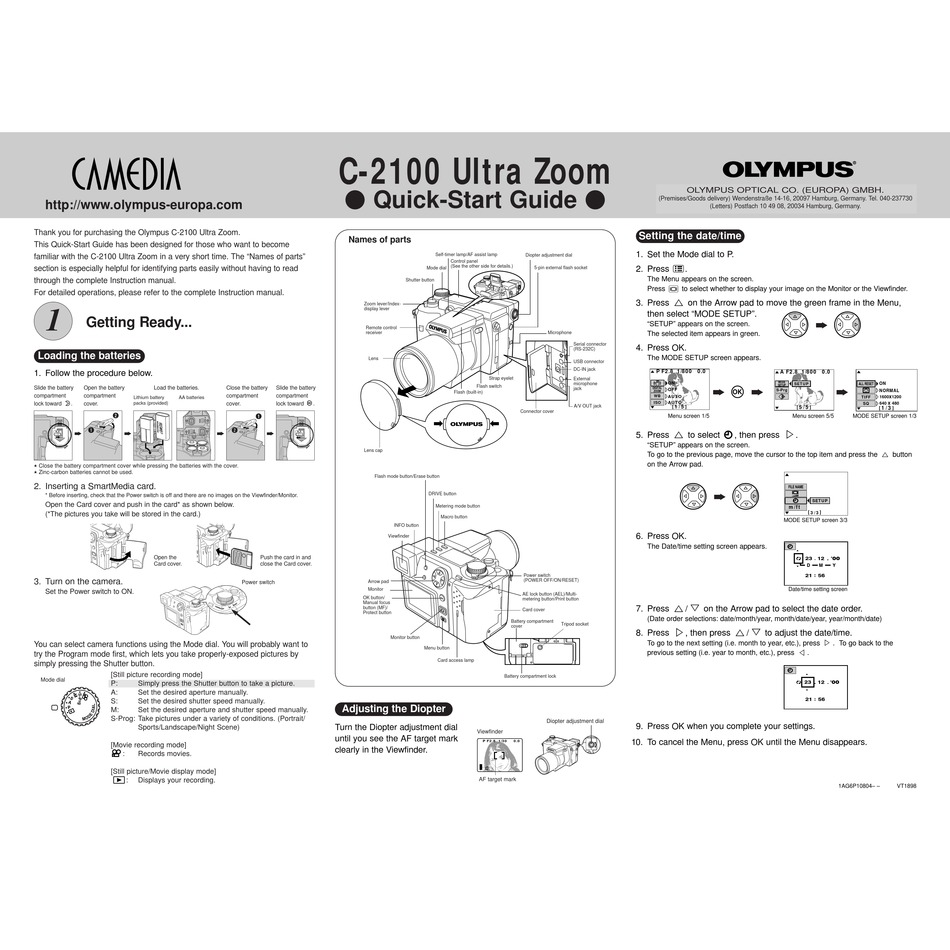

Thank you for purchasing the Olympus C-2100 Ultra Zoom.
This Quick-Start Guide has been designed for those who want to become
familiar with the C-2100 Ultra Zoom in a very short time. The "Names of parts"
section is especially helpful for identifying parts easily without having to read
through the complete Instruction manual.
For detailed operations, please refer to the complete Instruction manual.
1

Getting Ready...

Loading the batteries
1. Follow the procedure below.
Slide the battery Open the battery Load the batteries.
compartment compartment
Lithium battery AA batteries
lock toward . cover. packs (provided)
2
1
Close the battery compartment cover while pressing the batteries with the cover.
Zinc-carbon batteries cannot be used.
2. Inserting a SmartMedia card.
* Before inserting, check that the Power switch is off and there are no images on the Viewfinder/Monitor.
Open the Card cover and push in the card* as shown below.
(*The pictures you take will be stored in the card.)
Open the
Card cover.
3. Turn on the camera.
Set the Power switch to ON.
You can select camera functions using the Mode dial. You will probably want to
try the Program mode first, which lets you take properly-exposed pictures by
simply pressing the Shutter button.
[Still picture recording mode]
Mode dial
P: Simply press the Shutter button to take a picture.
A: Set the desired aperture manually.
S: Set the desired shutter speed manually.
M: Set the desired aperture and shutter speed manually.
S-Prog: Take pictures under a variety of conditions. (Portrait/
Sports/Landscape/Night Scene)
[Movie recording mode]
: Records movies.
[Still picture/Movie display mode]
: Displays your recording.
C-2100 Ultra Zoom
Quick-Start Guide
Names of parts
Shutter button
Zoom lever/Index-
display lever
Remote control
receiver
Lens
Close the battery Slide the battery
compartment compartment
cover. lock toward .
1
2
Lens cap
Flash mode button/Erase button
INFO button
Viewfinder
Push the card in and
close the Card cover.
Arrow pad
Power switch
Monitor
OK button/
Manual focus
button (MF)/
Protect button
Monitor button
Adjusting the Diopter
Turn the Diopter adjustment dial
until you see the AF target mark
clearly in the Viewfinder.
Self-timer lamp/AF assist lamp
Diopter adjustment dial
Control panel
(See the other side for details.)
5-pin external flash socket
Mode dial
Microphone
Serial connector
(RS-232C)
USB connector
DC-IN jack
Strap eyelet
External
microphone
Flash switch
jack
Flash (built-in)
A/V OUT jack
Connector cover
DRIVE button
Metering mode button
Macro button
Power switch
(POWER OFF/ON/RESET)
AE lock button (AEL)/Multi-
metering button/Print button
Card cover
Battery compartment
Tripod socket
cover
Menu button
Card access lamp
Battery compartment lock
Diopter adjustment dial
Viewfinder
P F2.8 1/30 0.0
AF target mark
OLYMPUS OPTICAL CO. (EUROPA) GMBH.
(Premises/Goods delivery) Wendenstraße 14-16, 20097 Hamburg, Germany. Tel. 040-237730
(Letters) Postfach 10 49 08, 20034 Hamburg, Germany.
Setting the date/time
1. Set the Mode dial to P.
2. Press .
The Menu appears on the screen.
Press to select whether to display your image on the Monitor or the Viewfinder.
3. Press on the Arrow pad to move the green frame in the Menu,
then select "MODE SETUP".
"SETUP" appears on the screen.
The selected item appears in green.
4. Press OK.
The MODE SETUP screen appears.
P F2.8 1/800 0.0
A F2.8 1/800 0.0
MODE
ON
SETUP
SETUP
DIGITAL
OFF
S-Prg
ZOOM OK
WB
AUTO
ISO AUTO
[ 1 / 5 ]
[ 5 / 5 ]
Menu screen 1/5 Menu screen 5/5
5. Press to select , then press .
"SETUP" appears on the screen.
To go to the previous page, move the cursor to the top item and press the
on the Arrow pad.
FILE NAME
m / f t
[ 3 / 3 ]
MODE SETUP screen 3/3
6. Press OK.
The Date/time setting screen appears.
Date/time setting screen
7. Press / on the Arrow pad to select the date order.
(Date order selections: date/month/year, month/date/year, year/month/date)
8. Press , then press / to adjust the date/time.
To go to the next setting (i.e. month to year, etc.), press
previous setting (i.e. year to month, etc.), press .
9. Press OK when you complete your settings.
10. To cancel the Menu, press OK until the Menu disappears.
ON
ALL RESET
NORMAL
x
TIFF 1600 1200
640 x 480
SQ
[ 1 / 3 ]
MODE SETUP screen 1/3
button
SETUP
. To go back to the
1AG6P10804– – VT1898
