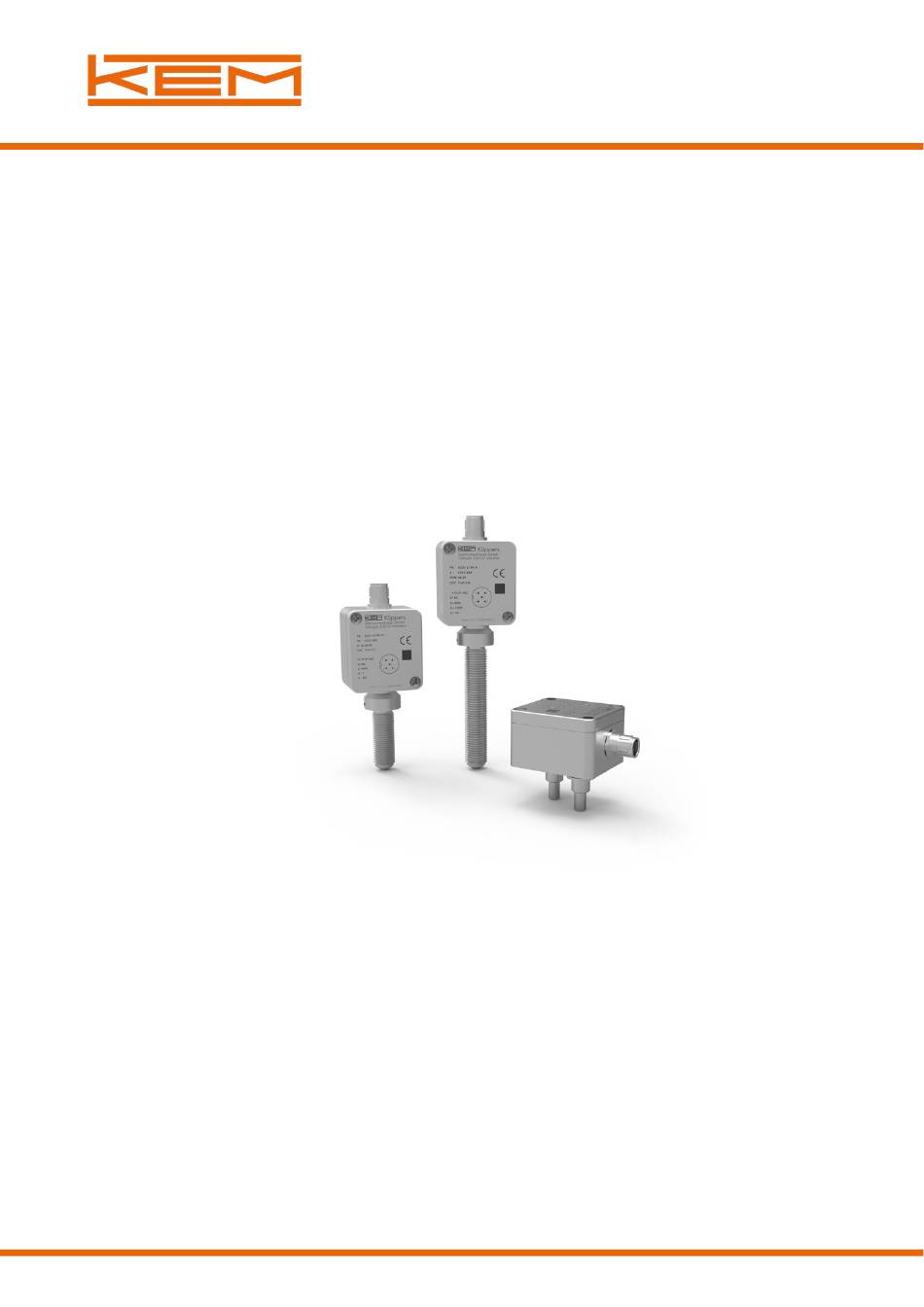

- Page 1 Manual ECO and ECO-COM.B.USB Certified according to DIN EN ISO 9001...
- Page 2 Version Manual-Version ECO_M_ENG_220303_E001 Version: ECO_M_ENG_220303_E001...
-
Page 3: Table Of Contents
5.2. Possible output configurations ........................11 5.2.1. Digital configurations..........................11 5.2.2. Analog configurations ..........................12 5.2.3. 0-10V active + Frequency/Pulse (PP, NPN, PNP) – ECO XX-FW-XX-X ..........14 5.3. Parameterization ............................15 5.3.1. Installation of KEM EcoControl ......................... 15 5.3.2. Connect ECO with PC/laptop ........................15 5.3.3. -
Page 4: Warnings And Notes In This Manual
Warnings and notes in this manual 1. Warnings and notes in this manual NOTE: Notes provide important information for the correct usage of the equipment. If the notes are not observed, a malfunction of the equipment is possible. WARNING! Warnings provide very important information for the correct usage of the equipment. Not observing the warnings may lead to danger for the equipment and to danger for health and life of the user. -
Page 5: General Information
ECO type pulse amplifiers are available with different taps and output configurations. ECO is the generation of amplifiers from KEM that replaces all previous versions and variants. The possible configurations include one or two channels as well as digital and analog outputs. An integrated medium temperature measurement is included as standard. -
Page 6: Ordering Code
General Information Order designations and accessories 2.1.3. Ordering Code Version: ECO_M_ENG_220303_E001... -
Page 7: Accessories
Description ECO-COM.B.USB: Interface adapter: KEM interface to USB. When communicating via ECO-COM.USB.B, the ECO is supplied with voltage via the USB interface. The output functionalities are not available during configuration. KEM EcoControl: P Parameterization software for WINDOWS®. The minimum installation requirements: Windows 10. -
Page 8: Eco-Com.b.usb
Getting started 3.2.2. ECO-COM.B.USB Abb. 2: Bedienelemente von ECO-COM.B.USB 1 = Cable screw connection, M12 socket for connection to ECO 2 = Control LED 3.3. PIN Assignments 3.3.1. ECO / Loop+ (24 V) Digital Output 2 / NAMUR GND / Loop-... -
Page 9: Installation
4.1.1. Plug tap Place the ECO in such a way that the tapping holes in the sensor and the insertion tips match. Screw the ECO onto the sensor hand-tight using the hexagon socket screws (wrench size 3 mm) already inserted in the housing.Schraubabgriff M14x1.5... -
Page 10: Ex Installation
The ECO … -Ex is intrinsically save when operated with zener barriers. Follow the installation instructions from the chapter 4.1. Connect the ECO to isolation amplifiers via a shielded cable.. WARNING! When used in hazardous areas the ECO must not be connected to any circuitry except suitable zener barriers. Version: ECO_M_ENG_220303_E001... -
Page 11: Operation
Operation 5. Operation 5.1. Normal Operation If the ECO is ordered together with a mechanical sensor, the ECO is already set to this and no further settings are required for operation. 5.2. Possible output configurations ECO offers a large number of possible output configurations, which are defined as follows. A distinction is only made on the basis of the hardware configurations. -
Page 12: Analog Configurations
The analog outputs also have the option of signaling an error. 5.2.2.1. 4-20 mA Passive + Frequency/Pulse (NPN) – ECO XX-AN-XX-X In addition to the ECO XX-PN-XX-X configuration, a passive 4-20 mA current loop is available here, which also supplies the device with power (two-wire operation). -
Page 13: Fig 4: Ecocontrol Configuration Interface
Operation 5.2.2.2. 0-20 mA Active + Frequency/Pulse (PP, NPN, PNP) – ECO XX-FV-XX-X This configuration offers an active current loop in addition to the frequency/pulse functionality. Fig 4: EcoControl configuration interface Version: ECO_M_ENG_220303_E001... -
Page 14: 0-10V Active + Frequency/Pulse (Pp, Npn, Pnp) - Eco Xx-Fw-Xx-X
Operation 5.2.3. 0-10V Active + Frequency/Pulse (PP, NPN, PNP) – ECO XX-FW-XX-X Here, in addition to the frequency/pulse functionality, an active voltage output (0-10 V) is available. Fig 5: EcoControl configuration interface Version: ECO_M_ENG_220303_E001... -
Page 15: Parameterization
During parameterization the outputs cannot be used, the ECO is supplied via the communication adapter. 5.3.1. Installation of KEM EcoControl You can find the EcoControl software in the download area of the KEM website. There is an installer that installs all the necessary components on your PC/laptop. -
Page 16: Fig 7: Directly After Connection Establishment
After pressing the Connect button you should see the following picture Fig 7: directly after connection establishment Model code is displayed, if the ECO was purchased together with a sensor, rudimentary sensor information is also available (here only ECO without sensor - marked by "??"). -
Page 17: Adjustment Notes
For the best performance we recommend a calibration of current output in the interval of 5 years. The calibration can be carried out by ECO-COM.B.USB and the software KEM EcoControl directly from the customer or in our production. -
Page 18: Service
For the addresses see the last page of this document. 7. Important Informationen 7.1. Warranty For warranty refer to the general terms and conditions of KEM Küppers Elektromechanik GmbH, which can be found on the corresponding website (www.kem-kueppers.com). Version: ECO_M_ENG_220303_E001... -
Page 19: Technical Data
Power Supply 12 ... 28 VDC, regulated Current Consumption < 25 mA Frequency Range 1 ... 5000 Hz; suitable for all KEM volumetric counters Output Stages Push-Pull active, PNP, NPN NAMUR 4-20 mA passive + Freq/Puls (NPN) 0- 20 mA active + Freq/Puls (PP, NPN, PNP) - Page 20 Important Informationen Pin 1 (V ���� = ���� − 0.5���� − (940���� ∗ ���� 2500 Ω ℎ���� ���� ℎ �������� ���������������� 27 mA Pin 2, 4 28 V 12 V 28 V Pin 3 (GND) Push-Pull (PP) ���� = ���� −...
- Page 21 Important Informationen 0-10 V active + Frequency/Pulse (PP,NPN,PNP) Pin 1 (+24V) Pin 2, 4 (PP, PNP, NPN) 10 kΩ Pin 5 (U) 22 mA 25 V Pin 3 (GND) 15 V 28 V Ignition protection Product Certification Code: T100 Zulassungen ATEX / IECEx Zone1 / CAUK Ex II 2G Ex ia IIC T4T3 Gb cCSAus...
-
Page 22: Dimensional Drawings
Important Informationen 7.3. Dimensional Drawings Fig 3: Dimensional Drawings ECO Version: ECO_M_ENG_220303_E001... -
Page 23: Weee Und Rohs
Important Informationen 7.4. WEEE und RoHS The unit described herein is not subject to the WEEE directive and the corresponding national laws. At the end of life forward the unit to a specialized recycling company and do not dispose it off as domestic waste. The unit described herein fully complies with the RoHS directive. - Page 24 Deutschland Deutschland T. +49 8131 59391-100 T. +49 9941 9423-37 F. +49 8131 92604 F. +49 9941 9423-24 sales@kem-kueppers.com service@kem-kueppers.com Weitere Distributoren & Partner finden sie unter: www.kem-kueppers.com Original KEM Dokument: ECO_M_ENG_220303_E001 Copyright KEM, Änderungen und Irrtümer vorbehalten Version: ECO_M_ENG_220303_E001...
