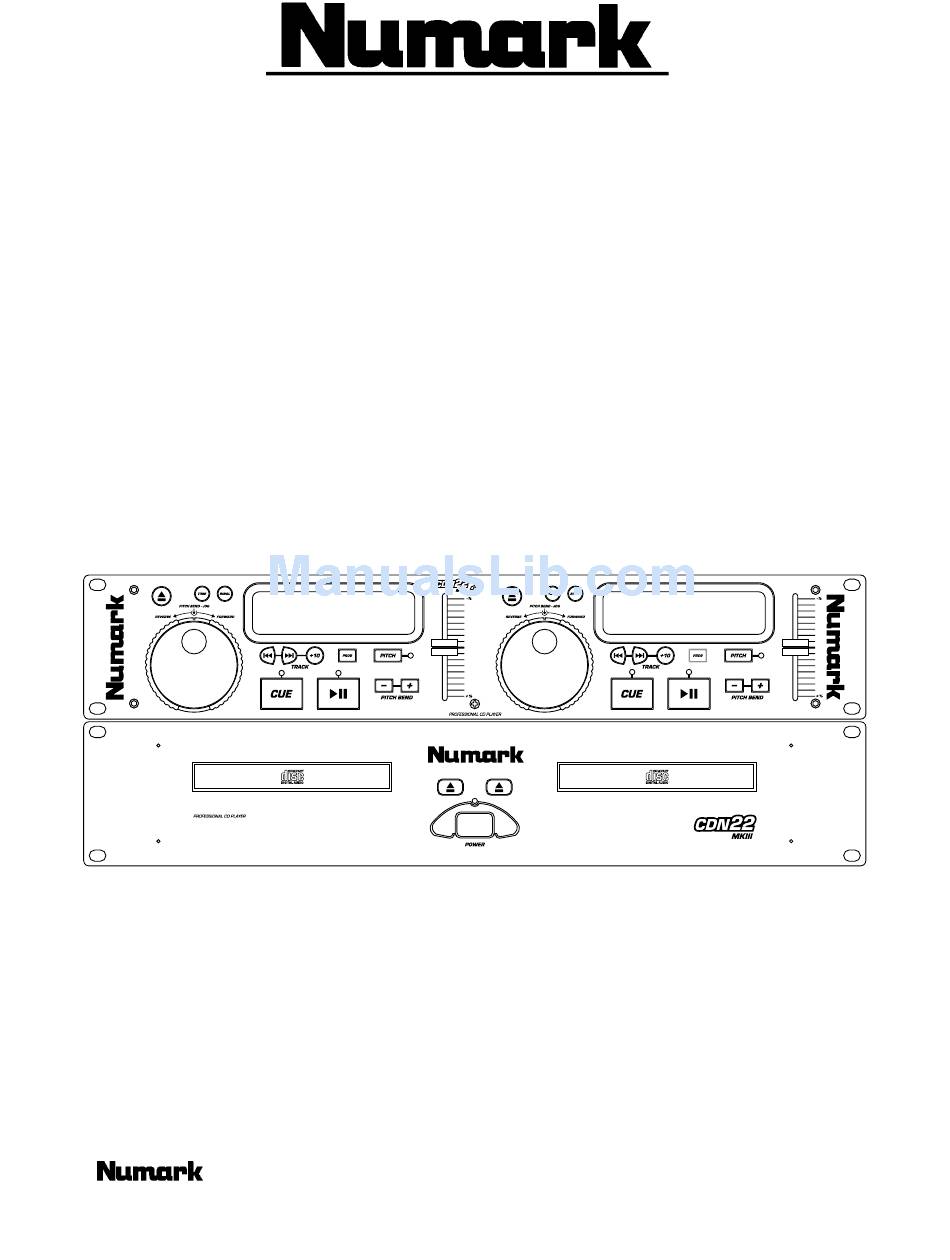

- Page 1 ® Professional Disc Jockey Products CDN-22MK III PROFESSIONAL DUAL CD PLAYER OPERATING MANUAL ©2002 Industries http://www.numark.com...
-
Page 2: Safety Instructions
CDN-22MK III Safety Information and Product Registration CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE ANY COVER. NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY. - Page 3 Please return the enclosed warranty card to register your CD player with us. MODEL: __________________________ SERIAL NUMBER:___________________ ©2002 Numark Industries NOTICE CONCERNING FCC REGULATIONS This equipment generates and uses radio frequency energy and may cause interference to radio and...
-
Page 4: Introduction
CD PLAYER WITH REMOTE CONTROLLER CONGRATULATIONS... You have just purchased a dual CD player designed specifically for the professional DJ. This unit has been designed to provide CD mixing with the same ease and creativity that you have enjoyed with records. Please take a few moments to familiarize yourself with the CDN-22 by reading the following information before attempting to operate the unit. -
Page 5: Table Of Contents
Beat Matching Using Pitch Bend Relay and Fader Start Example of Mixing Before Switching off the Power Troubleshooting Guide Information and Specifications ©2002 Numark Industries TABLE OF CONTENTS - The Leader in DJ Technology - 5 - CDN-22MK iii http://www.numark.com... -
Page 6: Cdn-22Mk Iii
CDN-22MK III CHECK TO BE SURE THE FOLLOWING ITEMS ARE IN THIS BOX: 1) DUAL-TRANSPORT PLAYER UNIT 1) REMOTE CONTROL UNIT 1) OWNERS MANUAL (THIS BOOKLET) 2) RCA CONNECTING CABLES 2) CONTROL CABLES 1) FADER START CABLE ©2002 Numark Industries... -
Page 7: Set-Up Instructions & Connections
Mount the units in your console or rack with 19” EIA rails. f) The transport should be mounted not to exceed an angle of 15 degrees. g) Your CD player can be affected by excess vibration so mount the units in a secure environment if possible. -
Page 8: Remote Control Unit
CDN-22MK III DESCRIPTION CDN-22S REMOTE FEATURES 1. PROGRAM - Depress this button and the unit will stop and the program indicator will light. Select each track to be programmed and press the PROGRAM button between selections. You can program up to 30 tracks. Press PLAY to start the program. -
Page 9: Display
4. PROGRAM - Used for preprogramming the track order to automatically be played by the unit. This is a great function if you need to leave the CD player alone. 5. TIME MODE - (Elapsed) is for showing time as it is taking place. -
Page 10: Play, Pause And Cue Operations
CDN-22MK III DESCRIPTION OF THE PLAY/PAUSE AND CUE OPERATIONS PLAY and CUE Pressing the “PLAY/PAUSE” button starts the disc. Pressing the “CUE” button will reset the disc to the last place where the disc was started. This is called the cue point. By alternately pressing the “PLAY/PAUSE”... -
Page 11: Matching The Tempo
Match the tempo by monitoring the music of both PLAYER 1 and PLAYER 2 by ear and adjusting the pitch. When the tempo of the music of the selected CD player is slow compared to the tempo of the other player, move the slider to the ( + ) side and match the tempo. When faster, move the pitch slider to the ( - ) side. -
Page 12: Relay And Fader Start
Play will stop at the end of the last track. FADER-START MODE This mode is achievable by attaching both sides of your CD player to a similarly equipped DJ mixer. 1. Connect cables between the CD remote unit and your DJ mixer. -
Page 13: Example Of Mixing
EXAMPLE OF MIXING USING BOTH PLAYERS OF YOUR CD PLAYER While playing a disc on PLAYER 1 load a disc into PLAYER 2 and select your next track, match its pitch to the track playing on PLAYER1 and when you are ready use the crossfader on your mixer to fade from PLAYER 1 to PLAYER 2. -
Page 14: Before Switching Off The Power
CDN-22MK iii BEFORE SWITCHING OFF THE POWER: When you have finished using the CD player, be sure that the disc tray is closed with the “OPEN/CLOSE” button before switching off the power . DO NOT switch off the power when the disc holder is open. -
Page 15: Information And Specifications
Control Unit: 482 (W) x 88.8 (H) x 75 (D) mm (without feet) Weight: Player Unit: 5 Kgs., 11 lbs. Control Unit: 2 Kgs., 4.4 lbs. Power Supply: Power Consumption: ©2002 Numark Industries 16-bit linear/channel, 3 beam laser 8 times 20Hz-20KHz 86dB 0.01% 94dB 2.0Vrms...
