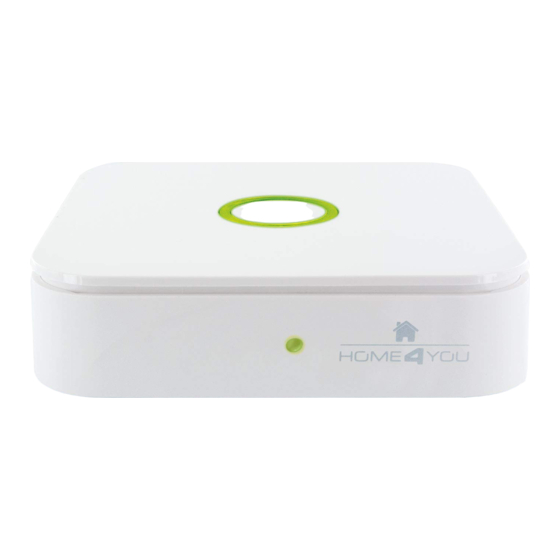

HA102
GATEWAY
CONTROL CENTER
USER MANUAL
Dimming
Blinds
SCHWAIGER
HOME

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOME4YOU HA102 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schwaiger HOME4YOU HA102

Summary of Contents for Schwaiger HOME4YOU HA102

  • Page 1 HA102 GATEWAY CONTROL CENTER USER MANUAL Dimming Blinds SCHWAIGER HOME...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. IMPORTANT SAFETY INFORMATION ......................3 2. DEVICE DESCRIPTION ........................... 4 3. INSTALLATION OF THE SCHWAIGER GATEWAY ....................5 3.1 WIFI CONFIGURATION OF THE GATEWAY ......................6 4. RESET NETWORK CONFIGURATION ........................ 7 5. RESET USER PREFERENCES ..........................7 6.

  • Page 3: Important Safety Information

    Below you will find useful operating guidelines. 1. IMPORTANT SAFETY INFORMATION Before using Schwaiger Home4You Gateway, please read the following information to avoid any potential dangers: 1. Read the instructions carefully and follow the precautions in this manual. All mains connec- tions must be carried out by a trained and qualified person 2.

  • Page 4: Device Description

    Schwaiger Home4You gateway takes central place in Home4You system. Combined with Schwaiger client (Android/iOS/HTML) applications and Schwaiger cloud service it provides a turnkey platform that covers lighting, security, safety, energy manage- ment and other aspects of the fast-growing home automation markets.

  • Page 5: Installation Of The Schwaiger Gateway

    Illustration 2: Ethernet connection Illustration 3: WiFi connection In case you have connected your gateway device to the home network router by using Ethernet cable, the installation process is done and you can proceed to the Section 4 (Configuring the Schwaiger Home4You system).

  • Page 6: Wifi Configuration Of The Gateway

    3.1 WIFI CONFIGURATION OF THE GATEWAY In case you would like to connect the gateway device to the home network router by using WiFi connection, please follow next steps: 1. After powering up, the gateway enters AP (Access Point) mode if Ethernet cable is not con- nected. In AP mode LED will blink blue.

  • Page 7: Reset Network Configuration

    4. RESET NETWORK CONFIGURATION In order to reset the network connection settings to factory defaults, please follow next steps: 1. Press back button 3 times 2. During the operation, LED will blink red 5 times per second Reset of network connection settings is followed by reset of the gateway device. If ethernet cable is connected to the gateway during boot process, gateway will automatically connect to the home network router via ethernet cable.

  • Page 8: Technical Data

    ~110 - 230V AC, 50-60Hz / 5 V DC 2 A Power Consumption < 10W Dimensions W x H x D: 108 x 26 x 108 mm 9. CONFIGURING THE SCHWAIGER HOME4YOU SYSTEM the Schwaiger HOME4YOU system consists of: • Schwaiger client application • Schwaiger Home4You gateway • Schwaiger cloud...

  • Page 9: Install Schwaiger Client Application

    Schwaiger client application is intuitive and easy to use. Its comfortable graphical user interface will smoothly guide users through the process of configuration of their space. The app can be used both in-home or remotely – it is smart enough to connect to the gateway directly if possible, to ensure the best user experience.

  • Page 10: Create User Account By Using Web Application

    8. Confirm the activation link sent in the email message 9.2.2 Create user account by using web application Please follow next steps in order to create new account: 1. Visit https://home4you.schwaiger.de CREATE ACCOUNT 2. Tap the “Don’t have an account” button on the login dialog (see Illustration 11).

  • Page 11: Add The Gateway To The User Account

    Please follow next steps in order to add the gateway to the user account: 1. Make sure that your smart phone/tablet and the gateway are active within the same network 2. Open the Schwaiger application and log into the user account 3. Select Home Setup option from the main menu (Illustration 4.

  • Page 12: Add The Gateway By Using Web Application

    9.4 HOME SETUP The user can setup its smart home by using Schwaiger client application. To setup the home, please follow next steps: 1. Make sure that your smart phone/tablet and the gateway are active within the same network 2.

  • Page 13: Device Management

    Illustration 16 Illustration 17 9. Once you are satisfied with the home configuration, tap the button to continue to Device Management section. 10. DEVICE MANAGEMENT To manage devices, the user should choose one of the following ways: 1. By using client application (recommended way to manage devices) 2.

  • Page 14: Add A Device To The Gateway

    10.1.1 Add a device to the gateway Please follow next steps in order to add a new device to the gateway: 1. Tap the “Help” button in the upper right corner 2. Select the device which you want to add to the gateway and read instructions for adding the device (Illustration 3.

  • Page 15: Update Device Name And Location

    10.1.3 Update device name and location To update device name and location, please follow next steps: 1. Tap on the device name and hold it until the “Edit” option appears 2. Tap on the “Edit” button 3. In the new dialog, change the device name and choose the device location from the drop down list 4.

  • Page 16: Devices By Type

    11.2 DEVICES BY TYPE Please follow next steps in order to control or monitor devices by type: 1. Select Device by type option in the application’s main menu 2. To filter devices by type, choose a desired type from the menu on the left side 3.

  • Page 17: Scene Management

    12. SCENE MANAGEMENT One of the main features of Schwaiger client application is scene. Scene is specific event or set of actions created by end user. Scenes can be triggered by one or more events/devices, which are called triggers. The scene can also be set to send an email notification to the user’s email address or push notification to the user’s smartphone.
  • Page 18 In case you would like to create device trigger (or triggers), please follow next steps: a. In the device trigger dialog, choose the device you want to add as a trigger b. In the drop down list, choose functionality and its value c.
  • Page 19 11. For selected action set you will be able to add following actions by pressing “Add” button in the upper right corner (Illustration 30): a. Control device by location b. Control device by type c. Send email notification d. Send push notification e.

  • Page 20: Run The Scene

    Illustration 33 Illustration 34 Illustration 35 14. Once you have set action sets/delay time you will be able to test defined scene: a. In case you are using tablet, tap the button “Test” in the upper right corner to test the scene b.

  • Page 21: Manufacturer's Information

    Our warranty is based on our warranty conditions valid at the time of purchase. Disclaimer Schwaiger GmbH does not accept any liability or warranty for damages that are sustained due to improper installation or mounting, improper use of the product or non-compliance with the safety instructions.
