HA101
GATEWAY
HOME AUTOMATION
CONTROL CENTER
USER MANUAL
Dimming
Blinds
SCHWAIGER
HOME

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HA101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schwaiger HA101

Summary of Contents for Schwaiger HA101

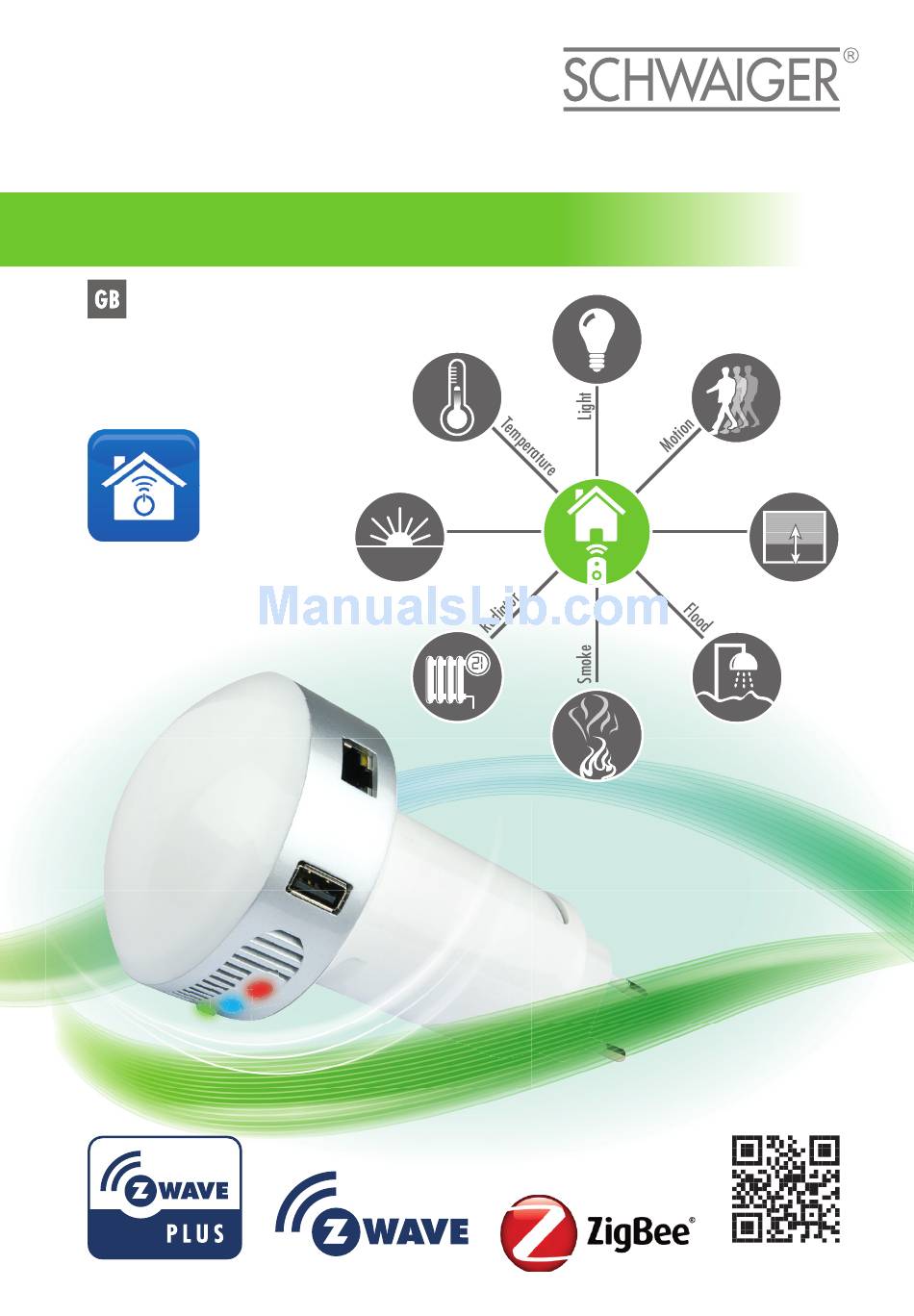

  • Page 1 HA101 GATEWAY HOME AUTOMATION CONTROL CENTER USER MANUAL Dimming Blinds SCHWAIGER HOME...
  • Page 2 Congratulations and thank you for purchasing the HA101 Schwai- ger Product. The following product description will provide you with useful information about its use. Internet: www.schwaiger.de Service-Hotline: +49 9101 702-199...

  • Page 3: Table Of Contents

    1 PRODUCT DESCRIPTION ..................4 2 HA101 GATEWAY ....................5 3 TECHNICAL INFORMATION ................. 6 4 CONFIGURING THE SCHWAIGER HOME SYSTEM ..........6 4.1 CONNECTING THE GATEWAYS TO HOME NETWORK ..........6 4.2 REGISTERING THE USER’S ACCOUNT ..............6 4.3 ADDING THE GATEWAY TO THE USER ACCOUNT ..........7 4.4 HOME-INSTAllATION ..................7...

  • Page 4: Product Description

    1 PRODUCTION DESCRIPTION The Schwaiger Home app is a complete solution for intelligent living, which uses a variety of communications options for controlling household equipment. Access to the home system is assured through the use of cloud services and the user-friendly mobile control interface.

  • Page 5: Ha101 Gateway

    The gateway is controlled from the client application, which can be downloaded to iOS 7.0 or later (Apple devices) or devices equipped with Android 4.0 or later. The app can be downloaded from the Apple Store and from Android Play, where it can be found using the Schwaiger name as the key word for searches.

  • Page 6: Technical Information

    Choose the Create New Account option on the login dialog and follow the setup wizard’s instructions. Schwaiger Home will ask for a valid email address to be entered as the user name. This email address will be used to send a link to activate the account. Additional legal information will be provided after tapping on the General Business Terms and Conditions and Data Protection Provisions link.

  • Page 7: Adding The Gateway To The User Account

    Either a mobile application or a cloud service can be used to associate a gateway with a user account. To make the association using a mobile application, open the Schwaiger Home app and log into the user account. Select the Home Installation option from the main menu. On the subsequent Home Installation screen, select the Add Gateway option in the upper right corner.

  • Page 8: Managing Z-Wave-Components

    In this step, the user can add new devices by tapping the Find Devices button. This action will place all networks in a mode, which can add devices. Read the operating instructions for the selected components to do so. From the same screen, devices can be removed by tapping the device and holding it for a longer time, and then selecting the Delete option (regarding this, see the respective operating instructions).

  • Page 9: Ha101 Button Assignments

    30 seconds will reset to the factory settings. 4.8 HA101 Button Assignments The HA101 gateway has 3 buttons (numbered in sequence), which have each been assigned an lED. Certain features will be activated by tapping and holding the button for longer periods of time.

  • Page 10: Client Application Manual

    5 CLIENT APPLICATION MANUAL 5.1 ACCOUNT MANAGEMENT 5.1.1 Creating a new account Ill. 1 Ill. 2 1. Tap the Create New Account button on the login dialog (see Ill. 1) 2. Enter a valid email address and the password on the login dialog. An activation link will be sent to the specified email address (see Ill.
  • Page 11 Ill. 3 Ill. 4 4. Enter the account details and tap the button. Entries indicated by an asterisk (*) are mandatory entries. All other entries can also be filled in later (see Ill. 3) 5. Enter the your personal information and tap the button to close the wizard (see Ill.

  • Page 12: Updating Account Information

    5.1.2 Updating account information Ill. 5 Ill. 6 1. To update the user account information, tap the user icon in the upper right corner of the main menu and select the Account Settings option. 2. The Account Settings wizard will be started. 3.
  • Page 13 Ill. 7 Ill. 8 4. Information about the account details can be changed in the second step. All of the entries are optional. To continue to the third step for updating personal information, tap the button. 5. Personal information can be updated in the third step. All of the entries indicated with an asterisk (*) are mandatory fields.

  • Page 14: Home Configuration

    5.2 HOME CONFIGURATION 5.2.1 Adding a gateway to the account Ill. 9 Ill. 10...
  • Page 15 Ill. 11 Each account can register more than one gateway. Follow these steps to add a gateway. 1. log into the account that should register the new gateway. 2. Select the Home Installation menu option to open a list of the gateways associated with the account (see Ill.

  • Page 16: Removing A Gateway From An Account

    5.2.2 Removing a gateway from an account Ill. 12 Ill. 13 Follow these steps to remove a gateway properly. 1. Start the mobile app. 2. Select the Home Installation menu option to open a list of the gateways associated with the account. 3.

  • Page 17: Home Installation

    5.2.3 Home installation Ill. 14 Configuration of the home network uses the Home Installation wizard, as explained in 5.2.1. The home gateway must be in the same network as smartphone tablet. The home as- signments and device management can be configured using the following options.

  • Page 18: Device Management

    5.2.4 Device management Ill. 16 Ill. 17 To add a new device, follow Steps 1 through 9 from Section 5.2.3 to open the Home Instal- lation wizard. To continue directly with the device configuration step, select the Find Devices Section 5.2.4.1. option, as described in In that manner, new devices can be added, existing devices removed, devices from the previous network removed, network switch settings made...
  • Page 19 Ill. 18 Ill. 19...

  • Page 20: Adding A New Device

    5.2.4.1 Adding a new device Please note, that the distance between the gateway and the clients shall not be more than 0.5 meters during integrating in/excluding from the network. 1. To add a device, tap the Find Devices button. This action will open a new window for integrating the device.

  • Page 21: Setting The Timeframe For Registration & Deregistration

    5.2.4.6 Setting the timeframe for registration & deregistration 1. Open the Settings menu from the Device Configuration screen in the upper right cor- ner and select Deactivate Network. 2. When the dialog is displayed, enter the descried timeframe for the duration in seconds. 3.

  • Page 22: Controlling Devices By Location

    5.3.2 Controlling devices by location Ill. 21 1. Select the Device by location option on the application’s main menu. 2. To filter devices by type, choose a location from the menu on the left. 3. To release the filter, tap the home icon in the upper left corner. 4.

  • Page 23: Advanced Device Configuration

    5.3.3 Advanced device configuration Ill. 22 b 1. Select the Device by Type or Device by location options on the application’s main menu. 2. Find the device and tap the device button and hold it to open the Advanced Device Configuration dialog.

  • Page 24: Creating New Scenarios

    5.4.1 Creating New Scenarios Ill. 23 Ill. 24 1. To open the Scenario Configuration screen, tap the Scenarios option on the main ap- plication screen. 2. Tap the Add Scenario option in the upper right corner on the Scenario Configuration screen.
  • Page 25 Ill. 25 Ill. 26 Adding triggers 3. To add a new device trigger to a scenario, tap the Add option in the upper right corner (see Ill. 23) and select the device or time trigger. a. On the Device Trigger dialog, choose the drive function that should activate the scenario.

  • Page 26: Executing A Scenario

    4. To add a new time trigger to a scenario, tap the Add option in the upper right corner (see the bottom right of the screen in Illustration 25) and choose the Time Trigger option. a. Select the activation time on the Time Trigger dialog. b.

  • Page 27: Editing A Scenario

    5.4.3 Editing a scenario 4. Select the Scenarios option from the main menu to open a list of available scenarios. 5. Tap the scenario button and hold it to open the options menu. Select the Edit option. 6. A wizard will be opened. Follow steps 3 through 13 from Section 5.4.1.

  • Page 28: Compatible Components

    SENSORS YOUR PERSONAL SECURITY COMPATIBLE SENSORS FROM THE SCHWAIGER HOME AUTOMATION SERIES 4 in 1 multi-sensor 3 in 1 multi-sensor • Movement - temperature - • Movement - temperature - light humidity - light • Can be used to control scenarios.
  • Page 29 ZHD 01 CLIENT HDMI™ TV STICK HAUPTTEXT remote control incl. Client The SCHWAIGER HDMI TV Stick is ® a receiver or controller for your TV. With the stick the user interface for controlling the Gateway is displayed on the screen. You can perform all the settings on your TV with the included remote.
  • Page 30 ACTUATORS YOUR PERSONAL HELPERS HAUPTTEXT COMPATIBLE ACTUATORS FROM THE SCHWAIGER HOME AUTOMATION SERIES 1-way/2-way Adapter plug as switches wireless wall switch • Switching connected devices on and off, e.g. for lawn irrigation or water • Control of programmed scenarios fountains • Switch can easily be attached to any...
  • Page 31 Thermostatic radiator Blind module • Module for temperature control of • Control of roller and garage doors, radiators awnings or blinds using the mini remote control or app • For valves with RA connections (30 x 1.5) or RAK (Danfoss snap fastener) • Integrated load measurement for automatic calibration • Operation via pushbutton or...

  • Page 32: Important Safety Information

    IMPORTANT SAFETY INFORMATION! Installation must be carried out by competent persons. Before setting up and first using the unit, please read and follow the safety instructions carefully. Safety and installation information All of our products at the time of purchase conform to the currently applicable safety regula- tions and are, when used as intended, completely safe! Please heed the following information to avoid any potential dangers, damage or faults: Set-up information...
  • Page 33 2004/108 EC for EMC and 2006/95 EC for lVD. EC Declaration of Conformity „Hereby Schwaiger GmbH declares that the product HA101 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5//EC.“ The Declaration of Con- formity can be found at the following address: http://www.schwaiger.de/downloads...
  • Page 34 MANUFACUTRER’S INFORMATION Dear customer Should you require any technical support and not be able to get it at your specialist dealer’s, please contact our technical support team. Schwaiger GmbH Würzburger Straße 17 90579 langenzenn Hotline: +49 (0) 9101 702-199 www.schwaiger.de homeautomation@schwaiger.de...
