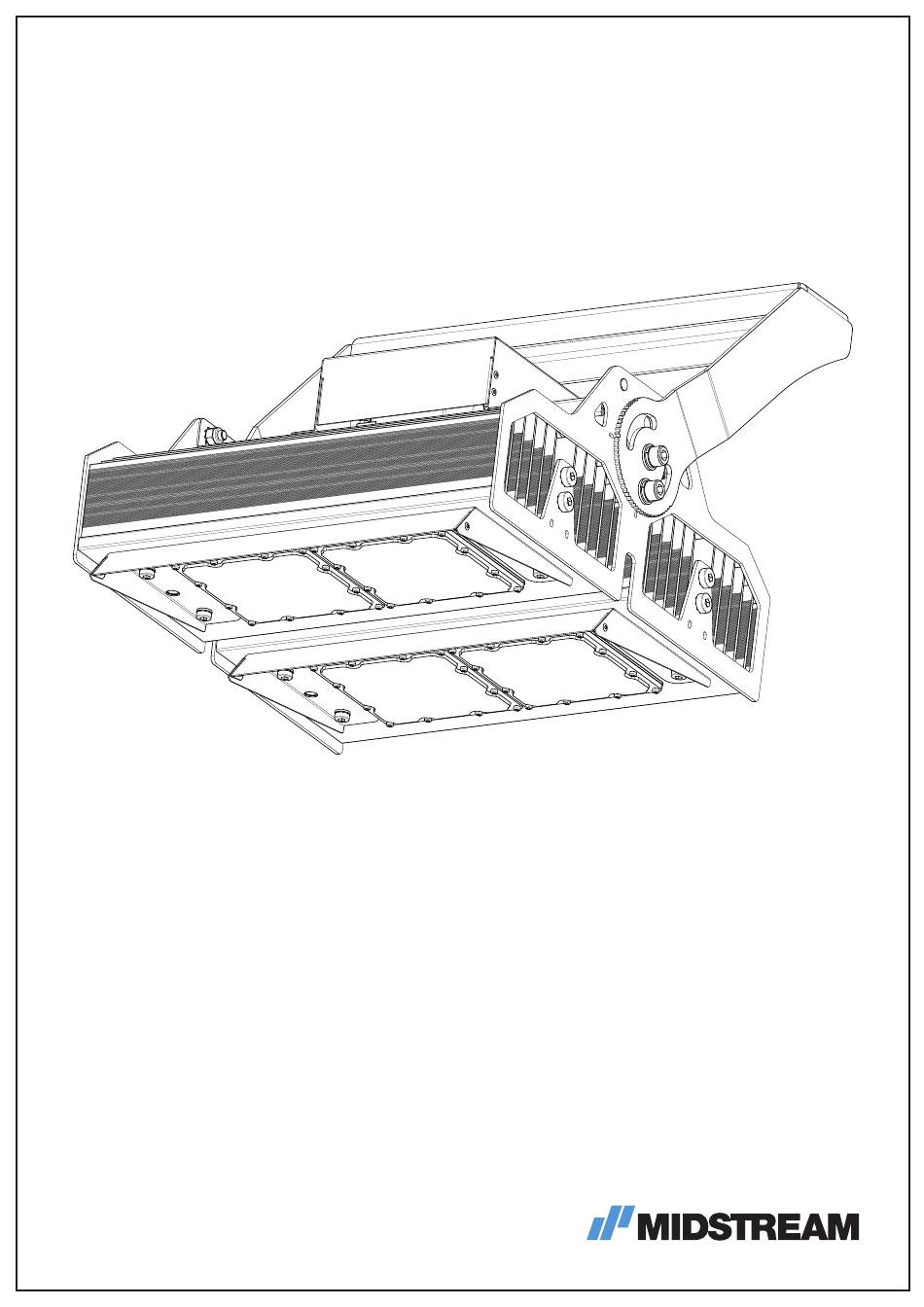

- Page 1 Modus R 1000 INSTALLATION GUIDANCE v1.0...
-
Page 2: Table Of Contents
Electrician scissors for wires Ph2 screwdriver Slotted manual screwdriver for connector’s screws (blade dimensions: 3.5(w) x 0.6(t)mm) Wire stripping pliers DO NOT USE PERCUSSION DRILLS! MODUS R 1000 INSTALLATION GUIDANCE midstreamlighting.com call +44 (0) 207 584 8310... -
Page 3: Safety Instructions
MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph +44 207 584 8310 This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent. -
Page 4: Bracket Mounting And Aiming
MIDSTREAM LIGHTING LTD - 1 CHESHAM STREET - LONDON - SW1X 8ND - UNITED KINGDOM - Ph +44 207 584 8310 This drawing is property of MIDSTREAM LIGHTING LTD. All rights reserved the partial or total reproduction of it is forbidden without express consent. -
Page 5: Floodlight Connection
Remove the 2 countersunk screws to remove the junction box lid. Insert the cable for the floodlight through the cable gland. Remove the cable sheath for 65 mm to facilitate connection of the wires. MODUS R 1000 INSTALLATION GUIDANCE midstreamlighting.com call +44 (0) 207 584 8310... - Page 6 To connect the accessory provided (cable + plug connector) to the junction box, remove the junction box cover and the junction box lid. Untighten the cable gland with the plastic cap and remove it. SECTION XSEC0001-XSEC0001 SCALE 2:1 MODUS R 1000 INSTALLATION GUIDANCE midstreamlighting.com call +44 (0) 207 584 8310...
- Page 7 - 5 to 8 connection. If unlocking is required, use a screwdriver to times of the diameter of the cable. pull the clip to an unlocked position. MODUS R 1000 INSTALLATION GUIDANCE midstreamlighting.com call +44 (0) 207 584 8310...
- Page 8 Do not bend the cables more than the minimum bending radius - 5 to 8 times of the diameter of the cable. The cable coming directly from the drivers OUTPUT MODUS R 1000 INSTALLATION GUIDANCE midstreamlighting.com call +44 (0) 207 584 8310...
-
Page 9: Power Supply Connection
(to floodlight) Connect the YELLOW-GREEN wire to the 5-way WAGO terminal. Close the void position as well, even if there is no wire connected. OUTPUT CABLE (to floodlight) MODUS R 1000 INSTALLATION GUIDANCE midstreamlighting.com call +44 (0) 207 584 8310... -
Page 10: Control Connection Dali
Gasket must be properly positioned to create seal Remove the plastic cap to plug the control cable (2 poles, yellow connector). MODUS R 1000 INSTALLATION GUIDANCE midstreamlighting.com call +44 (0) 207 584 8310... -
Page 11: Control Connection 0-10V
(dimming +), grey (dimming - ) and black & white (12V aux). The connection has to be done in such a way that the 3 wires match these poles inside your cabinet: Purple Dimming + Grey Dimming - Black & White 12 V Auxiliary output voltage (only if needed) MODUS R 1000 INSTALLATION GUIDANCE midstreamlighting.com call +44 (0) 207 584 8310... -
Page 12: Driver/Floodlight Pairing
12. Driver/floodlight pairing 15. Dimensions Drivers may have a different current set-up according to When you need to install multiple Midstream remote drivers and different models of floodlights with a different the version / power of the floodlight. power range, please make sure you pair the floodlight A label on the product box identifies the item with which with its correct driver. - Page 13 For translations, digital versions or more information go to www.midstreamlighting.com/installation-guides European HQ Midstream Ltd. Wessex House, 1 Chesham Street, London SW1X 8ND, United Kingdom Telephone: +44 207 584 8310 Email: info@midstreamlighting.com US HQ Midstream Lighting Ltd. 66 West Flagler Street, Miami, FL 33130, USA Telephone: (888) 549-6775 Email: info@midstreamlighting.com...
