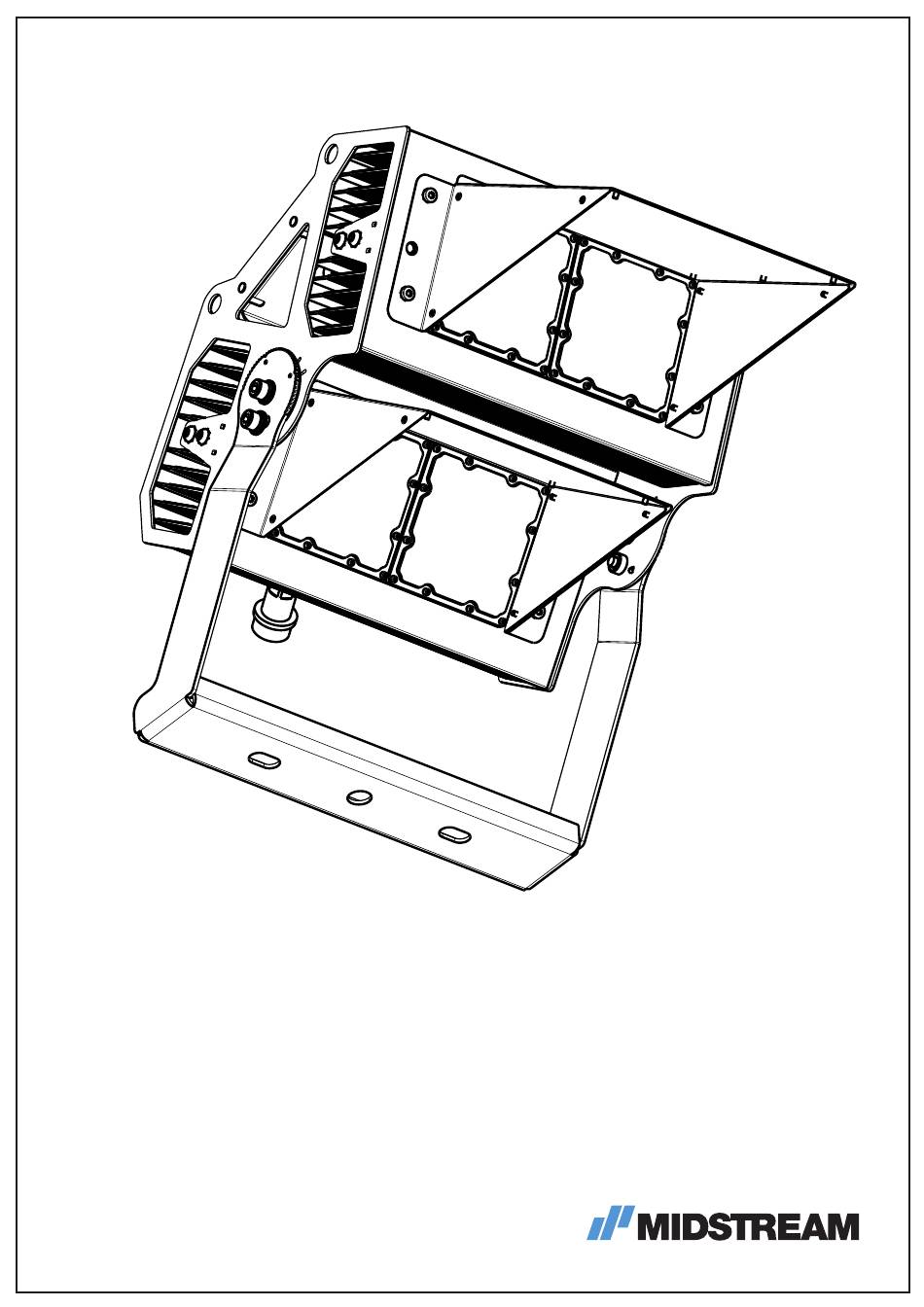

- Page 1 Modus S Series INSTALLATION GUIDANCE v3.0...
-
Page 2: Table Of Contents
1. General notes Contents Section PAGE This user manual contains important information on safe operation of the Luminaire. General notes Read and follow all safety notes and all instructions. Save this manual for future reference. Safety instructions Make sure that it is available to all persons using this device. Contents All wiring should be done by a licensed electrician in accordance with state codes, local codes, and National Bracket mounting and aiming... -
Page 3: Safety Instructions
2. Safety instructions 3. Contents Use the device only as described in this user manual. improper installation. Any other use or use under other operating conditions Only persons with sufficient physical, sensory, and is considered to be improper and may result in personal intellectual abilities and having corresponding knowledge injury or property damage as well as voiding the warranty. -
Page 4: Bracket Mounting And Aiming
Connect the safety cable to the holding frame with the tilt has increased/decreased by 2,5°. s drawing is property of MIDSTREAM LIGHTING Ltd. All rights reserved the partial or total reproduction of it is forbidden without express consent. at least 10A cable. - Page 5 6a. Floodlight connection - outdoor driver 6a. Floodlight connection Stripping the cable Strip one end of the floodlight connection cable to a length of circa 30 mm; then expose the conductors 9 (The cable from the driver to the floodlight is not supplied, the cable used must be a rubber cable H05RN-F or equivalent.) The device has a type Y attachment.
- Page 6 6a. Floodlight connection 6a. Floodlight connection Stripping the cable Insert the cable through the connector housing. The socket has L, N, earth symbols. Match as follows: Live BROWN wire Neutral BLUE wire Earth symbol YELLOW/GREEN wire. CH 24 mm Insert the exposed wires in the plug and tighten each screw.
- Page 7 6a. Floodlight connection - Outdoor driver 6b. Power supply connection - Outdoor driver Connecting the WAGO terminals Remove the cable sheath for a length of 60 mm, expose the conductor for 9 mm and insert the mains cable Connect the YELLOW-GREEN wire to the 5-way WAGO terminal. through the cable gland without the adapter.
- Page 8 6b. Power supply connection - Outdoor driver 6c. Control connection - DALI - Outdoor driver Checking the gasket Strip the rubber jacket of the cable, expose 25 mm of conductors. Mount the TH384 – socket connector. Check the gasket is properly positioned inside the lid, then close the junction box. Match Secure it with 4 countersunk screws (tighten them in the order shown).
-
Page 9: Cabinet Driver
6c. Control connection 0-10V - Outdoor driver 6d. Cabinet driver Strip the rubber jacket of the cable, expose 25 mm of conductors. Mount the TH384 – socket connector. Match BROWN conductor (Dimming + pole) BLUE conductor (Dimming - pole) Ground pole with the 12 V+ wire. -
Page 10: Electrical Specifications
7. Electrical specifications 9. Dimensions Modus S 900 Modus S 1100 Input Voltage 200-480 Vac 200-480 Vac Input Frequency 50 – 60 Hz 50 – 60 Hz Absorbed Power 999 W 1180 W Power Factor 0.97 0.97 37.5 A s - for 1.18 ms* 37.5 A s - for 1.18 ms* Inrush Current (I2t) - Page 11 For translations, digital versions or more information please head to www.midstreamlighting.com/installation-guides European HQ Midstream Ltd. Wessex House, 1 Chesham Street, London SW1X 8ND, United Kingdom Telephone: +44 207 584 8310 Email: info@midstreamlighting.com US HQ Midstream Lighting Ltd. 66 West Flagler Street, Miami, FL 33130, USA Telephone: (888) 549-6775 Email: info@midstreamlighting.com...
